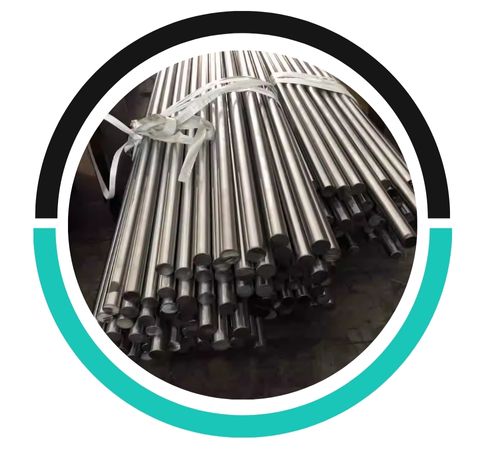

Louis Metals, a reliable stainless steel supplier and manufacturer located in Houston, USA, proudly offers top-notch Stainless Steel 316Ti Bars and Rods designed for outstanding performance in high-temperature and corrosive settings. The 316Ti variant is a titanium-stabilized form of 316 stainless steel, providing improved resistance to intergranular corrosion and stress cracking, particularly after welding or extended heat exposure. Perfect for chemical processing, marine, and thermal applications, our 316Ti bars and rods comply with stringent ASTM/ASME standards. At Louis Metals, we provide both custom and standard sizing options, ensuring dependable, high-strength stainless steel solutions for essential industrial and engineering needs.
Stainless Steel 316Ti Bars and Rods consist of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a stabilizing amount of titanium (usually around 0.5%) to inhibit carbide formation. This alloy also has a maximum carbon content of 0.08%, which contributes to its excellent weldability and high-temperature strength. With a tensile strength ranging from 515–750 MPa, a yield strength of about 205 MPa, and Brinell hardness between 150–200 HB, 316Ti is known for its resistance to pitting, crevice corrosion, and scaling at elevated temperatures (up to 900°C / 1650°F), making it perfect for challenging thermal and corrosive environments.
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Specification : ASTM A276, A479 / ASME SA276, SA479
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Length : 1 to 6 Meters, Custom Cut Lengths
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle Etc.
|
C |
Ni |
Mn |
P |
S |
Si |
Cr |
Mo |
|
|---|---|---|---|---|---|---|---|---|
|
MIN |
0.040 |
10.000 |
– |
– |
– |
– |
16.000 |
2.000 |
|
MAX |
0.100 |
14.000 |
2.000 |
0.040 |
0.030 |
1.000 |
18.000 |
3.000 |
|
Yield Strength
0.2% Proof
(MPa) |
Tensile strength
(MPa)
|
Elongation
(% in 50mm) |
Hardness (HRB) | |
|---|---|---|---|---|
|
MIN |
170 |
485 |
40.00 |
|
|
MAX |
95 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 08Ch17N13M2T | 320S31 | Z6CNDT17‐12 | X6CrNiMoTi17-12-2 |
We manufacture Stainless Steel 316Ti bars and rods that can serve industrial applications. They have corrosion resistance owing to titanium stabilization and are most suitable for applications in chemical processing, petrochemical plants, and heat exchangers. They can withstand extreme temperature and exposure to acids and chlorides, making them suitable for marine equipment and facilities for power generation. They are also used across food processing, pharmaceutical equipment, and building projects that require durability with time. At Louis Metals, we tailor our products to suit your industry needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
