Luois Metals stands out as a reliable manufacturer and supplier of **Hastelloy X Bars and Rods**, proudly based in Houston, USA. We focus on providing high-performance nickel-based alloys that are designed to thrive in extreme temperatures and corrosive environments. Hastelloy X is a solid-solution-strengthened alloy celebrated for its remarkable oxidation resistance, impressive high-temperature strength, and excellent fabricability. Our selection of Hastelloy X bars and rods comes in various sizes and heat treatment conditions, making them perfect for critical applications in aerospace, chemical processing, and industrial furnaces. At Luois Metals, we prioritize product consistency, dimensional accuracy, and dependable delivery to meet the needs of modern engineering.
When it comes to composition, **Hastelloy X Bars and Rods** are primarily made of nickel, with notable amounts of chromium (20.5–23%), iron (17–20%), molybdenum (8–10%), and trace elements like cobalt. This well-balanced mix gives the alloy impressive strength and oxidation resistance, even at temperatures reaching 1200°C (2200°F). It retains good ductility after extended exposure to high heat and shows exceptional resistance to stress-corrosion cracking and carburization. Plus, Hastelloy X is highly weldable and can be shaped into complex forms without losing its mechanical integrity, making it a top choice for high-temperature applications.
| Standards : | ASTM B572, ASME SB572 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

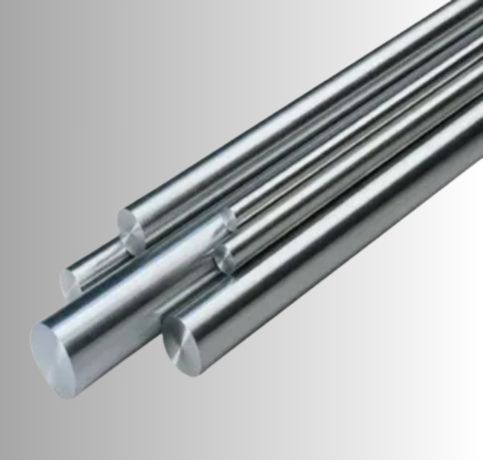

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

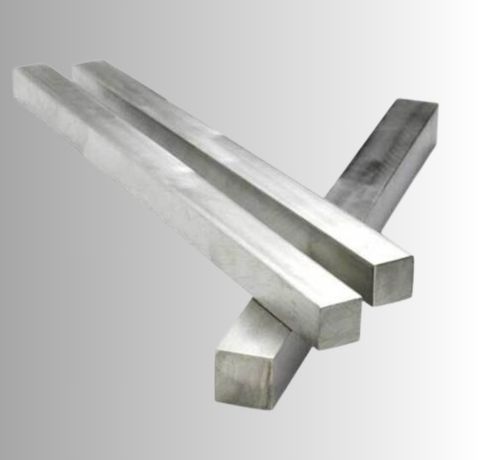

| Square bar size : | 4 to 100mm |

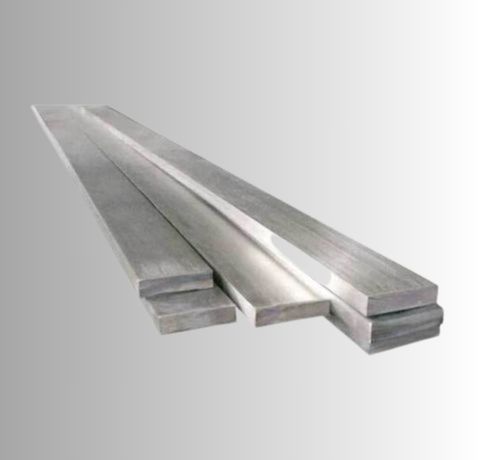

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | C0 | S | Fe | Ni | Cr | Mo | P |
| Hastelloy X | 0.05 – 0.15 | 1.00 max | 1.00 max | 0.50 – 2.50 | 0.03 max | 17.00 – 20.00 | Balance | 20.50 – 23.00 | 8.00 – 10.00 | 0.04 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm³ | 1355°C | 655 MPa | 240 MPa | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
Hastelloy X rods are typically available in sizes ranging from 1/8" to 6" in diameter, with custom sizes also offered. Common finishes include hot-rolled, cold-drawn, and polished finishes to suit various applications.
Yes, Hastelloy X rods can be welded using standard welding techniques. They require careful control of heat and welding parameters to maintain their high-temperature resistance and strength.
Hastelloy X bars are known for their exceptional high-temperature strength, oxidation resistance, and excellent resistance to thermal-fatigue and stress-corrosion cracking. They also offer excellent weldability and formability for demanding applications.
These bars and rods find their place in jet engine components, aircraft exhaust systems, afterburners, and parts for industrial furnaces, all thanks to their ability to withstand high temperatures and resist corrosion. In the chemical and petrochemical sectors, Hastelloy X is utilized in heat exchangers, pressure vessels, and reactors that operate under harsh thermal and chemical conditions. Its strength and durability also make it a great fit for power generation equipment. Luois Metals offers Hastelloy X Bars and Rods in customized lengths and diameters to suit your specific needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
