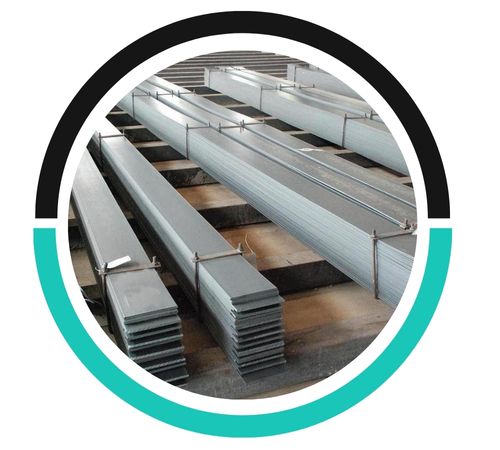

Louis Metals proudly offers Titanium Flat Bars from our Houston, USA location, servicing industries that demand superior material performance. Our flat bars are produced with precise attention to excellent surface finish, uniform thickness, and dimensional tolerance. In a range of grades, the Titanium Flat Bars are corrosion-resistant, lightweight, and suitable for structural, fabrication, and high-temperature applications. As metallurgical experts with decades of experience, Louis Metals guarantees every product conforming to customers’ needs and international standards. Our dedication to quality, on-time delivery, and technical knowledge positions us as a foremost provider of titanium solutions for rigorous engineering applications.
The Titanium Flat Bars come in Grades 2 and 5 and have mechanical properties engineered for strength, formability, and corrosion and oxidation resistance. Grade 2 has good ductility and moderate strength (~350 MPa), whereas Grade 5 has high tensile strength (~950 MPa) and hardness. These bars exhibit excellent strength against chlorides, acids, and heat. Flat geometry provides even load distribution and ease of fabrication. The low density of titanium but high strength makes these bars a safe bet for precision machining and structural applications in hostile or weight-conscious environments.
| Standard | ASTM B348, ASME B348, ASTM B863, ASTM F67, ASTM F136 |
| Application | Industrial and Medical |
| Shape | Flat |
| size | Dia 5.0~350 X ≤ 6000 |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr23,Ti15333 |
| Density | 4.53 g/cm3 |
| Techniques | Forged,Rolled, Extrusion |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Technique | TC4 Titanium Alloy Hot Rolled, Cold Rolled, Cold Drawn, Forged |
Hardness, Brinell | 120 | 120 | annealed |
Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
Hardness, Rockwell B | 70 | 70 | annealed |
Hardness, Vickers | 122 | 122 | Estimated from Brinell |
Tensile Strength, Ultimate | 240 MPa | 34800 psi | – |
Tensile Strength, Yield | 170 – 310 MPa | 24700 – 45000 psi | – |
Elongation at Break | 24 % | 24 % | – |
Reduction of Area | 35 % | 35 % | – |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | – |
Poisson’s Ratio | 0.37 | 0.37 | – |
Charpy Impact | 310 J | 229 ft-lb | V-notch |
Shear Modulus | 45 GPa | 6530 ksi | – |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Titanium Flat Bars are commonly used in the aerospace, medical, and chemical industries for components like frames, brackets, and heat exchangers due to their strength and corrosion resistance.
Yes, Titanium Flat Bars can be welded, but they require precise control over heat to avoid contamination and maintain the material’s strength and corrosion resistance.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.louismetals.us
Titanium Flat Bars are used widely in aerospace, marine, medical, and industrial applications. Their flat profile is well suited for load-carrying members like supports, braces, and brackets in structural units. In medicine, they are employed in orthopedic plates and surgical instruments. In desalination plants and chemical processing, the corrosion resistance of titanium provides long-term dependability. Their long service life in saltwater applications makes them appreciated by marine engineers for deck fittings and reinforcements. They are also widely used in automotive and architectural design for lightweight structure components. They have a high formability, resistance to corrosion, and strength, making them flexible for specific fabrication requirements.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
