Louis Metals is a top supplier and producer of Titanium Grade 12 Bars and Rods in Houston, USA. Grade 12 titanium (Ti-0.3Mo-0.8Ni) is a corrosion-resistant alloy that is characterized by high strength, superior weldability, and superior crevice corrosion resistance in hot, acidic, and high-chloride environments. Louis Metals provides premium–quality titanium products that exceed the highest standards of specifications for industrial and chemical process applications. From small-diameter rods to large structural bars, our experts provide quick delivery, precision machining, and quality control. Count on Louis Metals for reliable Grade 12 titanium solutions for demanding working conditions.
Titanium Grade 12 has about 0.3% molybdenum and 0.8% nickel, providing better corrosion resistance and mechanical properties. It has high tensile strength (~483 MPa) and yield strength (~345 MPa), and also maintains good ductility and impact resistance. Grade 12 has excellent weldability and formability. Its high resistance to crevice and pitting corrosion renders it an ideal material for high-temperature conditions and aggressive chemicals, especially acidic and chloride-based media. The strength-to-weight ratio and corrosion resistance of this alloy enable it to function well in industrial and marine environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

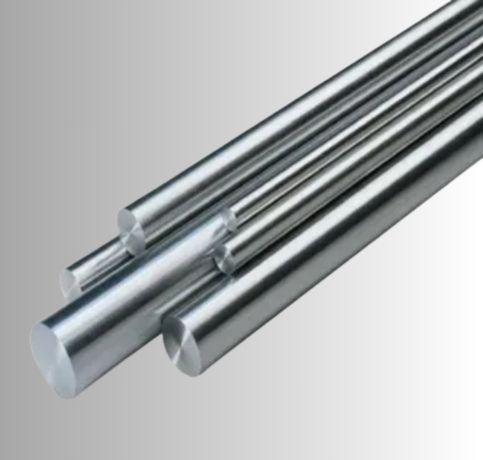

| Round bar size : | Diameter: 3-~800mm |

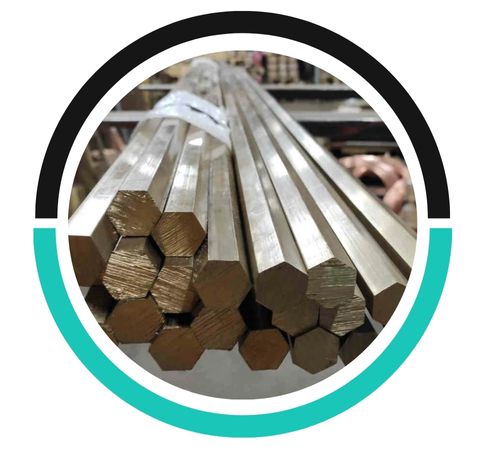

| Hex Bar size : | 2-100mm A/F |

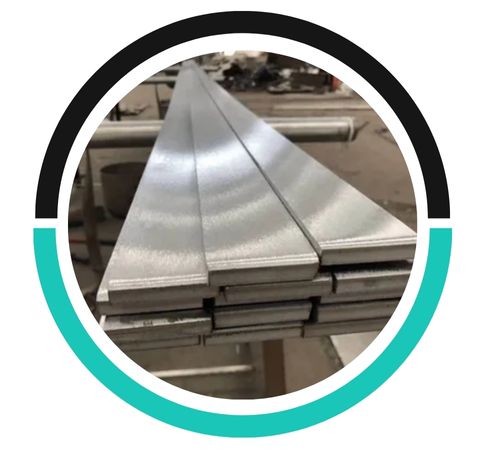

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

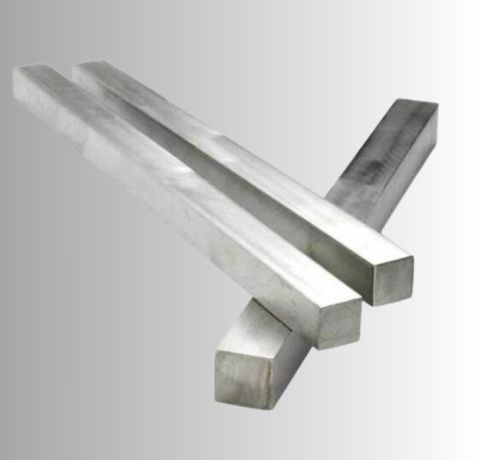

| Square bar size : | 4 to 100mm |

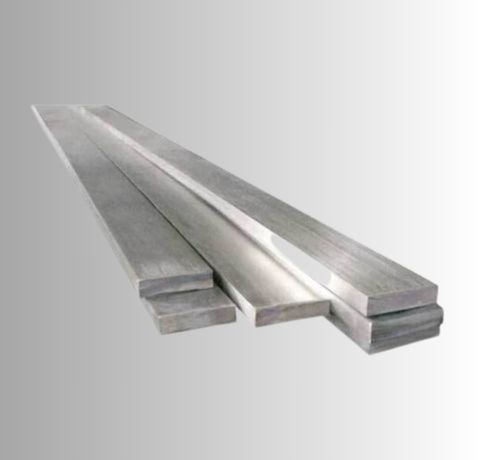

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

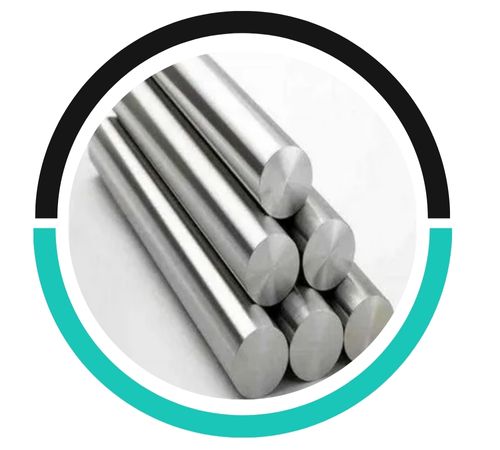

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 offers excellent resistance to corrosion, especially in oxidizing and mildly reducing environments, and is highly durable in seawater and chemical processing conditions.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.louismetals.us
Yes, Titanium Grade 12 exhibits remarkable high-temperature resistance, making it suitable for use in power generation and industrial processes that involve elevated temperatures.
Titanium Grade 12 Bars/Rods find extensive applications in chemical processing, offshore drilling, power generation, and heat exchanger systems. Their resistance to hot brine, hydrochloric acid, and wet chlorine gas render them suitable for aggressive chemical processing conditions. Grade 12 titanium is also appropriate for flue gas desulfurization equipment and seawater immersion because of its high corrosion and crevice resistance. Its high weldability makes it suitable for use in tanks, pipe, and structural items. Louis Metals offers this alloy in a variety of dimensions, prepared to satisfy the requirements of demanding high-performance industrial processes.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
