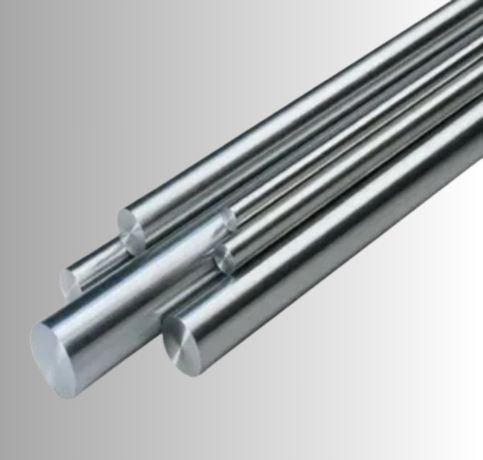

Louis Metals is a reliable manufacturer and supplier of high-grade Titanium Grade 6 Bars and Rods in Houston, USA. Titanium Grade 6 (Ti-5Al-2.5Sn) is an alpha alloy with exceptional weldability, average strength, and excellent corrosion resistance. Louis Metals manufactures these bars to aerospace, marine, and industrial standards, offering uncompromised dimensional accuracy and metallurgical uniformity. Regardless of whether for defense alloys or high-performance aerospace alloys, our Grade 6 titanium rods are designed to withstand high-stress, high-temperature applications. With quick shipping and customized lengths, Louis Metals is your one–stop source for Grade 6 titanium bars and rods.
Titanium Grade 6 consists of about 5% aluminum and 2.5% tin with the remainder being titanium. It has good mechanical properties with a tensile strength of approximately 860 MPa and a yield strength of 790 MPa. The alloy has good creep resistance at high temperature and is further characterized by superior oxidation resistance up to 500°C. Grade 6 has good weldability and average formability. Its structure is mainly composed of the alpha phase, providing it with good thermal stability and suitability for high-temperature aerospace and chemical industries.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.louismetals.us
Titanium Grade 6 Bars and Rods provide excellent strength-to-weight ratio, outstanding corrosion resistance, high-temperature stability, and good formability, making them ideal for high-performance applications.
Titanium Grade 6 Bars and Rods offer superior strength, corrosion resistance, and weldability, along with excellent performance in high-temperature and aggressive environments, making them suitable for critical industrial applications.
Titanium Grade 6 Bars/Rods have widespread applications in aerospace structures, turbine engine parts, and chemical processing systems at high temperatures. Their high strength-to-weight ratio and thermal stability render them applicable to jet engines, airframes, and space components. They are also utilized in ocean equipment in which saltwater corrosion resistance is vital. Grade 6 titanium‘s excellent weldability enables secure performance in welded pressure vessels and exhaust components. In medicine, it’s sometimes utilized for surgical implants and instruments because of its biocompatibility and strength. Louis Metals supplies precision-finished bars to accommodate these various performance demands.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
