Louis Metals is pleased to offer Titanium Grade 1 Bars and Rods, featuring un parallelled corrosion resistance and formability from our Houston, USA plant. Grade 1 is the most ductile and soft among all commercially pure titanium grades. It is best for uses requiring high weldability, impact strength, and chemical durability over a long period of time. Our Grade 1 titanium bars are produced with superior surface finish and dimensional tolerance, useable in marine, chemical, and medical applications. At Louis Metals, we guarantee all products to meet ASTM B348 specifications and go through rigorous quality checks to adhere to our customers‘ precise requirements.
Our Titanium Grade 1 Bars and Rods consist of more than 99.5% pure titanium with minute traces of oxygen, iron, and nitrogen. This grade provides superior corrosion resistance in oxidizing and reducing environments. It exhibits a tensile strength of ~240 MPa, yield strength of ~170 MPa, and excellent ductility. Grade 1 titanium is not magnetic, light in weight, and possesses a high melting point (~1660°C). Its low density (4.51 g/cm³) and high elongation (~24%) facilitate ease of forming, welding, and machining. These characteristics render it ideal for use in applications where corrosion resistance and flexibility are paramount.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

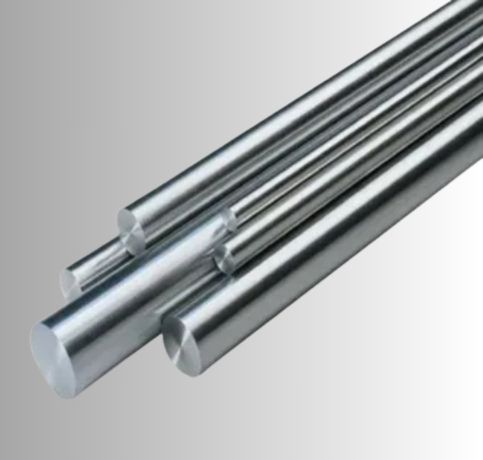

| Round bar size : | Diameter: 3-~800mm |

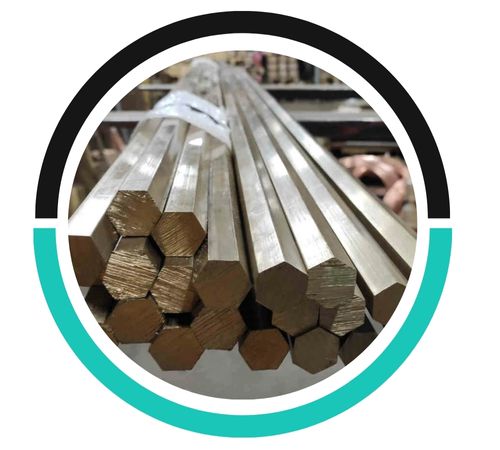

| Hex Bar size : | 2-100mm A/F |

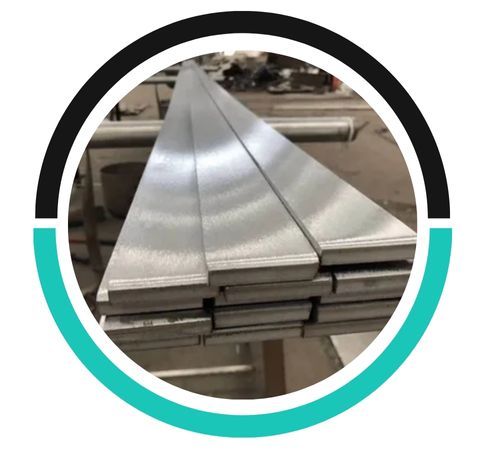

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

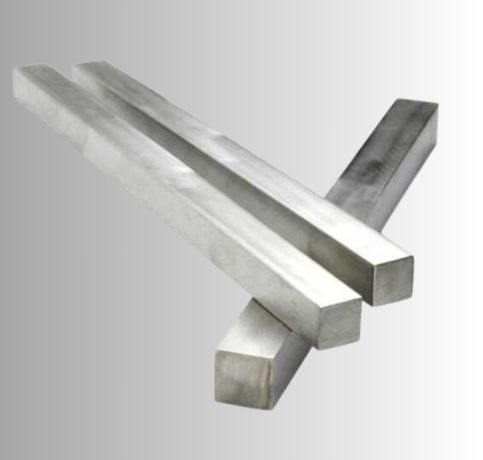

| Square bar size : | 4 to 100mm |

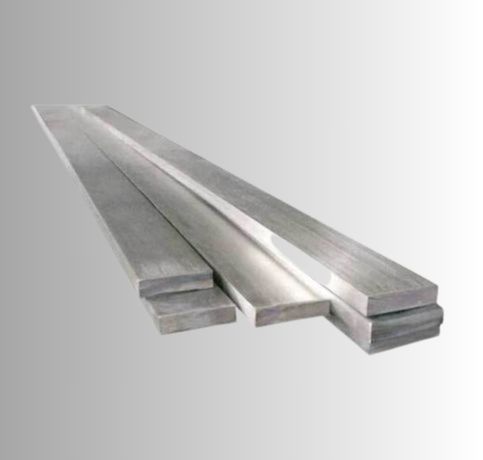

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

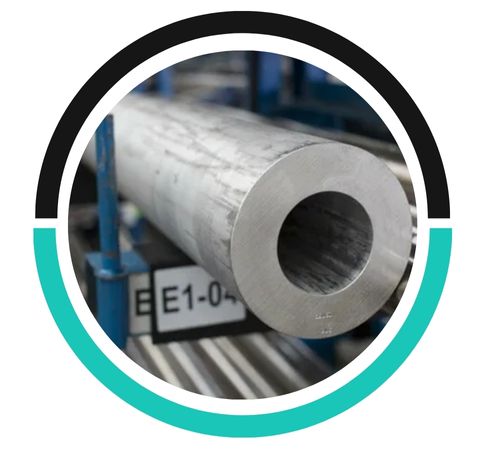

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

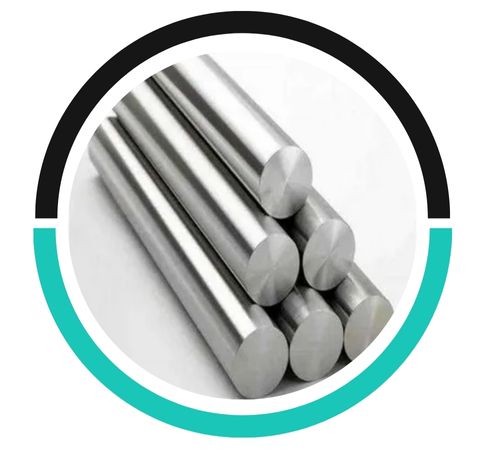

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.louismetals.us
Titanium Grade 1 Bars and Rods are widely utilized in industries requiring far-reaching corrosion resistance as well as high formability. They are perfectly suitable for marine use, including seawater piping, desalination plants, and ship parts. In the chemical processing sector, they are employed in heat exchangers, reactors, and tanks that come into contact with acidic or corrosive chemicals. Grade 1 is applied in medical uses in instruments and implant devices because it is biocompatible. Further applications involve tubing in aerospace, architectural elements, and electroplating equipment where extended performance in aggressive media is necessary.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
