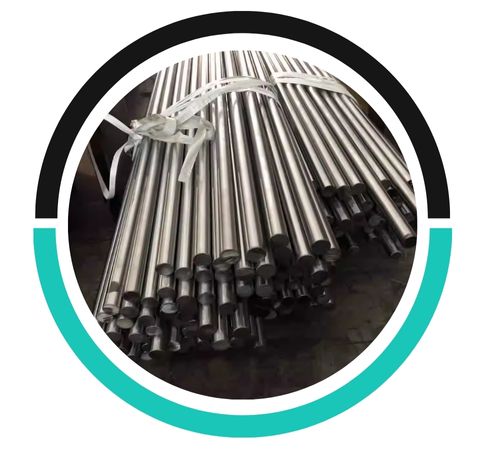

Luois Metals stands out as a top-notch manufacturer and supplier of high-quality Carbon Steel Bars and Rods, proudly based in Houston, USA. We’re all about providing steel products that excel in performance, catering to a variety of industrial needs—from construction and automotive to machinery and fabrication. Our bars and rods come in an extensive range of sizes and specifications, ensuring exceptional strength, durability, and machinability. With a strong focus on quality, customer satisfaction, and prompt delivery, Luois Metals has built a solid reputation as a reliable source for carbon steel solutions, both locally and internationally.
When it comes to Carbon Steel Bars and Rods, they’re primarily made of iron with carbon content that varies from 0.05% to 0.95%, along with trace amounts of manganese, phosphorus, and sulfur. Depending on the carbon content, these steels are categorized as low, medium, or high carbon. They boast impressive mechanical properties, with tensile strength ranging from 400 to 800 MPa and yield strength between 250 and 600 MPa. Plus, carbon steel can be heat-treated to enhance its hardness and wear resistance. It also offers great machinability and moderate weldability, making it a go-to material for general engineering and manufacturing tasks.
| Carbon Steel Bar Standard | ASTM A36, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Carbon Steel Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Carbon Steel Round bar size | Diameter: 3-~800mm |
| Carbon Steel Hex Bar size | 2-100mm A/F |
| CS Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Carbon Steel Square bar size | 4 to 100mm |
| Carbon Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Carbon Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Carbon Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| ASTM A36 Type Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| CS Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Carbon Steel Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Carbon Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| ASTM A36 Type Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Carbon T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Carbon Steel Flat Bars Condition | Hardened & tempered, annealed |
| ASTM A36 Type Cold Rolled Bar Technique | Carbon Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| CS Rod Processing | Bar cutting to 650mm |
| Carbon Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our Carbon Steel Round bar conforms to NACE MR0175/ISO 15156 | |
| Grades | Silicon | Mangenese | Carbon | Phosphorus. | Sulfur. |
|---|---|---|---|---|---|
| En-8D | 0.05/0.35 | 0.70/0.90 | 0.40/0.45 | 0.06 | 0.06 |
| En-9 | 0.50/0.80 | 0.50/0.60 | |||
| SAE 1006 | 0.10/0.30 | 0.25/0.40 | 0.08 max | 0.04 | 0.05 |
| SAE 1008 | 0.30/0.50 | 0.10 max | |||
| SAE 1030 | 0.10/0.40 | 0.60/0.90 | 0.28/0.34 | ||
| SAE 1035 | 0.32/0.38 | ||||
| SAE 1040 | 0.37/0.44 | ||||
| SAE 1010 | 0.10/0.30 | 0.30/0.60 | 0.08/0.13 | ||
| SAE 1018 | 0.60/0.90 | 0.15/0.20 | |||
| SAE 1020 | 0.30/0.60 | 0.18/0.23 | 0.09 | ||
| SAE 1045 | 0.10/0.40 | 0.60/0.90 | 0.40/0.50 | 0.05 | |
| Ck 45 | 0.15/0.35 | 0.50/0.80 | 0.42/0.50 | 0.04 | |
| Ck 55 | 0.60/0.90 | 0.52/0.60 | |||
| Ck 60 | 0.57/0.65 |
| Tensile Strength | Yield Stress, Min, MPa | % Elongation at gauge length 5.65 √Ѕo | Bend Test | ||
| Min, Mpa | |||||
| mm | <20 | 20-40 mm | >40 | min | min |
| mm | mm | ||||
| 410 | 250 | 240 | 230 | 23 | 3t* (*t is 3 times thickness) |
| EN | Normalized | ASTM | AMS | UNS |
|---|---|---|---|---|
| EN 1.0460 | A105n/SA 105n | ASTM A105 | ASME SA 105 | K03504 |
Carbon Steel Bars and Rods are used in industries such as construction, automotive, machinery, and manufacturing for components like shafts, bolts, and structural parts.
Yes, Carbon Steel Bars and Rods can be heat treated to enhance their hardness, strength, and wear resistance, making them suitable for demanding applications.
Carbon Steel Bars and Rods are incredibly popular across various industries, thanks to their perfect blend of strength, cost-effectiveness, and versatility. In construction, they’re essential for reinforcement and structural support. In the automotive sector, they play a vital role as components like axles, shafts, and fasteners. Manufacturing industries rely on them for tools, machinery parts, and frames. Their heat-treatable nature makes them ideal for applications that require improved wear resistance. Whether it’s heavy machinery or precision engineering, carbon steel bars and rods deliver dependable performance in tough environments, making them indispensable.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
