Luois Metals stands out as a reliable manufacturer and supplier of Hastelloy C22 Bars and Rods right in Houston, USA. They deliver top-notch nickel-chromium-molybdenum alloys that are specifically crafted for exceptional corrosion resistance and durability. Hastelloy C22 is incredibly versatile, boasting impressive resistance to both oxidizing and reducing agents, as well as pitting, crevice corrosion, and stress-corrosion cracking. With a commitment to precision engineering and strict adherence to global quality standards, Luois Metals ensures that their Hastelloy C22 bars and rods are perfect for even the most demanding environments. These products find their place in various industries, including chemical processing, marine applications, pollution control, and power generation, where reliability and longevity are crucial.
The composition of Hastelloy C22 Bars and Rods includes nickel, chromium, molybdenum, tungsten, and iron, creating a fantastic blend of mechanical strength and corrosion resistance. The high chromium content provides excellent resistance to oxidizing environments, while molybdenum and tungsten boost resistance to reducing conditions. These bars and rods are known for their high tensile strength, good ductility, and toughness across a wide range of temperatures. They remain stable even in aggressive chemical environments, such as wet chlorine, acetic anhydride, ferric and cupric chlorides, and seawater. This reliability makes Hastelloy C22 a go-to choice for critical industrial applications.
| Standard | ASTM B574, ASME SB574 |

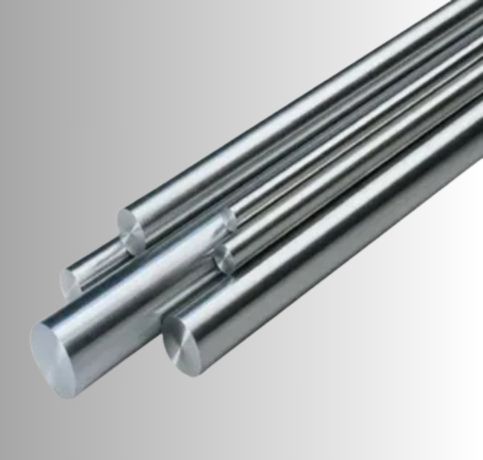

| Round Bar Size | 3mm~ 800mm |

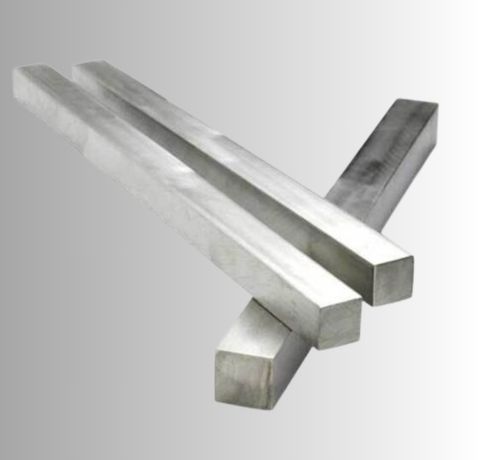

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

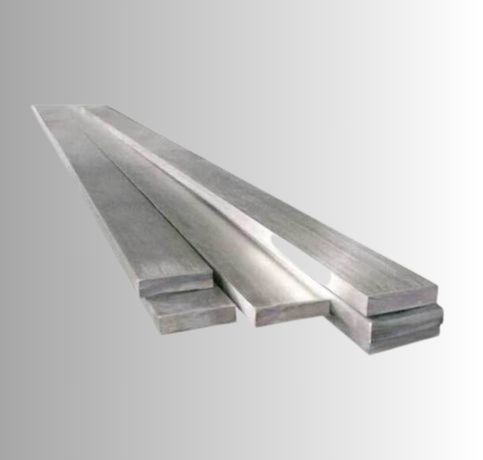

| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | C | Cr | Co | Fe | Mn | Mo | P | Si | S | W | V |
| Hastelloy C22 | Bal | 0.010 max | 20 – 22.5 | 2.5 max | 2 – 6 | 0.50 max | 12.5 – 14.5 | 0.02 max | 0.08 max | 0.02 max | 2.5 – 3.5 | 0.35 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C22 | 2.4602 | N06022 | – | – | NW 6022 | – | NiCr21Mo14W |
| ALLOY C-22 (Ni/22Cr/13Mo/3Fe/3W) / INCONEL 622/C-22 Round Bar | Dimension |
|---|---|
| cold drawn, solution annealed | Dia=16.0 mm, Weight=1.75 kg/m |
| hot worked, solution annealed, peeled | Dia=20.0 mm, Weight=2.6 kg/m |
| hot worked, solution annealed, peeled | Dia=25.4 mm, Weight=4.5 kg/m |
| hot worked, solution annealed, peeled | Dia=30.0 mm, Weight=6.14 kg/m |
| hot worked, sol annealed, peeled | Dia=38.1 mm, Weight=10.1 kg/m |
| extruded, machined, solution annealed | Dia=45.0 mm, Weight=13.15 kg/m |
| hot worked, solution annealed, peeled | Dia=50.8 mm, Weight=18.0 kg/m |
| extruded, machined, solution annealed | Dia=70.0 mm, Weight=35.0 kg/m |
| solution annealed, peeled | Dia=82.55 mm, Weight=47.6 kg/m |
| hot worked, solution annealed, peeled | Dia=101.6 mm, Weight=72.1 kg/m |
| forged, solution annealed, peeled | Dia=115.0 mm, Weight=89.4 kg/m |
| forged, solution annealed, peeled | Dia=130.0 mm, Weight=113.9 kg/m |
| forged, solution annealed, peeled | Dia=150.0 mm, Weight=152.15 kg/m |
| forged, turned | Dia=165.1 mm, Weight=187 kg/m |
Yes, Hastelloy C22 Bars are highly corrosion-resistant, particularly against pitting, crevice corrosion, and stress corrosion cracking in harsh environments. They excel in resisting acids, oxidizing agents, and chloride-induced corrosion.
Yes, Hastelloy C22 rods can be customized in size and length to meet specific industrial requirements. Manufacturers often offer tailored dimensions to suit diverse applications.
Hastelloy C22 bars perform exceptionally well in high-temperature environments due to their superior resistance to oxidation and thermal stability. They maintain strength and corrosion resistance under extreme conditions.
In industries that face harsh chemical and thermal conditions, Hastelloy C22 Bars and Rods are extensively utilized. In the chemical sector, you’ll find them in reactors, heat exchangers, and piping systems that handle aggressive chemicals. The marine industry relies on them for seawater handling systems, pumps, and valves, thanks to their outstanding resistance to chloride-induced corrosion. Pollution control plants incorporate them into scrubbers, stack liners, and ducting. Moreover, Hastelloy C22 is also used in pharmaceuticals, food processing, and power generation systems, ensuring consistent performance, safety, and durability in highly corrosive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
