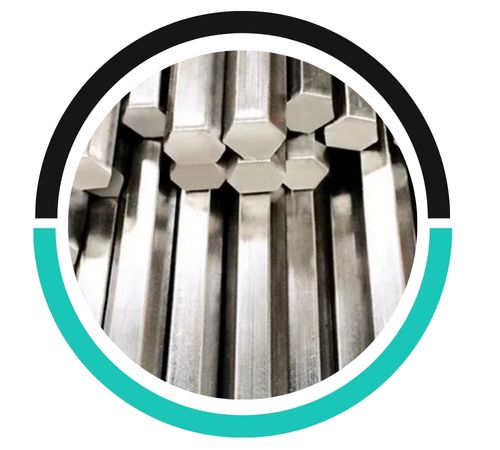

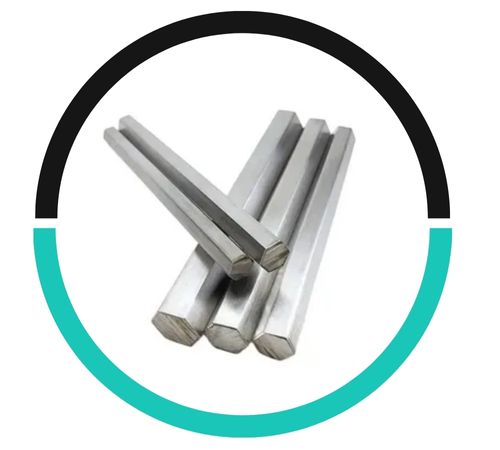

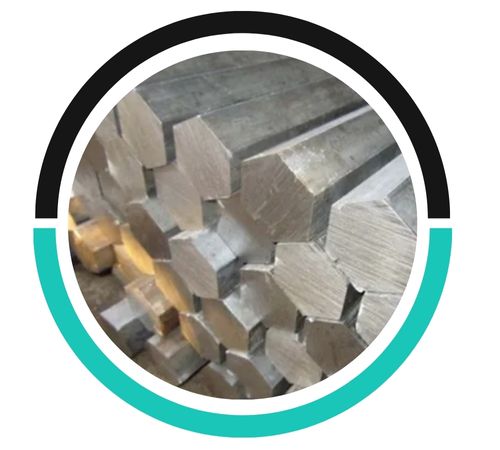

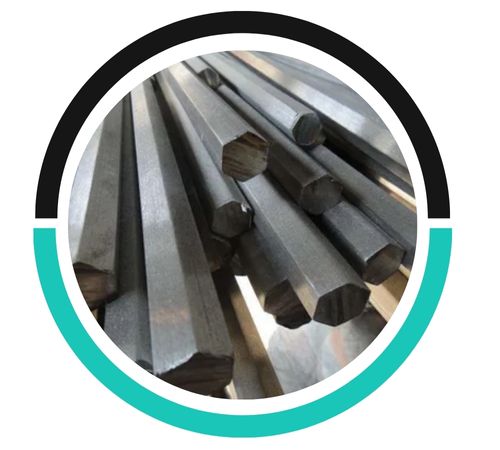

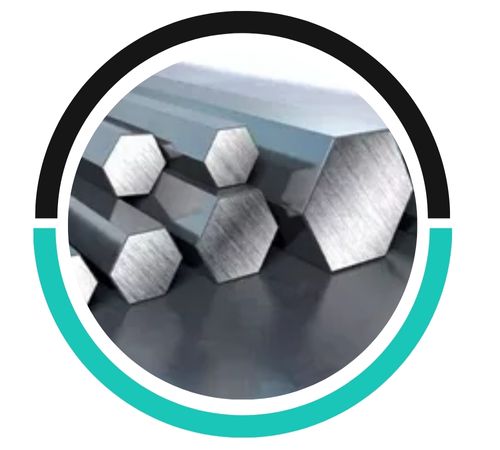

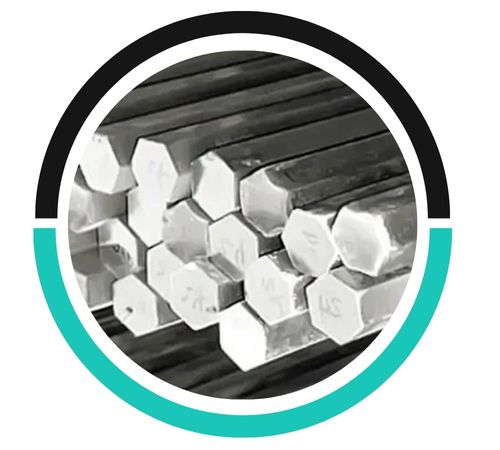

Louis Metals is a premier producer and supplier of Stainless Steel 317L Hex Bars and Rods in Houston, USA, providing high-quality stainless steel solutions for highly corrosive and chemically aggressive conditions. Designed with superior quality and robustness, SS 317L hex bars and rods are made from high-quality raw materials and state-of-the-art manufacturing processes. Popular for their superior corrosion resistance with high molybdenum content, these bars are suitable for applications in chemical processing, pharmaceutical, marine, and pulp & paper industries. The hex shape adds strength and better handling during machining and fastening operations where reliability is paramount.
Stainless Steel 317L Hex Bars/Rods are low-carbon austenitic stainless steels containing Chromium (18–20%), Nickel (11–15%), Molybdenum (3–4%), and up to 0.03% Carbon. The additional molybdenum improves resistance to pitting, crevice corrosion, and chemical attack, particularly in chlorided-rich or acidic media. The bars provide a tensile strength of 515–760 MPa, yield strength of approximately 205 MPa, and high ductility and formability. SS 317L is non-magnetic in the annealed state and resists sensitization, and hence it is appropriate for welding and high-integrity use in aggressive service conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317l | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317l | 8 | 1450 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 317L Hex Bars and Rods have extensive use in applications where exceptional corrosion resistance is required, especially in sulfuric, hydrochloric, or acetic acid-containing environments. Heat exchangers, evaporators, chemical tanks for storage, flue gas scrubbers, condensers, and marine hardware are some of the frequent applications. In pharmaceutical, food processing, and pulp & paper industries, the bars find perfect application in process equipment that comes into contact with corrosive media. The hex profile provides a tighter grip and torque strength, making them ideal for bolts, fasteners, shafts, and mechanical components where precision, strength, corrosion resistance are required.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
