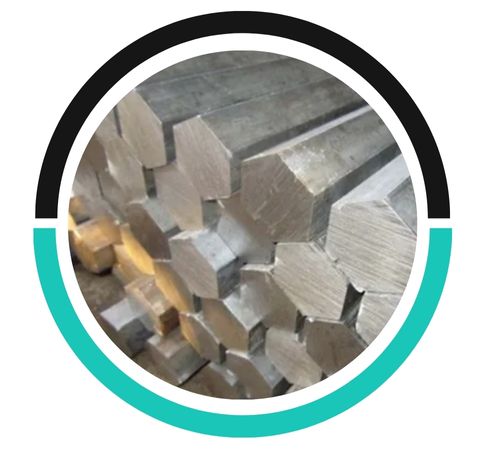

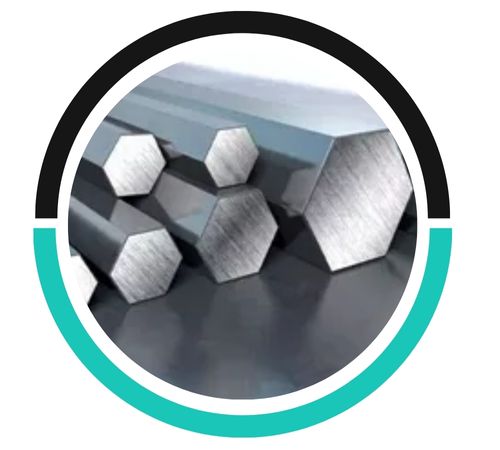

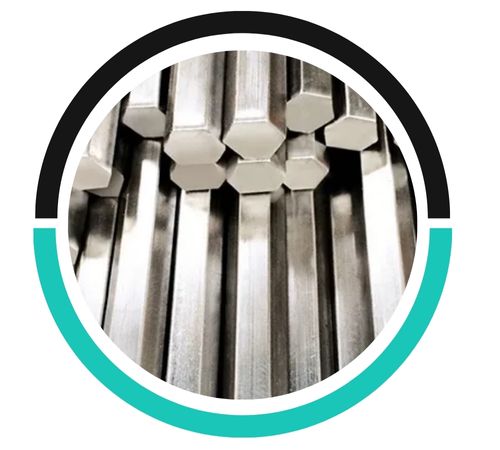

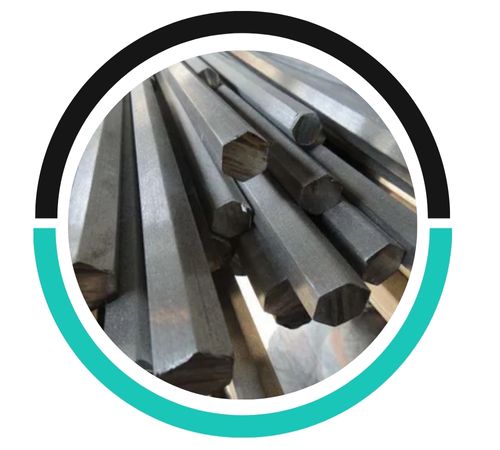

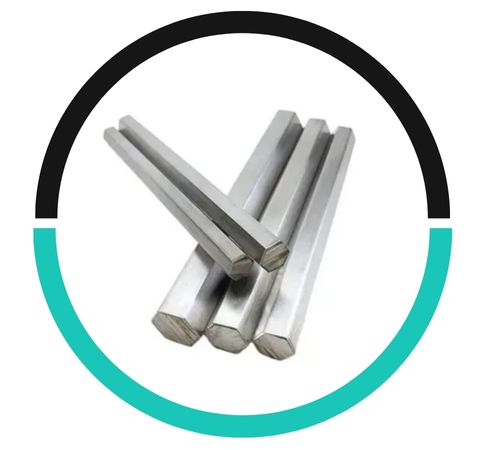

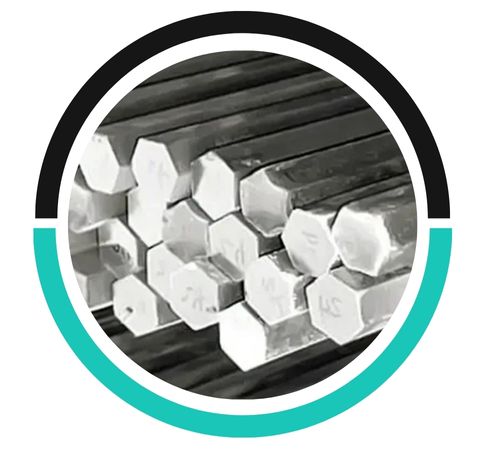

Louis Metals, a reputable stainless steel manufacturer and supplier based in Houston, USA, proudly offers top-notch Stainless Steel 304L Hex Bars and Rods. These products are well-known for their outstanding corrosion resistance, weldability, and versatility. The 304L grade is a low-carbon variant of 304, making it particularly ideal for welding and situations where sensitization might be an issue. Our 304L hex bars and rods are crafted to meet ASTM standards and come in various sizes and finishes. Louis Metals ensures that our durable and precisely machined 304L products cater to industries such as food processing, petrochemical, pharmaceuticals, and marine equipment manufacturing.
Stainless Steel 304L Hex Bars/Rods consist of 18–20% chromium, 8–12% nickel, and a maximum carbon content of 0.03%. This low carbon level boosts resistance to intergranular corrosion, especially post-welding. The alloy boasts a tensile strength ranging from 485–620 MPa, a yield strength of about 170–240 MPa, and a Brinell hardness of 140–190 HB. 304L maintains excellent formability, strength, and corrosion resistance across various environments. It is non-magnetic in its annealed state and retains toughness and durability at both cryogenic and elevated temperatures, making it a dependable choice for structural and industrial applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 12.0 | 0.045 max | 0.03 max | 1.0 max |
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 12.0 | 0.045 max | 0.03 max | 1.0 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | 485 | 170 | 40 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 304L Hex Bars and Rods find their place in numerous industries thanks to their exceptional corrosion resistance, particularly in mildly corrosive or oxidizing settings. They are frequently utilized in chemical processing, food and beverage equipment, architectural structures, marine fittings, pharmaceutical manufacturing, and heat exchangers. The hexagonal shape is perfect for machining applications that demand dimensional stability and robust mechanical performance. With its low carbon content, 304L is especially well-suited for welding and forming without the risk of sensitization.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
