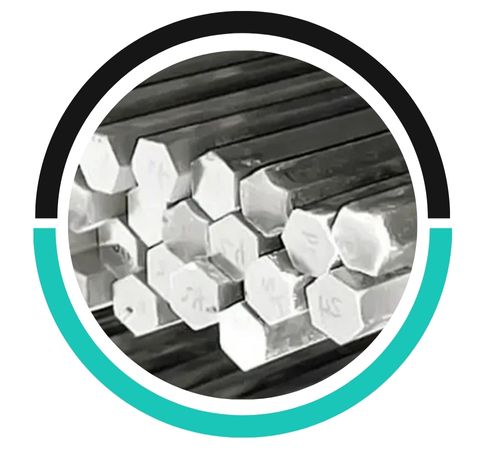

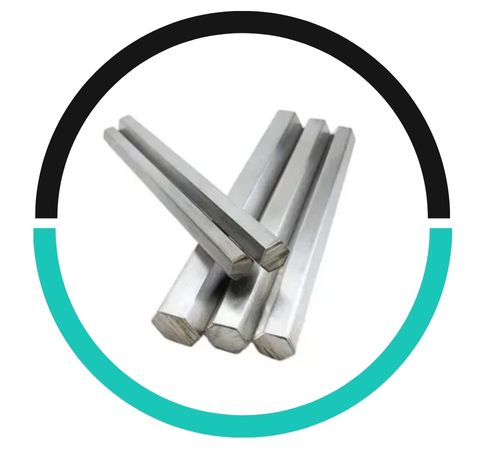

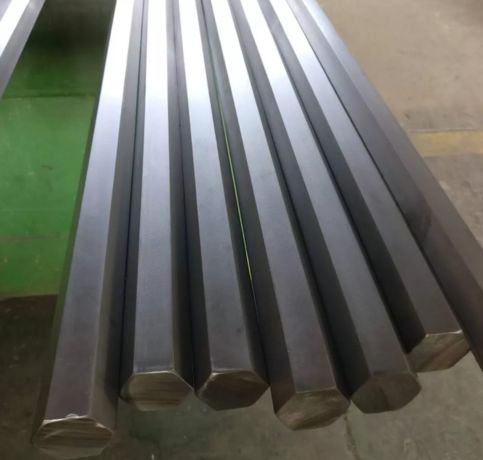

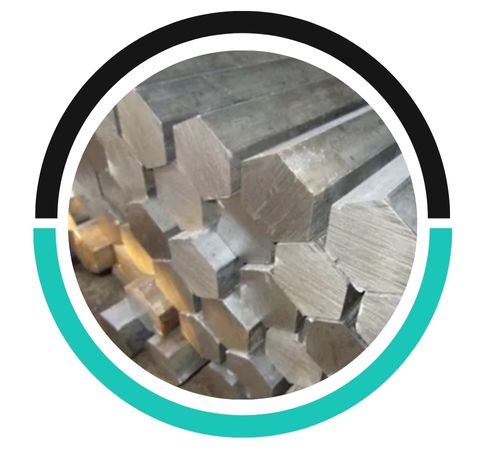

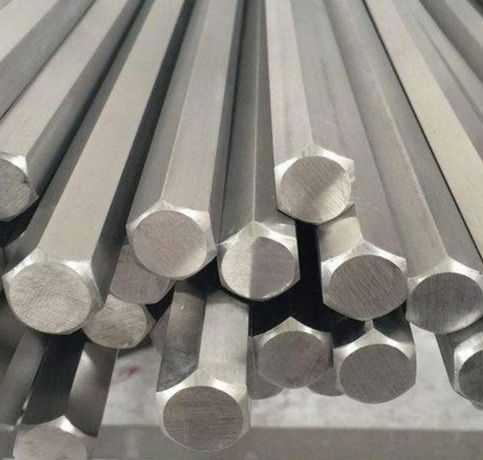

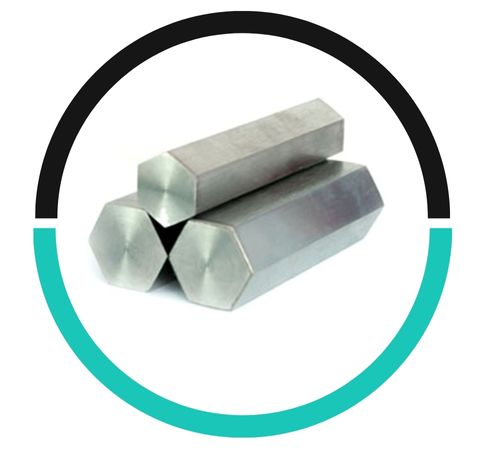

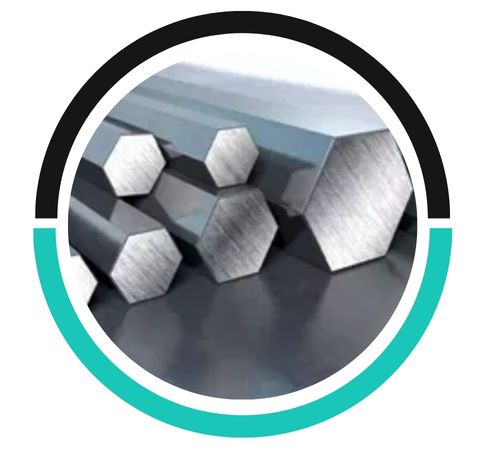

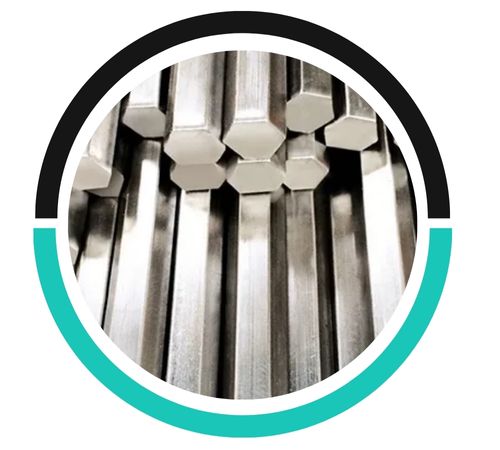

Louis Metals stands out as a top manufacturer and supplier of Stainless Steel 17-7 PH Hex Bars and Rods, proudly based in Houston, USA. We’re known for our unwavering commitment to quality, precision, and reliability, providing high-performance stainless steel products that are engineered for the toughest applications. Our 17-7 PH hex bars and rods boast impressive strength, hardness, and corrosion resistance, making them perfect for industries like aerospace, chemical processing, and mechanical engineering. With our advanced manufacturing capabilities and a customer-centric approach, Louis Metals delivers customized stainless steel solutions that meet strict specifications and tight tolerances for both standard and bespoke industrial needs across the United States.
Stainless Steel 17-7 PH Hex Bars and Rods are made from precipitation-hardened alloys primarily consisting of iron, along with 16–18% chromium, 6.5–7.75% nickel, and 0.75–1.5% aluminum. This unique blend gives the alloy remarkable mechanical properties and excellent corrosion resistance. It can achieve a tensile strength of up to 1300 MPa and a yield strength of around 1100 MPa, depending on the heat treatment process. The alloy also offers good fatigue strength, minimal distortion during heat treatment, and retains high strength in both extreme heat and cold. These characteristics make it a go-to choice for applications that demand high mechanical performance and dimensional stability.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-7 PH | .09 | – | 16.0 – 18.0 | – | Bal | 1.0 | 6.50 – 7.75 | .04 | 0.04 | 1.0 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-7 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-7 PH | – | S17700 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Common challenges with Stainless Steel 17-7 PH Hex Bar include difficulty in machining due to its hardness, sensitivity to stress corrosion cracking, and the need for precise heat treatment to achieve optimal properties.
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-7 PH Hex Bar and Rod are fully recyclable. Stainless steel can be melted down and reused, making it an environmentally friendly material for sustainable manufacturing processes.
You’ll find Stainless Steel 17-7 PH Hex Bars and Rods in critical applications where high strength, hardness, and corrosion resistance are non-negotiable. In the aerospace sector, they’re utilized for springs, fasteners, and structural components. In chemical processing, they deliver reliable performance even in corrosive and high-stress environments. This material is also essential in medical devices, oil and gas equipment, and precision instruments that require minimal distortion and long-lasting reliability. Its outstanding mechanical properties make it ideal for high-load, high-fatigue situations, and its machinability ensures versatility in various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
