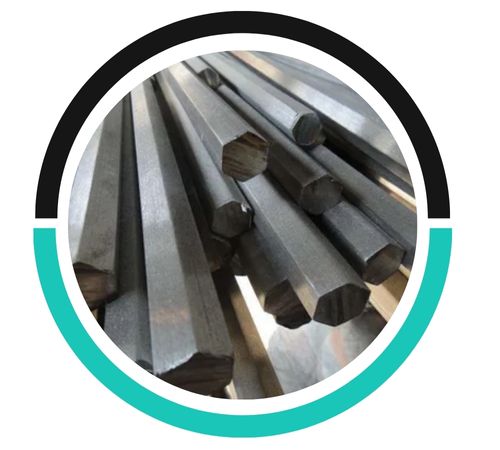

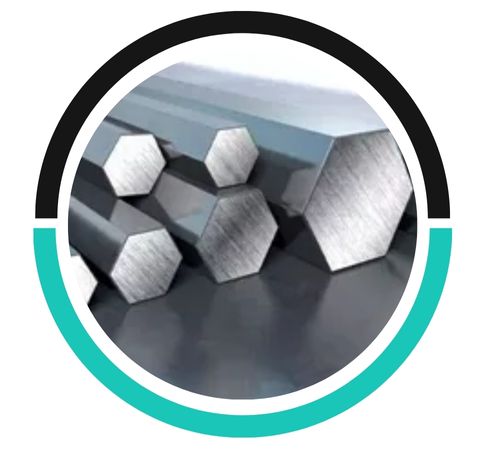

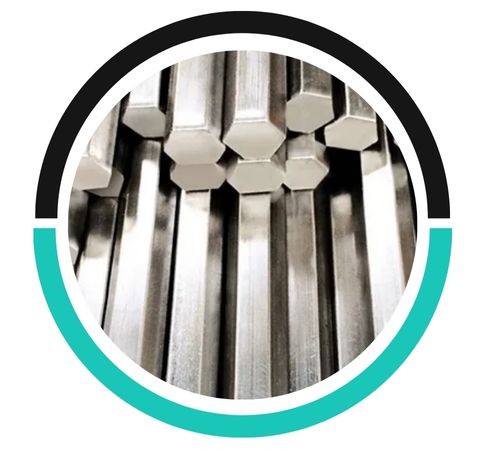

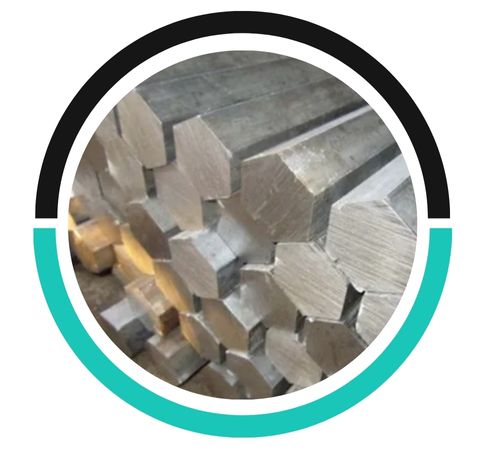

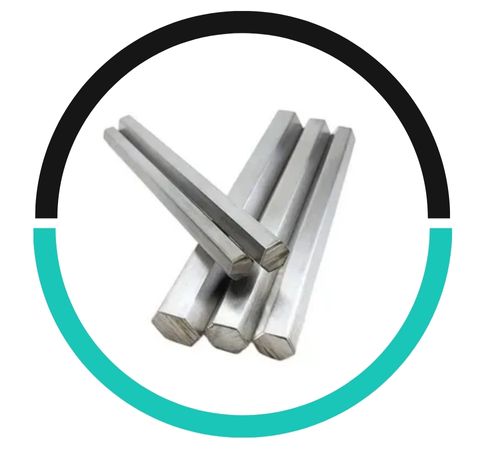

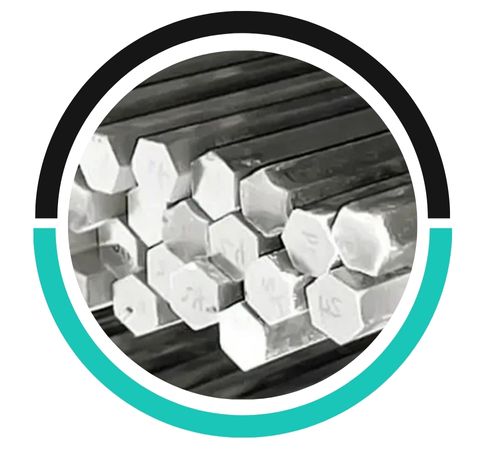

Luois Metals, a well-respected manufacturer and supplier located in Houston, USA, specializes in top-notch Stainless Steel 304 Hex Bars and Rods that are built for strength, durability, and impressive corrosion resistance. Using cutting-edge technology and rigorous quality control, these bars and rods boast precise dimensions, a smooth finish, and reliable mechanical performance. Complying with global standards, Stainless Steel 304 Hex Bars and Rods are trusted across various industries, including chemical processing, food processing, pharmaceuticals, marine, and construction. Luois Metals is committed to providing dependable solutions tailored to both standard and custom engineering needs, making their 304 Hex Bars and Rods a go-to choice for a wide range of industrial applications.
These Stainless Steel 304 Hex Bars and Rods contain 18–20% chromium and 8–10.5% nickel, along with balanced iron content and trace elements that boost performance. This unique composition delivers exceptional resistance to corrosion, oxidation, and a variety of chemical exposures. They also showcase excellent tensile and yield strength, high toughness, and good ductility. Their outstanding machinability and weldability make them ideal for fabrication and precision engineering. The blend of strength, corrosion resistance, and formability makes Stainless Steel 304 Hex Bars and Rods incredibly versatile for challenging environments and engineering tasks.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 304 | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 11.0 | 0.045 max | 0.03 max | 1.0 max |
| Element | Tensile Strength | Yield Strength | Elongation | Reduction in Area | Hardness |
| SS 304 | Psi – 85,000 | Psi – 45,000 | 50% | 55% | Rb 180 |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Standard sizes for SS 304 hex bars/rods typically range from 1/8" to 6" in diameter. Custom sizes, lengths, and finishes are generally available upon request, depending on the supplier's capabilities and production methods.
SS 304 hex bars/rods can be welded and fabricated into complex shapes with relative ease. It offers good weldability, but pre-welding surface preparation and proper techniques are necessary to avoid distortion or degradation of material properties.
SS 304 offers good strength and corrosion resistance, suitable for many applications. Compared to other grades like SS 316, it has slightly lower corrosion resistance, especially in chloride environments, but SS 304 is more cost-effective and widely used.
You’ll find Stainless Steel 304 Hex Bars and Rods commonly used in making fasteners, nuts, bolts, valves, shafts, marine fittings, food processing equipment, and structural components. Their corrosion resistance makes them perfect for moist and corrosive settings, while their hexagonal shape allows for easy gripping and assembly in mechanical applications. These bars and rods are also employed in architectural projects, engineering structures, and precision-machined components. Luois Metals guarantees that its Stainless Steel 304 Hex Bars and Rods adhere to strict quality standards, ensuring reliable performance in every application.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
