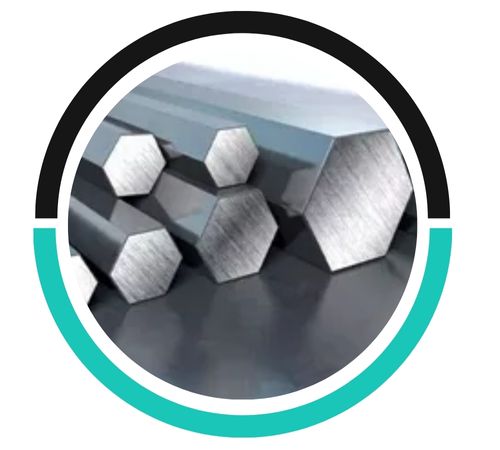

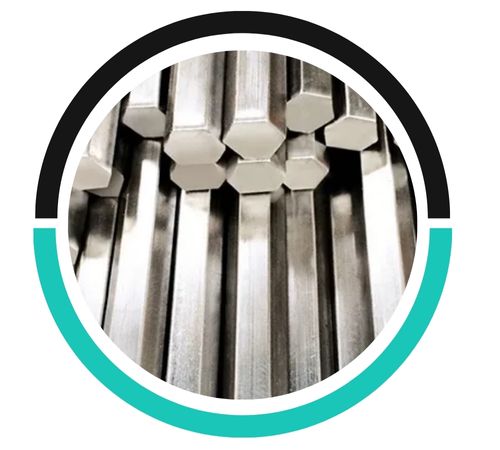

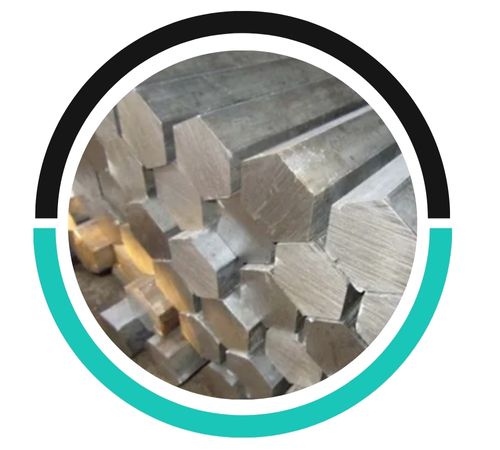

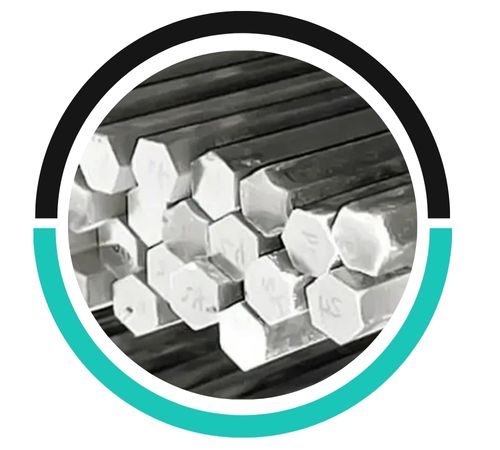

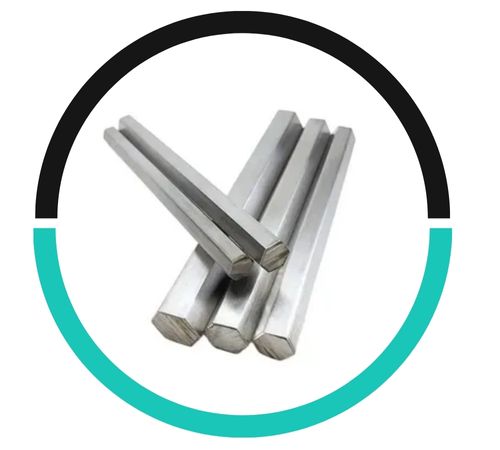

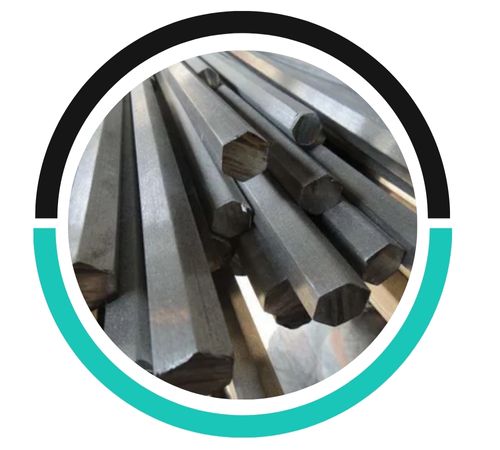

Vipul Sheets and Plates is a trusted manufacturer and exporter of Stainless Steel 310 Hex Bars and Rods in Delhi, India. SS 310 is a high-chromium, high-nickel alloy designed for high-temperature environments. It offers strong oxidation resistance and high-temperature strength. Our 310 hex bars are made from high-quality raw materials using advanced manufacturing techniques, making them ideal for industrial furnaces, heat exchangers, and energy systems. Vipul provides these bars in customized dimensions and finishes, meeting the needs of industries such as metallurgy, petrochemicals, and thermal processing.
Stainless Steel 310 contains 24 to 26% Chromium, 19 to 22% Nickel, and ≤0.25% Carbon. This alloy offers great oxidation resistance up to 1100°C in continuous use. It provides a tensile strength of 520 to 750 MPa and a yield strength of around 205 MPa. SS 310 has good ductility, weldability, and creep resistance at high temperatures. The hex bar design ensures better grip and mechanical stability, especially in fastening applications. It is suitable for applications requiring structural integrity in environments with severe thermal cycling and high oxidation temperatures.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 310 | 0.25 max | 24.0 – 26.0 | 2.00 max | 19.0 – 22.0 | 0.045 max. | 0.03 max. | 1.50 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 310 | 8 | 1400 ℃ | 515 MPa | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 310 hex bars/rods are primarily used in industrial applications requiring high-temperature resistance and corrosion resistance. Common uses include furnace parts, heat exchangers, chemical processing equipment, petrochemical industries, and welding rods. Their ability to withstand extreme environments makes them ideal for high-heat and corrosive conditions.
SS 310 offers superior corrosion resistance and heat resistance compared to other stainless steel grades due to its higher chromium (25%) and nickel (20%) content. It excels in extreme temperatures (up to 1,100°C or 2,010°F) and resists oxidation, scaling, and corrosion in aggressive environments better than grades like SS 304.
Common manufacturing processes for SS 310 hex bars/rods include hot forging, cold drawing, and machining. Hot forging shapes the material at high temperatures, while cold drawing refines dimensions and improves surface finish. Machining ensures precise cuts and finishes, making the rods suitable for various industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
