Louis Metals stands out as a reliable manufacturer and supplier of Stainless Steel 17-4 PH Hex Bars and Rods, proudly catering to clients throughout Houston, USA. With a solid reputation for precision-engineered stainless steel products, we focus on high-performance materials tailored for critical applications. Our 17-4 PH hex bars and rods are celebrated for their exceptional strength, hardness, and resistance to corrosion. Thanks to our advanced production capabilities and deep industry knowledge, Louis Metals guarantees quality, dependability, and quick delivery for every order. We offer both standard and custom sizes to satisfy the demanding needs of the aerospace, defense, chemical, and manufacturing sectors across the United States.

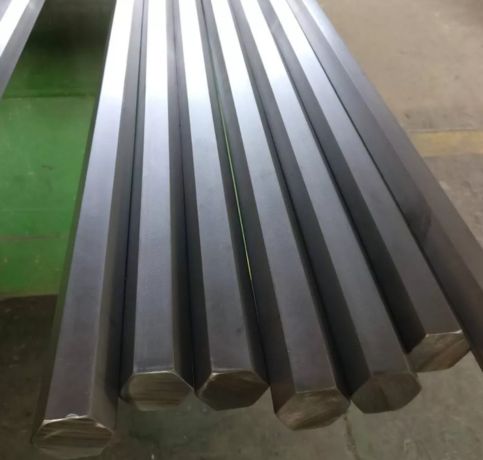

Stainless Steel 17-4 PH Hex Bars and Rods are martensitic precipitation-hardening alloys made up of about 15–17.5% chromium, 3–5% nickel, 3–5% copper, along with trace amounts of niobium and manganese, with iron as the base. This alloy boasts impressive mechanical strength and corrosion resistance, especially after undergoing heat treatment. It can achieve tensile strength up to 1310 MPa and yield strength around 1170 MPa, depending on its condition. Plus, it maintains toughness across a wide range of temperatures. Its ability to be hardened through heat treatment with minimal distortion makes it perfect for precision and high-load applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 max | 15.00-17.50 max | 3.00-5.00 max | Bal | 1.0 | 3.0-5.0 | 0.40 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-4 PH Hex Bar and Rod can be used for structural applications due to its high strength, excellent corrosion resistance, and ability to withstand extreme environments, making it ideal for demanding conditions.
Common challenges when using Stainless Steel 17-4 PH Hex Bar include difficulties in machining due to its hardness, sensitivity to stress corrosion cracking in certain environments, and the need for precise heat treatment for optimal properties.
Stainless Steel 17-4 PH Hex Bars and Rods find their place in various industries that demand a blend of strength, hardness, and corrosion resistance. In aerospace, they’re used for structural components, turbine parts, and fasteners. In the chemical and petrochemical sectors, they’re ideal for pump shafts, valves, and pressure vessels. The medical industry relies on this alloy for surgical instruments and implant components. It’s also prevalent in nuclear, marine, and defense fields where dimensional stability and performance under stress are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
