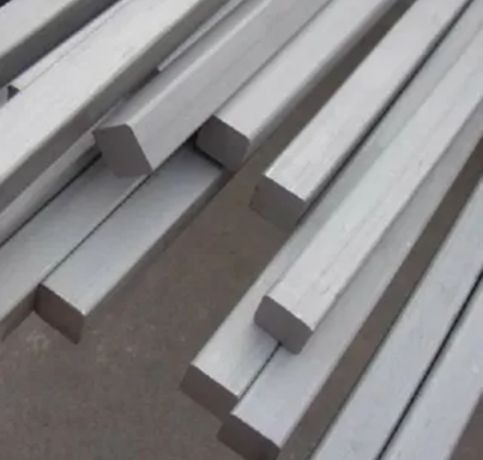

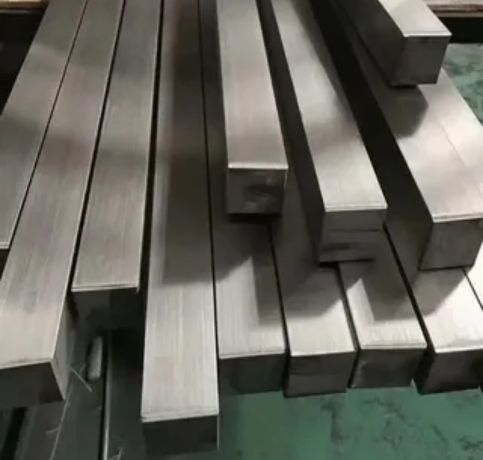

Louis Metals provides high-quality Stainless Steel 904L Square Bars and Rods, which are fabricated from high-alloy austenitic stainless steel with excellent corrosion resistance and high-temperature properties. With a 25% chromium, 4.5% nickel, and 1.5% copper composition, Stainless Steel 904L exhibits outstanding resistance to oxidizing acids, such as sulfuric and phosphoric acids, and reducing acids. Our stainless steel 904L square bars and rods can handle tough environments and find applications in numerous industries such as chemical processing, marine, and pharmaceuticals, where high corrosion resistance is essential for durability.
Stainless Steel 904L Square Bars/Rods are made up of 25% chrome, 4.5% nickel, 1.5% copper, and a small amount of molybdenum and other elements. The alloy has great resistance to pitting corrosion, crevice corrosion, and stress corrosion cracking in severe chemical environments. It has tensile strength of about 520–750 MPa and yield strength of 200–350 MPa. Stainless Steel 904L offers excellent resistance against sulfuric, phosphoric, and hydrochloric acids and is suited for corrosive service. Its high nickel and chromium content gives it exceptional resistance to oxidation as well as improved mechanical properties at higher temperatures.
| Specifications | : | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 904L Square Bars | : | Outside Diameter in the range of 4mm to 500mm |
| SS 904L Square Bars | : | 18mm ” 47mm (11/16″ to 1-3/4″) |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | EN | EURONORM NAME |
| SS 904L | 1.4539 | N08904 | – | 904S13 | – | X1NiCrMoCuN25-20-5 |
| SQUARES | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, we provide stainless steel 904L square bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.louismetals.us

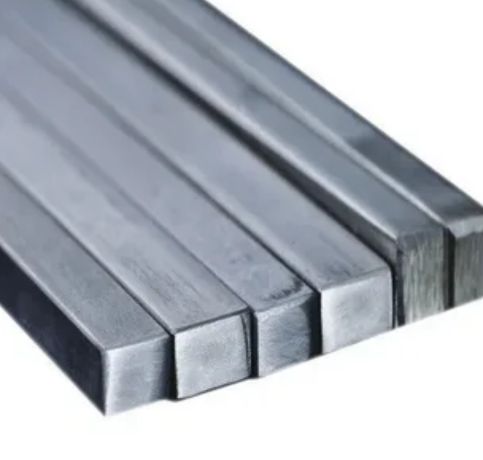

Stainless Steel 904L Square Rods are known for their exceptional corrosion resistance, high strength, and excellent weldability, making them ideal for harsh environments. They also exhibit good formability, durability, and resistance to pitting and crevice corrosion.
Yes, Stainless Steel 904L Square Bars can be recycled after use. Their high nickel and chromium content make them valuable for recycling, reducing waste and conserving resources.
Stainless Steel 904L Square Bars and Rods are utilized in applications where corrosion resistance against very acidic substances is necessary. They find application in chemical processing for piping systems, heat exchangers, and reactors that are exposed to hydrochloric and sulfuric acids. The food and pharmaceutical industries utilize 904L equipment that is to be resistant against acids and sterilization cycles. It finds application in marine conditions also for seawater systems because it offers great resistance to chloride corrosion. Besides, Stainless Steel 904L is applied in pollution control equipment, oil and gas, as well as other industrial processes demanding high corrosion resistance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
