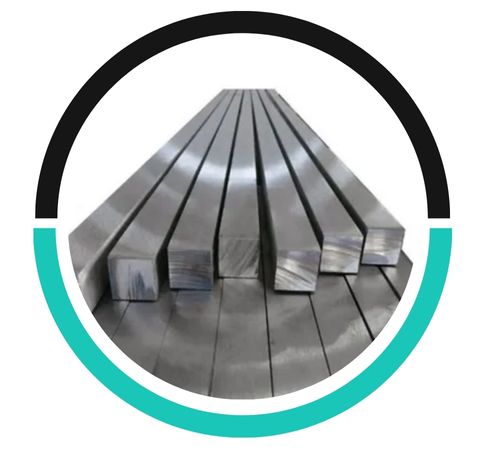

Louis Metals is your go-to manufacturer and supplier of top-notch stainless steel products, proudly based in Houston, USA. We focus on providing high-quality Stainless Steel 304 Square Bars and Rods, celebrated for their durability, resistance to corrosion, and impressive mechanical strength. With years of experience under our belt, Louis Metals delivers stainless steel bars and rods that cater to a variety of industrial needs, ensuring precision and quality with every order. Whether you need them for domestic, commercial, or industrial applications, our Stainless Steel 304 Square Bars are crafted to meet ASTM standards and come in a range of sizes, ready for quick delivery across the United States.
Our Stainless Steel 304 Square Bars and Rods are made up of 18–20% Chromium and 8–10.5% Nickel, with Iron as the primary element. They also include trace amounts of Manganese, Silicon, and Carbon. This alloy is known for its excellent corrosion resistance and good formability. In terms of mechanical properties, it boasts a tensile strength of about 515 MPa and a yield strength of around 205 MPa. With an elongation of approximately 40%, it maintains good toughness even in cryogenic conditions. These characteristics make SS 304 perfect for a variety of high-stress and corrosive environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |

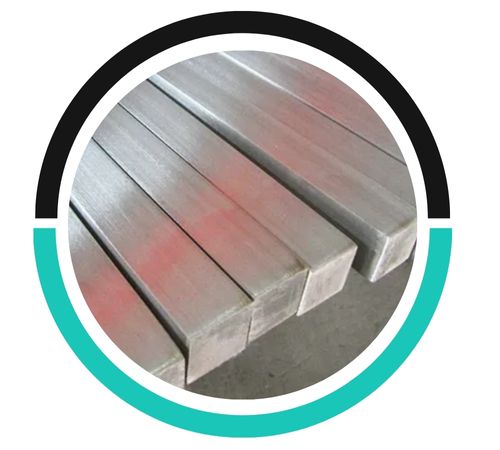

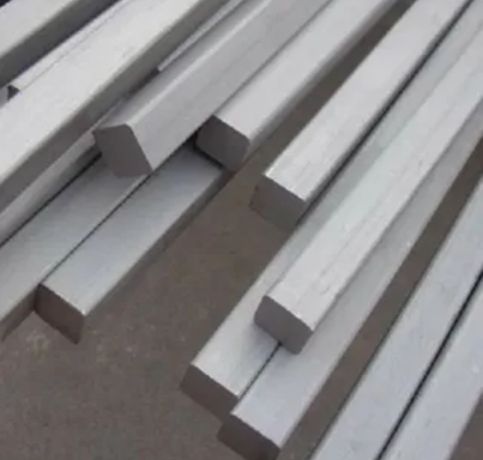

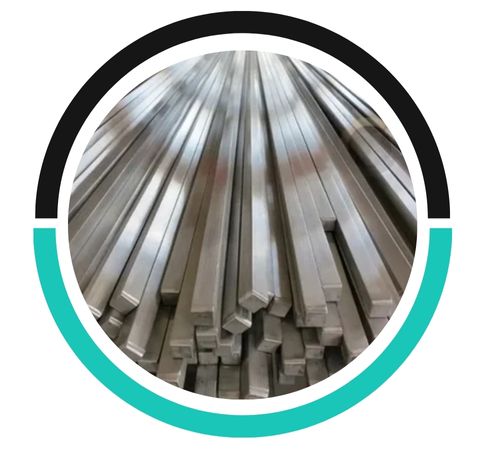

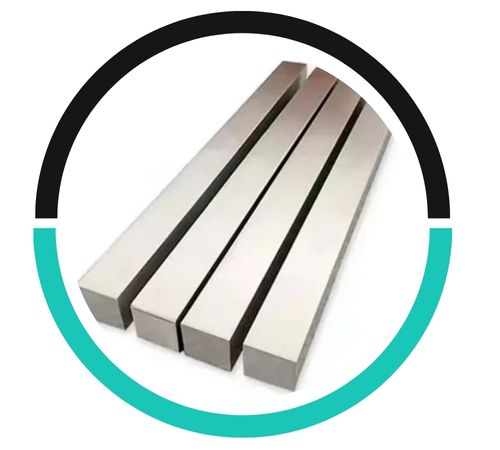

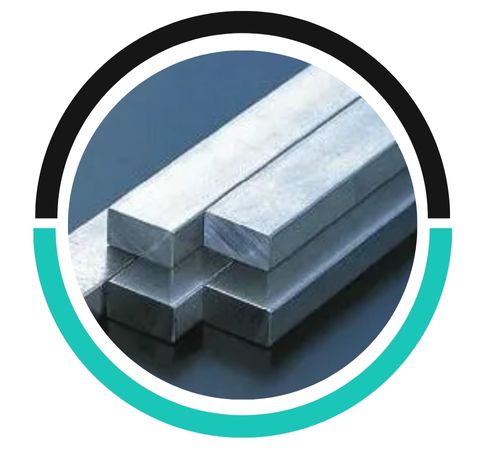

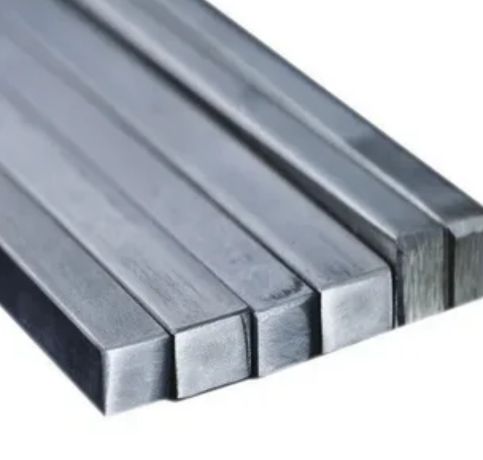

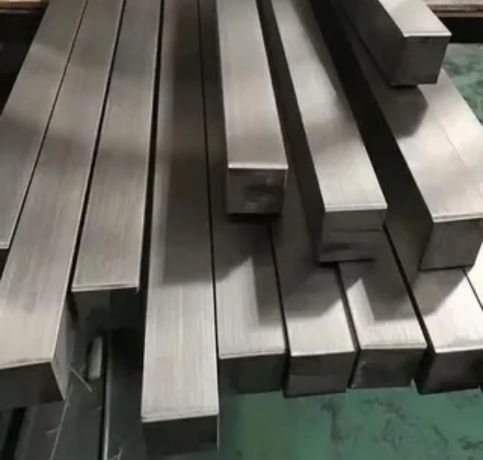

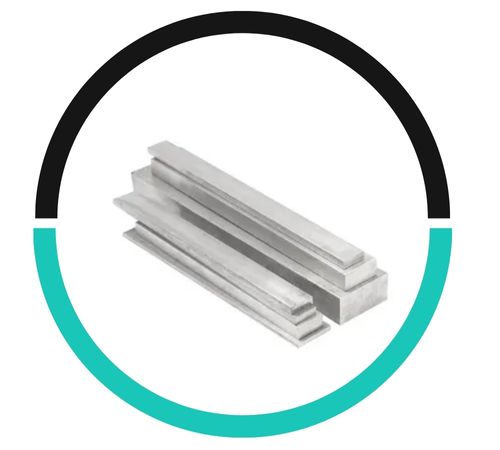

Stainless Steel 304 square bars and rods come in various types, including hot-rolled, cold-drawn, and annealed finishes. They are available in different sizes, catering to diverse industrial and structural applications.
Stainless Steel 304 Square Bars and Rods are available in various sizes, typically ranging from 4mm to 100mm, and finishes such as hot rolled, cold drawn, polished, or bright finish. They can also be customized to meet specific dimensional and surface finish requirements.
Discover the performance of Stainless Steel 304 square bars and rods in high-temperature environments. Learn about their excellent strength, corrosion resistance, and durability for industrial applications."
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
