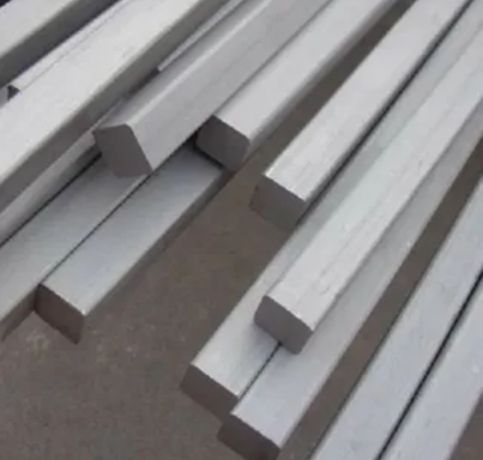

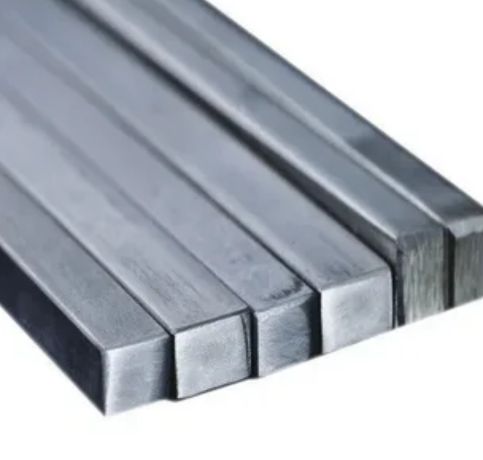

Louis Metals is a leading producer and supplier of Stainless Steel 310S Square Bars and Rods in the USA, specifically in Houston, providing high-quality stainless steel products that can withstand high-temperature and highly corrosive conditions. With the best raw materials and high-precision production techniques, Louis Metals’ SS 310S square bars and rods provide superior resistance against oxidation, scaling, and thermal fatigue. These bars are best suited for applications calling for long-term service in high heat and corrosive conditions. Louis Metals provides industries like heat treatment, chemical processing, power generation, and furnace manufacturing with reliable, high-strength stainless steel solutions.
310S Square Bars/Rods are low-carbon austenitic stainless steels made up of Chromium (24–26%), Nickel (19–22%), and Carbon (max 0.08%). The high nickel and chromium content offers excellent resistance to carburization as well as oxidation up to 1100°C. SS 310S provides tensile strength ranging from 520–750 MPa, yield strength of approximately 205 MPa, and satisfactory creep and stress rupture strength. The lower carbon content offers better weldability and less risk of sensitization and thus is applicable for welded parts which are exposed to high heat and corrosive environment.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 310S | 0.08 max | 24.0 – 26.0 | 2.00 max | 19.0 – 22.0 | 0.045 max. | 0.03 max. | 1.50 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 310 | 8 | 1400 ℃ | 515 MPa | 205 | 40 – 50 | 160 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 310S | 1.4845 | S31008 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 310S Square Bar and Rods find extensive applications in conditions where there is long-term exposure to high temperatures and corrosive chemicals. It is generally used in furnace components, heat exchangers, burners, kiln liners, steam boilers, and thermal processing equipment. They are employed in petrochemical, refining, and power sectors in the form of high-temperature piping, reactor components, and combustion chambers. Their high corrosion and oxidation resistance also renders them appropriate for use in coastal and marine structures. Square is better for superior strength load-bearing assemblies, supports for structures, and machining components in severe industrial applications where durability and thermal stability are paramount.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
