Louis Metals is a trusted Houston, USA-based stainless steel producer and supplier that provides high-quality Stainless Steel 347 Square Bars and Rods for applications in high-temperature and corrosive atmospheres. Renowned for their high strength, durability, and accuracy in dimensions, these square bars are produced under strict quality control using advanced manufacturing methods. Louis Metals caters to a diverse set of industries such as aerospace, petrochemical, and power generation, supplying standard sizes as well as custom solutions. Focusing on quality, performance, and customer satisfaction, Louis Metals offers stainless steel products that satisfy critical application requirements in the domestic as well as international markets.

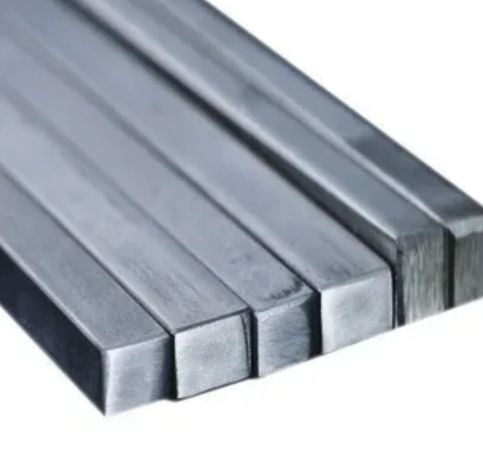

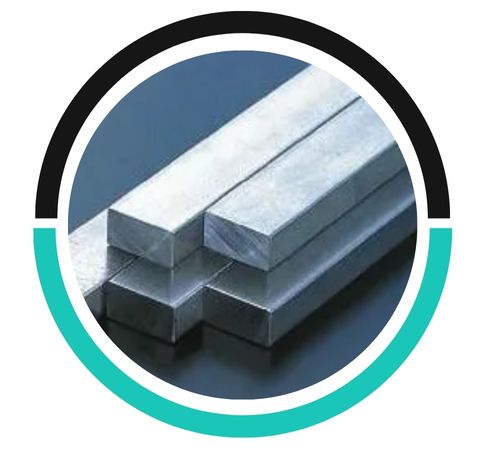

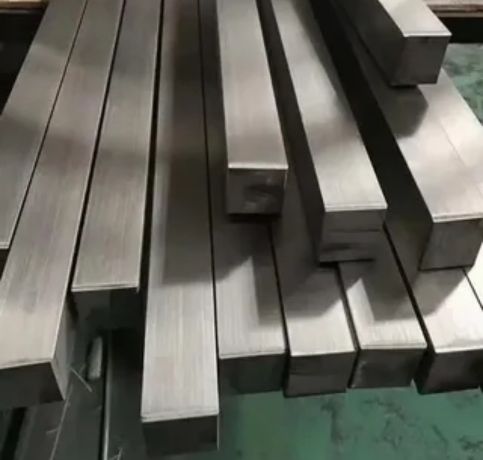

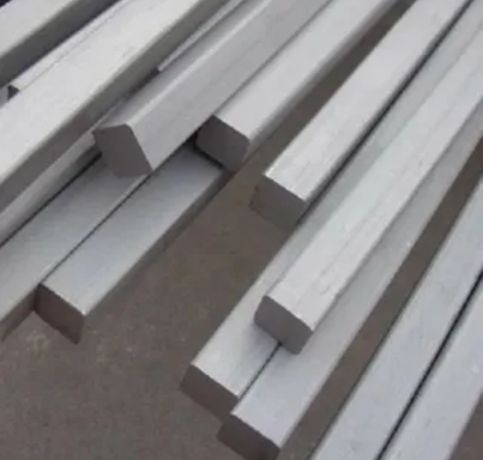

Stainless Steel 347 Square Bars and Rods are produced using a columbium (niobium)-stabilized austenitic stainless steel alloy with 17–19% chromium and 9–13% nickel. This alloy offers good resistance to intergranular corrosion, especially after welding, and renders the material suitable for service at high temperatures. The bars provide tensile strength of around 485 MPa, yield strength of 170 MPa, and elongation of around 40%. The square profile provides structural uniformity and is simple to machine, weld, and fabricate. Stainless Steel 347 is non-magnetic in the annealed condition and maintains its mechanical properties in thermal cycling applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

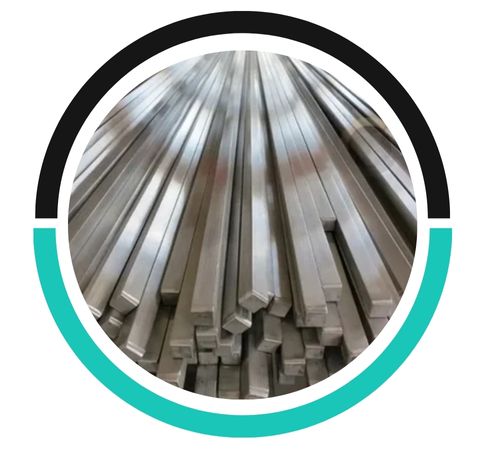

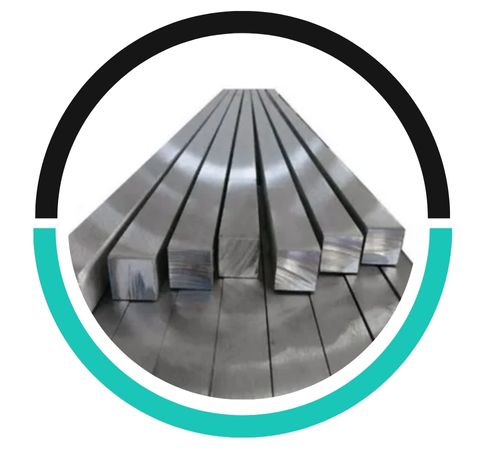

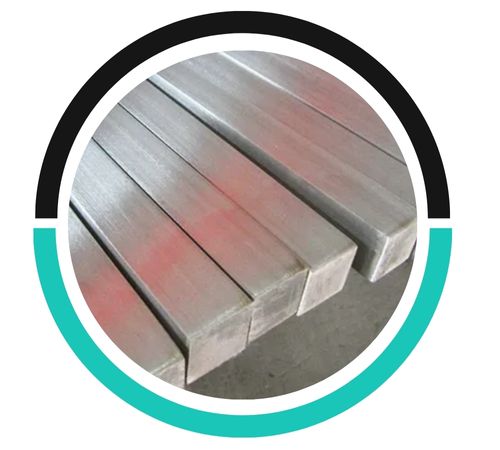

Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 347 | 0.08 max. | 17.0 – 19.0 | 2.00 max. | 9.0-13.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 347 | 7.96 | 1450 ℃ | 515 | 205 | 40 | 201 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 347 | 1.4961 | S34700 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Square Bars and Rods of Stainless Steel 347 are used extensively in applications that need high-temperature stability and corrosion resistance. Typical applications involve support frames, brackets, fasteners, and heat exchanger structural components, pressure vessels, boiler components, and chemical processing equipment. Square shape is best used where uniform load distribution and assembly ease are a requirement. Stainless Steel 347 is especially for use in situations involving frequent thermal cycling or where parts need to be welded and have to retain a carbide precipitation resistance. Its strength, durability, and weldability blend together make it an ideal choice for higher engineering and fabrication work.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
