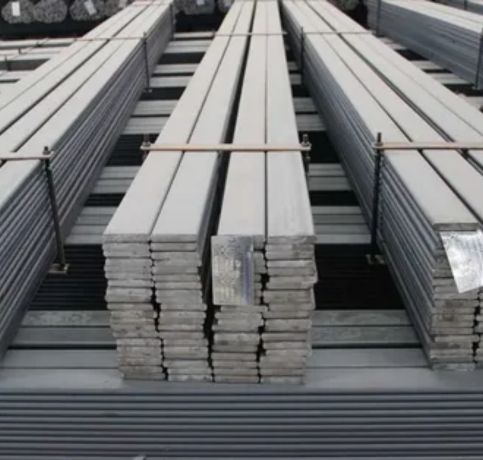

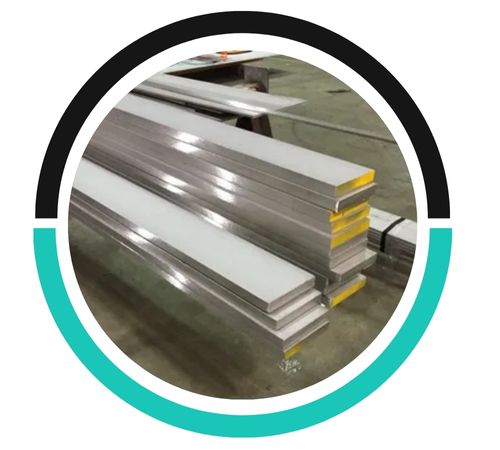

Louis Metals is a well-known Houston, USA-based supplier of Stainless Steel 904L Flat Bars providing optimum performance solutions for corrosive environments. Grade 904L is austenitic stainless steel that exhibits resistance against sulfuric, phosphoric, and acetic acids. Our flat bars have perfect surface finish, size accuracy, and higher mechanical strength. Made to ASTM A276 standards, they can be used in structural, architectural, as well as pressure-containing applications. Louis Metals offers 904L flat bars in multiple widths and thicknesses, cut to dimension, and finished to satisfy strict customer specifications in chemical processing, marine, and industrial production applications.
904L flat bars comprise 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and 1–2% copper. The low-carbon steel contains tensile strength of 490–710 MPa and yield strength of approximately 220 MPa. It is weldable, not magnetic, and extremely resistant to crevice corrosion, pitting, and stress corrosion cracking. 904L is not affected by sub-zero temperatures in terms of toughness and is well suited for conditions where there are strong reducing acids. Louis Metals provides consistent mechanical properties, flatness, and uniform surface finish on each bar.
| Standard | ASTM B649, ASME SB649 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |

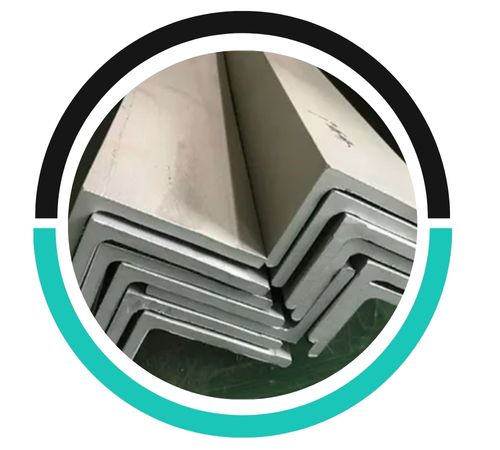

| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Mo | Cr | Cu | C | Mn | Si | P | S |
| 904L | 23 – 28 | 4 – 5 | 19 – 23 | 1 – 2 | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | BS | KS | EN |
| 904L | 1.4539 | N08904 | Z2NCUD31-20AZ | SUS 890L | 904S13 | STS 317J5L | X1NiCrMoCu25-20-5 |
Stainless Steel 904L Flat Bar is widely used in chemical processing, oil and gas, marine, pharmaceutical, and pulp and paper industries due to its exceptional corrosion resistance, particularly in acidic, chloride-rich, and high-stress environments.
Stainless Steel 904L offers superior corrosion resistance compared to standard austenitic stainless steels, excelling in harsh environments with strong acids (sulfuric, phosphoric) and chloride exposure, due to its high nickel, chromium, and molybdenum content, reducing pitting and stress corrosion.
Yes, Stainless Steel 904L Flat Bar is highly suitable for marine environments due to its excellent resistance to chloride-induced pitting, crevice corrosion, and stress corrosion cracking, making it ideal for shipbuilding, seawater equipment, and coastal structural applications.
904L Stainless Steel Flat Bars are commonly used as structural supports, base plates, architectural panels, and frames for equipment in chemicals and maritime. They can be employed for corrosive applications like sulfuric acid storage facilities, desalination plants, and offshore oil platforms. In pharmaceuticals and food processing, 904L flat bars provide a hygienic, non-reactive surface solution for contact areas. These bars are also the best for flanges, tanks, heat exchangers, and ornamental purposes where appearance and corrosion resistance go hand in hand. Louis Metals provides customized flat bars for precision–based work with long-lasting performance in harsh operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
