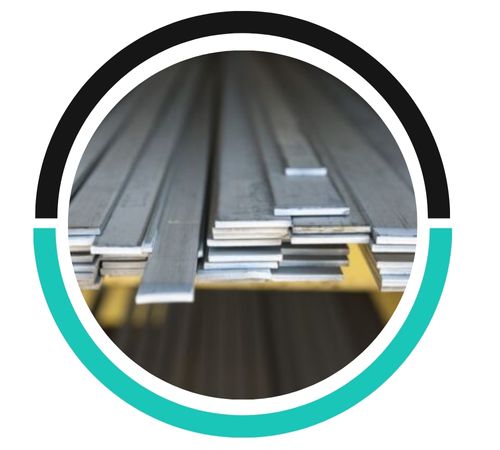

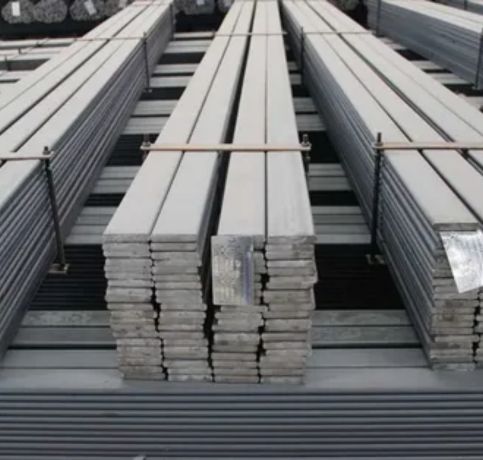

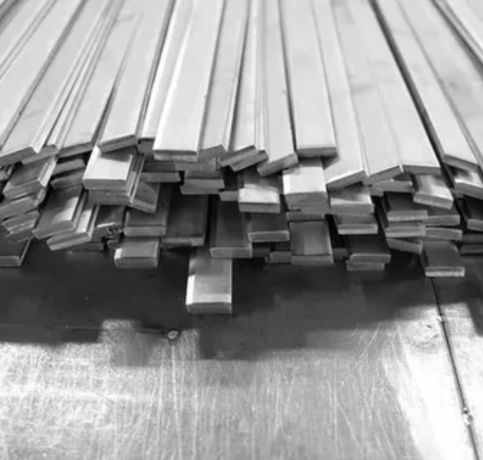

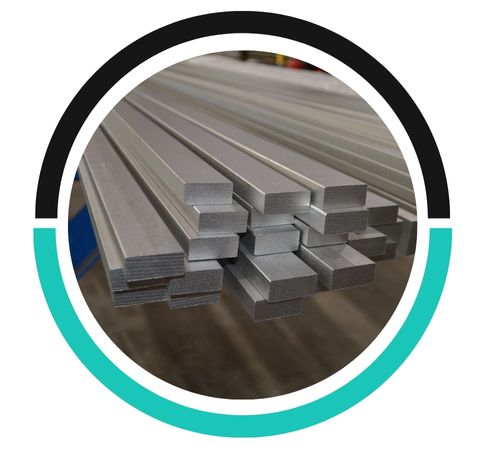

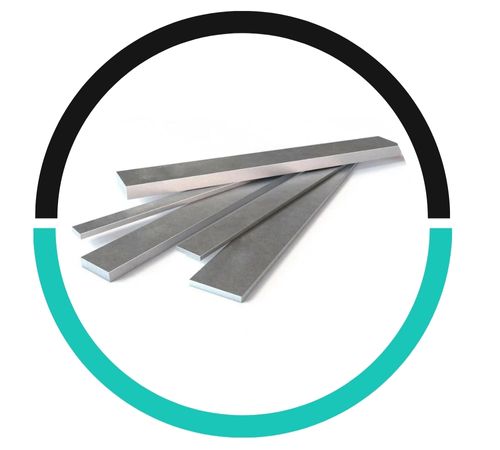

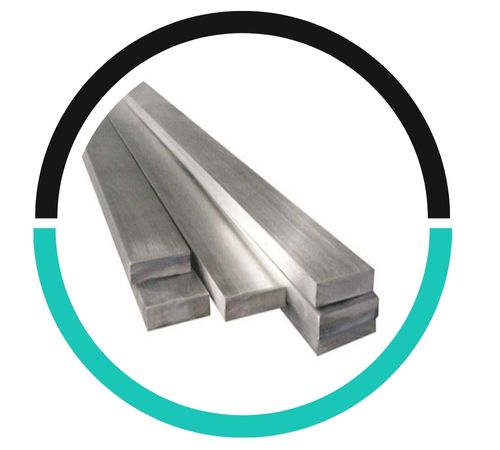

Louis Metals is a reputable stainless steel producer and supplier in Houston, USA, providing quality Stainless Steel 316L Flat Bars engineered for optimal corrosion resistance and durability. Produced with high precision and international standard specifications, the flat bars are well-suited to be used in chemical processing, pharmaceutical, marine, and food manufacturing applications. Louis Metals offers standard and custom sizes to suit various industrial requirements, with quick delivery and assured performance. 316L flat bars from Louis Metals are a reliable choice for harsh conditions, as they are renowned for their great surface finish, strength, and accuracy in dimensions.
Stainless Steel 316L Flat Bar is a low carbon, molybdenum alloyed austenitic stainless steel with a composition of around 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The lower carbon content reduces carbide precipitation during welding, improving corrosion resistance of welded structures. These bars provide a tensile strength of approximately 485 MPa, yield strength of 170 MPa, and elongation of approximately 40%. 316L is non-magnetic in the annealed form and possesses good weldability, formability, and pitting and crevice corrosion resistance, particularly in chloride-enriched or marine environments. Its flat form offers equal thickness, so it is applicable to both structural and aesthetic purposes.
Standard : ASTM A276, ASME SA276
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Flat Bar Size : 2mm ~ 100mm
Thickness : 1/8″ – 3″
Width : 3/8” – 8”

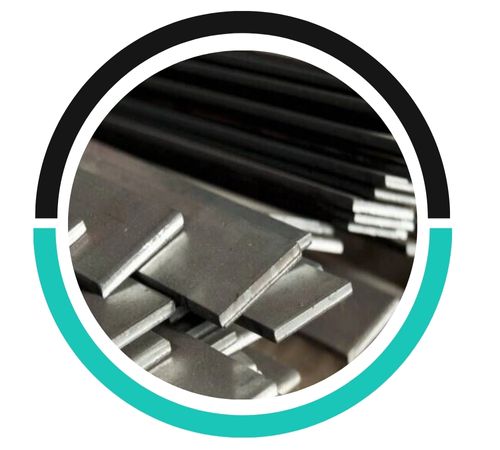

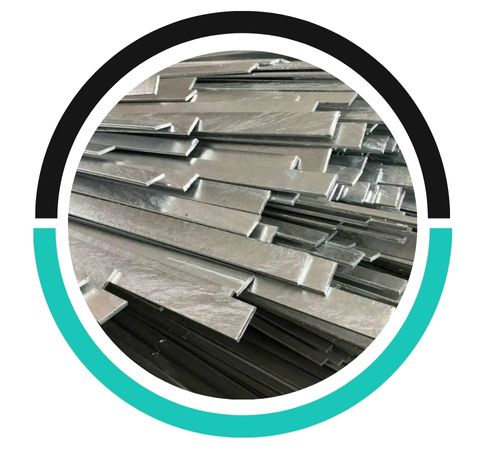

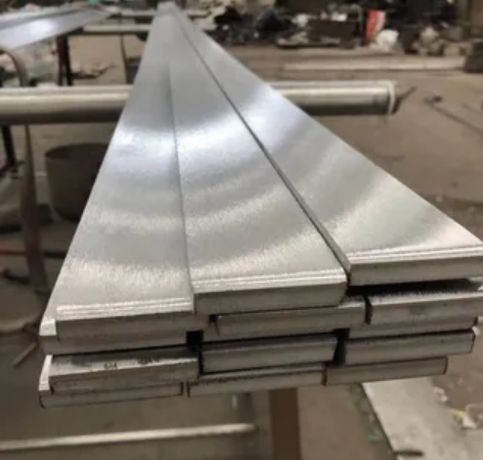

finish : Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316L Flat Bar finds extensive use in applications where there is high need for corrosion resistance, hygiene, and mechanical strength. It is generally used in support frames, brackets, base plates, structural shapes, and equipment fabrication in marine, food, beverage, and pharmaceutical environments. Its molybdenum content provides better resistance to corrosive chemicals and seawater and is therefore best suited for coastal and offshore conditions. Its low carbon content makes it stable under welding and heat exposure. 316L flat bars are also appropriate for applications in architecture and medicine where long performance, low maintenance, and a clean appearance are required.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
