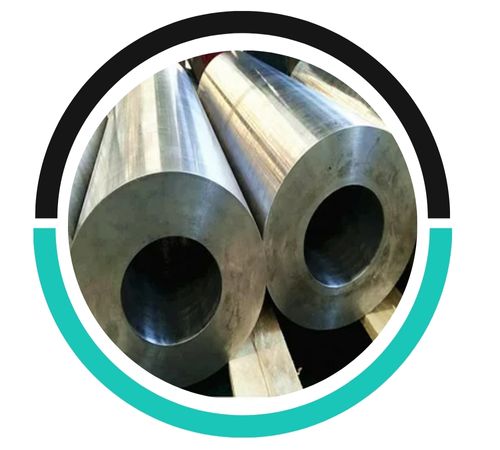

Louis Metals is a well-known Stainless Steel 420 Hollow Bars manufacturer and supplier in Houston, Texas, USA, known for supplying high-quality stainless steel products that suit a range of industrial specifications. With state-of-the-art manufacturing facilities and stringent quality control, Louis Metals offers SS 420 hollow bars that offer a blend of corrosion resistance, strength, and machinability. Louis Metals supplies these bars in different sizes and shapes as per customer requirements in different industries such as tooling, engineering, and manufacturing. Louis Metals’ Stainless Steel 420 hollow bars are dependable due to their hardness, durability, and performance in challenging applications that require strength and precision.
Stainless Steel 420 Hollow Bars are martensitic stainless steels with a composition of primarily Chromium (12–14%), Carbon (0.15–0.40%), and traces of elements such as Manganese, Silicon, Phosphorus, and Sulfur. This composition offers good hardness and reasonable corrosion resistance. SS 420 provides tensile strength of 700–900 MPa, yield strength of about 500 MPa, and hardness of up to 50 HRC when heat-treated. The ductility is fair and is attracted to magnets in both the annealed and hardened conditions. SS 420 possesses all these characteristics rendering it appropriate for applications where high mechanical strength, good wear resistance, and minimal corrosion exposure are needed.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 420 | 0.15 | 14.0 | 1.00 | – | 0.04 | 0.03 | 1.00 |
| Element | Tensile Strength | Yield Strength | Elongation | Hardness |
| SS 420 | 95,000 | 50,000 | 25 | 175 |
| Hollow Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |
Stainless Steel 420 Hollow Bars are used widely in industries where hard, wear-resistant material needs to be used for mechanical and structural applications. Common uses include the manufacturing of shafts, bushings, surgical instruments, gear parts, pump shafts, and fasteners. Due to ease of machinability in the annealed state and hardness after heat treatment, SS 420 is used in tooling applications such as molds and dies. In the oil and gas sector, it‘s used for downhole equipment and valve components. The hollow design saves weight without compromising on strength, making it a more suitable choice in high–precision applications with lower material usage.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
