Louis Metals is a well-established stainless steel manufacturer and supplier in Houston, USA, producing high-grade Stainless Steel 316 Hollow Bars for performance in corrosive and high-stress applications. With precise manufacturing and conformity with global standards, these hollow bars are recognized for their strength, stability, and remarkable corrosion resistance. Louis Metals supplies a broad spectrum of industries such as chemical processing, marine, pharmaceutical, and food manufacturing. The organization supplies standard and custom sizes to suit varied project requirements and provides reliable service, prompt delivery, and superior quality products in domestic and international markets.

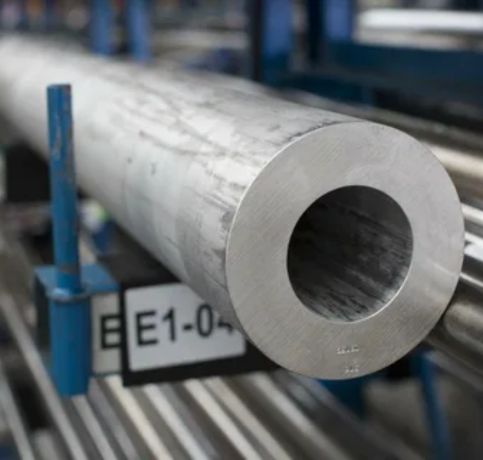

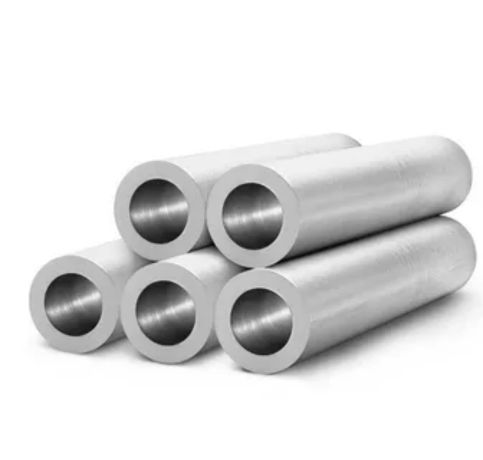

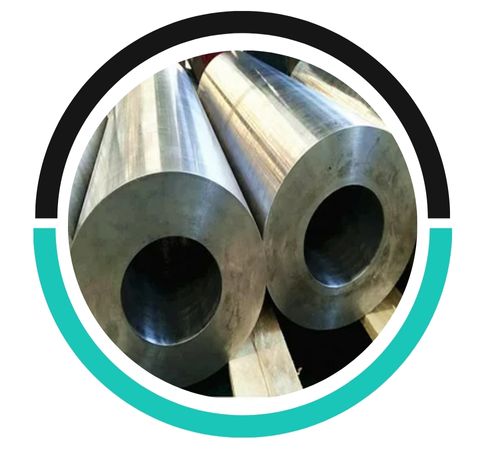

Stainless Steel 316 Hollow Bar is an austenitic chromium-nickel-molybdenum stainless steel with a composition of about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. Such a composition improves resistance to pitting and crevice corrosion, especially in environments containing chlorides. It has a tensile strength of approximately 515 MPa, yield strength of 205 MPa, and elongation of about 40%. It has a hollow structure that enables minimized material use and weight while ensuring structural integrity. 316 stainless steel does not magnetize when in the annealed state and has good weldability, formability, and opposition to many acids and marine environments.
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Round Bar Size | 3mm ~ 800mm |
| Square Bar Size | 4mm x 4mm ~ 100mm x 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm x 20mm x 20mm ~ 12mm x 100mm x 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2 – 3 | 10 – 14 | 0.1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
Stainless Steel 316 Hollow Bar finds broad application in situations where strength, corrosion resistance, and weight saving are critical. Typical applications include shafts, rollers, piping fittings, marine equipment, heat exchanger tubes, and process hardware in food, pharmaceutical, and petrochemical processing facilities. Its resistance to hostile chemicals, seawater, and high-temperature conditions makes Stainless Steel 316 Hollow Bar a prime choice for offshore platforms and sanitary use. The tubular structure also lends itself to machining into specialized pieces with less material waste and expense. Stainless Steel 316 Hollow Bar is a reliable option for those critical applications that demand long service life and low maintenance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
