Louis Metals is a prominent stainless steel producer and distributor from Houston, USA, providing premium Stainless Steel 316L Hollow Bars for uses demanding the best corrosion protection and structure. Produced to international standards, these hollow bars have been renowned for their strength, accuracy, and resilience against extreme conditions. Louis Metals caters to marine, pharmaceutical, chemical processing, and food manufacturing industries. With an emphasis on customer satisfaction and reliability, the company provides standard and custom sizes, shipping products that address the individual needs of customers in domestic and international markets.

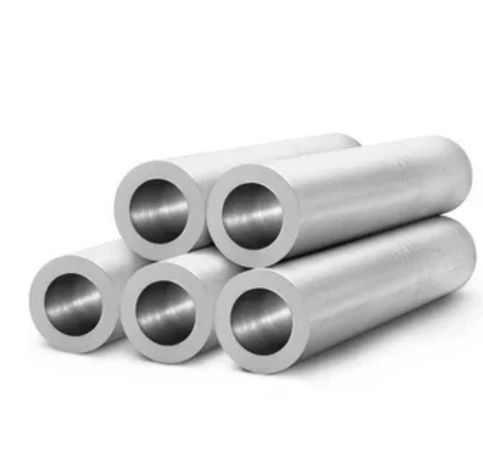

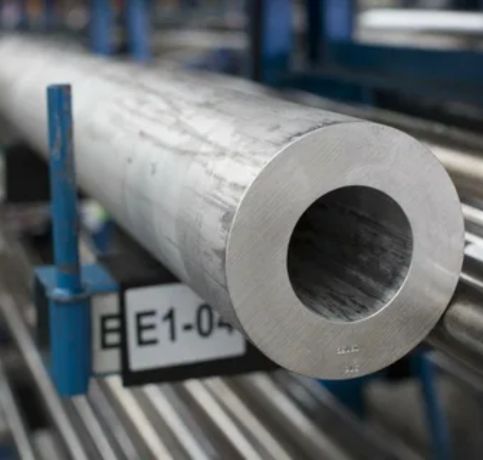

Stainless Steel 316L Hollow Bar is a molybdenum-bearing low-carbon austenitic stainless steel with around 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The low carbon level improves resistance to sensitization upon welding, and it is suitable for welded applications. It has a tensile strength of approximately 485 MPa, yield strength of 170 MPa, and elongation of approximately 40%. Its hollow shape keeps weight low with outstanding strength and corrosion resistance. 316L is non-magnetic in the annealed state and is highly weldable, formable, and resistant to crevice corrosion and pitting in chloride environments.
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Round Bar Size | 3mm ~ 800mm |
| Square Bar Size | 4mm x 4mm ~ 100mm x 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm x 20mm x 20mm ~ 12mm x 100mm x 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2 – 3 | 10 – 14 | 0.1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
Stainless Steel 316L Hollow Bar finds extensive application in industries requiring corrosion resistance and mechanical stability. Its applications are conventional process piping, marine hardware, equipment used in pharmaceuticals, heat exchanger parts, and structural components in food and beverage plants. Its hollow cross-section allows it to find useful application where weight reduction can be achieved without a loss of strength, i.e., in shafts, rollers, and machined parts. Resistance to chemical attack and simple fabricability provide the alloy with a high level of preference for applications where there is exposure to seawater, acidic chemicals, or sterilization. Stainless Steel 316L Hollow Bar guarantees long-term durability in harsh operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
