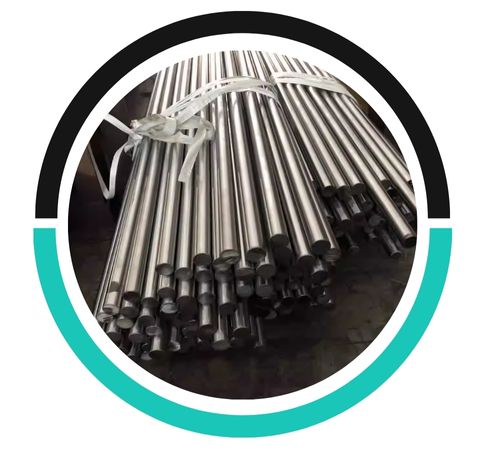

Louis Metals provides high-performance Stainless Steel 904L Round Bars and Rods from its Houston plant, offering exceptional corrosion resistance for hostile industrial settings. Grade 904L (UNS N08904) is an austenitic stainless steel with high nickel, molybdenum, and copper content, providing outstanding resistance to strong acids and chlorides. Our 904L round bars are manufactured to ASTM A276/A479 standards and are available in various diameters, finishes, and custom lengths. With superb strength, weldability, and dimensional accuracy, Louis Metals provides trusted, corrosion-resistant solutions to leading industries like chemical processing, marine, pulp & paper, and pharmaceutical production.
Stainless Steel 904L round bars contain 19–23% chromium, 23–28% nickel, 4–5% molybdenum, 1–2% copper, and low carbon (<0.02%). They exhibit tensile strength of up to 710 MPa and yield strength of approximately 220 MPa. The alloy is magnetically non-reactive and shows exceptional resistance to crevice, pitting, and stress corrosion cracking in acidic and chloride media. It retains high strength at high temperature and is weldable and formable with ease. Louis Metals maintains tight tolerances and fine surface finishes on all 904L round bars to ensure consistent quality and machinability.
| Standards | ASTM / ASME |
| Designation | B 649, SB 649 |
| Grade | 904L Round Bars and Rods 904L Round Bars and Rods: ASTM B 649, ASME SB 649 |
EN/DIN | 1.4539 X1NiCrMoCu25-20-5 |
|---|---|
AFNOR | Z2CNDU25.20 |
UNS | N08904 |
AISI | 904L / F904L |
BS | 904S13 |
SS | 2562 |
OTHER | ASTM A182 ASTM A262 ASTM A479 ASTM B649 / ASME SB649 DIN 17440 EN10088-3 EN10272 NACE MR01-75 / ISO 15156 SEW 400-VdTÜV421 |
BRANDS | URANUS B6™ VLX904™ AL-904L™ CRONIFER 1925™ 2RK65™ |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of 904L Stainless Steel Bars 2000 mm up to 6000 mm available
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 904L.0 |
Yes, Stainless Steel 904L Round Bars/Rod can be easily welded, machined, and fabricated, offering excellent work ability due to its high nickel and chromium content, ensuring durability and resistance to corrosion.
Yes, Stainless Steel 904L Round Bars/Rod can be used at high temperatures, typically up to 1000°F (537°C), maintaining excellent corrosion resistance and strength in elevated thermal environments.
Yes, Stainless Steel 904L Round Bars/Rod can be fully recycled without losing quality. Stainless steel is highly recyclable, making it an eco-friendly material for various applications.
904L Round Bars and Rods have applications in heat exchangers, tanks, and piping systems for chemical plants that process sulfuric, phosphoric, and acetic acids. 904L is best suited for marine hardware, desalination systems, and offshore platforms subject to saltwater exposure. In the pharmaceutical and food processing sectors, 904L provides corrosion-free, hygienic solutions for clean rooms. Round bars also have applications in pumps, valves, and shafts where strength and corrosion resistance are both necessary. Louis Metals offers 904L rods in cut–to-length, ready for machining and fabrication in severe and high-purity service.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
