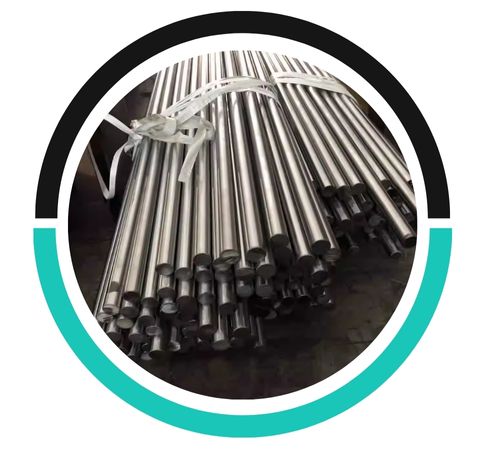

Louis Metals, a reputable stainless steel manufacturer and supplier located in Houston, USA, proudly offers top-quality Stainless Steel 317L Round Bars and Rods. These products are renowned for their exceptional corrosion resistance and strength, especially in harsh chemical environments. SS 317L is a low-carbon, high-molybdenum austenitic stainless steel specifically engineered to combat pitting, crevice corrosion, and stress corrosion cracking in acidic and chloride-heavy conditions. Our 317L round bars and rods are meticulously crafted to meet the stringent demands of industries such as chemical, pharmaceutical, marine, and pulp & paper. At Louis Metals, we guarantee high-performance materials with a flawless finish, precise tolerances, and quick delivery for even the most challenging industrial applications.
Stainless Steel 317L Round Bars and Rods are composed of 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, with a maximum carbon content of 0.03% to avoid sensitization during welding. This alloy boasts a tensile strength ranging from 515 to 760 MPa and a yield strength of approximately 205 MPa, along with impressive elongation and ductility. It excels in resisting chemical attacks, particularly from sulfurous, acetic, formic, and citric acids. Additionally, 317L performs admirably in high-chloride environments, providing superior corrosion resistance compared to 316L. Its low carbon content not only enhances weldability but also reduces the risk of intergranular corrosion after welding or exposure to heat.
Standard : 317L / 1.4438
Range : 3.17mm to 350mm dia
Designation : ASTM A276, ASME SA276
Finish : Bright, Black, Polish
Thickness: 4.0mm – 100mm
Type: Bar, Bright Bar, Black Bars, Hex Bar, Square Bar, Rods, Polish Bar, Forged Bar, Round Bar
Length : Random, Fix & Cut Length
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Weight (kg/ft) | 0.20 | 0.50 | 0.30 | 0.69 | 0.60 | 1.50 | 1.00 |
|---|---|---|---|---|---|---|---|
| Size(mm) | 10 x 10 | 14 x 14 | 12 x 12 | 17 x 17 | 16 x 16 | 25 x 25 | 20 x 20 |
| Weight (kg/ft) | 2.40 | 4.22 | 3.80 | 6.72 | 0.60 | 9.50 | 7.50 |
| Size(mm) | 32 x 32 | 42 X 42 | 40 x 40 | 53 X 53 | 50 x 50 | 63 x 63 | 56 x 56 |
| Standard | SS 317L |
| UNS | S31703 |
| WERKSTOFF NR. / DIN | 1.4438 |
Stainless Steel 317L Round Bars and Rods are perfect for applications that involve aggressive chemicals, chlorides, or acidic conditions. They find extensive use in chemical and petrochemical processing, desalination plants, marine components, food and beverage production, and pharmaceutical manufacturing. 317L is frequently utilized in heat exchangers, evaporators, reaction vessels, and piping systems where outstanding corrosion resistance and mechanical integrity are essential. Its capability to endure harsh environments while maintaining strength makes it a go-to choice for demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
