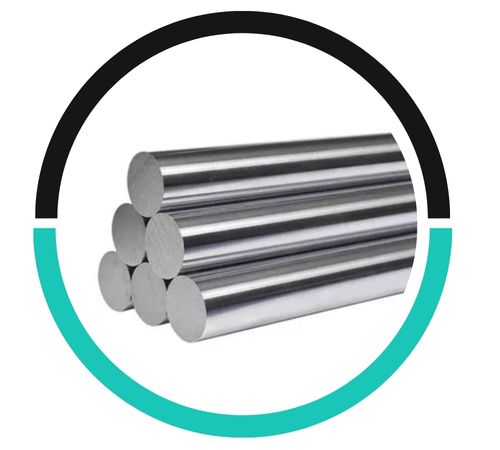

Luois Metals is a reliable manufacturer and supplier of top-notch Stainless Steel 431 round bars and rods, proudly based in Houston, USA. This grade of stainless steel is martensitic, which means it boasts impressive strength, outstanding corrosion resistance, and solid toughness, even when hardened. Our 431 stainless steel bars are precision-machined and heat-treated to meet the rigorous standards required in aerospace, marine, and chemical industries. Adhering to ASTM A276 and A479 specifications, Luois Metals provides 431 rods in various diameters and lengths, ensuring quick turnaround times without compromising on quality.
Stainless Steel 431 is an iron-chromium alloy that contains about 15.5–17.5% chromium, 1.25–2.5% nickel, and a maximum of 0.2% carbon. It strikes a great balance with high tensile strength (up to 850 MPa), yield strength (around 520 MPa), and hardness, particularly after heat treatment. Additionally, it offers good resistance to oxidation and mild corrosive environments. SS 431 can be hardened through heat treatment and has moderate machinability and weldability. This alloy is magnetic in all conditions and showcases excellent mechanical performance in marine, high-pressure, and structural applications.
Stainless Steel Round Bar Specification : ASTM A276 / A479, ASME SA276 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length
Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| 431 | Max | Min |
| C | 0.20 | – |
| Cr | 17.00 | 15.00 |
| Fe | Balance | – |
| Mn | 1.00 | – |
| Ni | 2.50 | 1.25 |
| P | 0.040 | – |
| S | 0.030 | – |
| Si | 1.00 | – |
|
Typical Mechanical Properties at Elevated Temperatures, Hardened at 1010oC and Tempered at 30oC Above Working Temperature |
|||||||||||
|
Tempering Temperature oC |
510 |
570 |
620 |
||||||||
|
Working Temperature oC |
480 |
540 |
590 |
||||||||
|
Tensile Strengt Mpa |
1350 |
720 |
435 |
||||||||
|
Elongation in 50mm % |
15 |
20 |
26 |
||||||||
|
Room Temperature Hardness after Test |
HB |
440 |
330 |
280 |
|||||||
|
Rc |
47 |
37 |
30 |
||||||||
|
Grade |
UNS No |
Old British |
Euronorm |
Swedish SS |
Japanese JIS |
||
|
BS |
En |
No |
Name |
||||
|
431 |
S43100 |
431S29 |
57 |
1.4057 |
X17CrNi16-2 |
2321 |
SUS 431 |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
431 |
7800 |
200 |
10.2 |
12.1 |
– |
20.2 |
– |
460 |
720 |
Stainless Steel 431 round bars and rods find their way into a variety of applications that demand a mix of high strength, corrosion resistance, and impact toughness. You’ll often see them used in marine shafts, valve components, pump parts, bolts, fasteners, and aerospace structural components. They excel in mildly corrosive environments like seawater and certain chemicals, making them perfect for the marine, oil & gas, and chemical processing sectors. SS 431 is also utilized in automotive and mechanical engineering where high-strength, heat-treated steels are essential. Luois Metals provides custom lengths, diameters, and surface finishes tailored to your specific project needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
