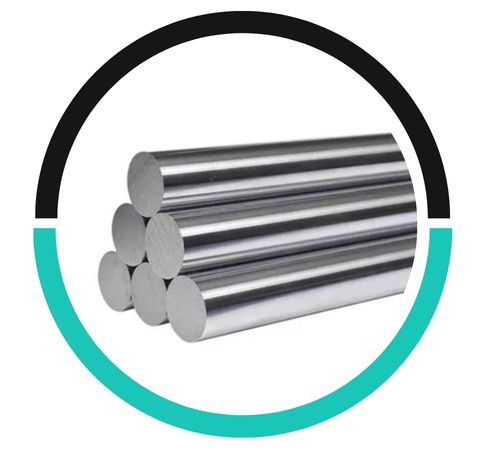

Louis Metals offers premium Stainless Steel 440C Round Bars and Rods from its Houston production center. These are known for high strength, wear resistance, and edge retention. 440C (UNS S44004) is a high-carbon martensitic stainless steel that achieves one of the highest hardness levels among stainless alloys. These round bars are great for bearing applications, blade manufacturing, tooling, and high-performance mechanical parts. Manufactured to ASTM A276 and A484 standards, our 440C rods come in annealed or hardened states. Louis Metals delivers custom-cut bars and rods with precise dimensional accuracy for use in high-stress and abrasive environments.
440C round bars consist of 16–18% chromium and 0.95–1.20% carbon, with small amounts of molybdenum and manganese. The alloy can be heat treated to reach hardness levels up to 60 HRC, offering tensile strength of over 2000 MPa. While its corrosion resistance is lower than austenitic grades, it is sufficient for light acidic and water exposure in hardened condition. The material is magnetic, extremely wear-resistant, and maintains excellent dimensional stability after machining. Louis Metals supplies 440C bars with straightness and high polishability for tooling, bearing, and blade uses.
Stainless Steel Round Bar Specification : ASTM A276 / A479, ASME SA276 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length
Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
|
SS 440C |
Min |
Max |
|---|---|---|
|
Si |
– |
1.00 |
|
C |
0.95 |
1.20 |
|
Mo |
0.00 |
0.75 |
|
P |
– |
0.04 |
|
Ni |
– |
1.00 |
|
Mn |
– |
1.00 |
|
Cr |
16.00 |
18.00 |
|
S |
0.15 |
0.03 |
|
Element |
SS 440C |
|---|---|
|
Tensile (UTS)N/mm² |
1965 |
|
Temp°C |
20 |
|
Reductionof Area |
10 |
|
Elongation(50.8mm) %) |
2 |
|
0.2% YieldN/mm² |
1896 |
|
HardnessHRc |
57 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
JIS |
|---|---|---|---|
|
SS 440C |
S44004 |
1.4125 |
SUS 440C |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|
Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |
Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |
Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm). 440C Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm.
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
Yes, Stainless Steel 440C Round Bars/Rods can be used in cryogenic applications. Their high hardness and strength remain effective at low temperatures, making them suitable for use in cryogenic environments.
Yes, Stainless Steel 440C Round Bars/Rods require regular inspection to ensure their structural integrity, especially in high-stress applications, to detect any signs of wear, corrosion, or cracks over time.
Yes, Stainless Steel 431 Round Bars/Rods can be welded, although preheating and post-weld heat treatment are recommended to prevent cracking and maintain the material's mechanical properties.
440C Round Bars and Rods are used in high-load bearings, blade blanks, punches, nozzles, surgical tools, and measuring instruments. The aerospace and defense industries utilize them in high-precision actuators, shaft pins, and locking systems. In industrial manufacturing, 440C rods serve as valve stems, piston rods, and wear inserts. Their high hardness and polishability make them ideal for mold bases and die components. Louis Metals offers heat-treated or annealed round bars customized for machining or finishing, ensuring top performance in demanding applications that require a mix of strength, wear resistance, and moderate corrosion protection.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
