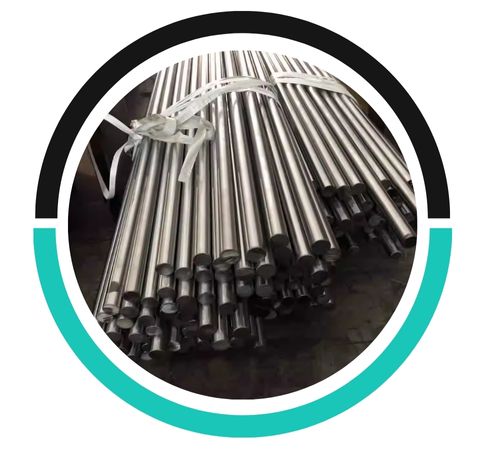

Louis Metals is a reliable stainless steel producer and distributor headquartered in Houston, USA, supplying high-quality Stainless Steel 316L Round Bars and Rods for applications in corrosive, high-performance industrial settings. Made with cutting-edge technology and stringent quality checks, these bars and rods are renowned for their superior corrosion resistance, strength, and dimensional tolerance. Louis Metals serves a broad spectrum of industries such as marine, chemical processing, pharmaceutical, and food manufacturing. Committed to quality and customer satisfaction, the company offers standard and custom sizes to address the particular requirements of projects in domestic and foreign markets.
Stainless Steel 316L Round Bar and Rods are produced from low-carbon, molybdenum-containing austenitic stainless steel alloy with a composition of about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The lower carbon content enhances weldability and reduces the probability of carbide precipitation upon welding. Bars possess tensile strength of about 485 MPa, yield strength of 170 MPa, and elongation of about 40%. 316L stainless steel is non-magnetic in the annealed state and offers superior pitting, crevice corrosion, and wide-range aggressive chemical resistance, especially in chloride-rich and marine conditions.
| Grade | Stainless Steel 316L (UNS S31603) |
|---|---|
| Specification | ASTM A276/ A479, ASME SA276/SA479 |
| Round bar size | Outside Diameter in the range of 4mm to 500mm |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Condition | Hardened & tempered, annealed |
| Technique | 316 Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Processing | Bar cutting to 650mm |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.3 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2 – 3 | 10 – 14 | 0.10 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
|
Type |
SIZES (mm) |
SIZES (Inches) |
ISO Tolerance |
|---|---|---|---|
|
Cold Drawn and Polish |
3.00 – 75.00 |
1/8″ – 3.00″ |
h8-h9-h10-h11 |
|
Cold Drawn and Ground |
10.00 – 75.00 |
5/6″ – 2.50″ |
h8-h9-h10-h11 |
|
Peeled and Polished |
40.00 – 150.00 |
1.50″ – 6.00″ |
h11, h11-DIN 1013 |
|
Peeled and Ground |
20.00 – 50.00 |
3/4″ – 2.00″ |
h9-h10-h11 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐032 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Round Bar Grade | Dimensions |
|---|---|
| Stainless Steel Round Bar 316L | 1/2 inch – 12 |
| Flat bar size | 18 meter |
| Square bar size | 1-2 inch |
| Round bar size | 1-2 inch,3-4 inch,2-3 inch |
| Hex Bar size | 0-1 inch,3-4 inch |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
