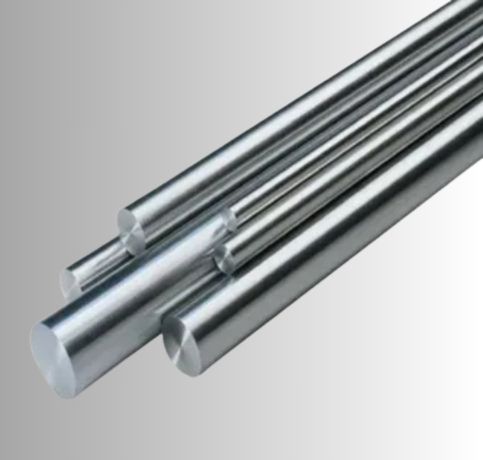

Luois Metals stands out as a top manufacturer and supplier of Aluminium 2024 T3511 bars and rods, proudly operating from our facility in Houston, USA. We’re known for our unwavering commitment to quality and precision, providing high-strength aluminium products that are engineered for critical structural applications. Aluminium 2024 T3511 is a heat-treated, high-performance alloy celebrated for its impressive fatigue resistance and strength-to-weight ratio. At Luois Metals, we offer 2024 T3511 bars and rods in a variety of sizes, specifically designed to meet the needs of aerospace, defense, and industrial sectors, all while ensuring reliable service, prompt delivery, and competitive pricing both domestically and internationally.
The composition of Aluminium 2024 T3511 bars and rods primarily includes aluminium with copper as the main alloying element, along with smaller amounts of manganese and magnesium. This unique blend results in exceptional tensile strength (up to 470 MPa) and yield strength (around 325 MPa), making it one of the strongest aluminium alloys on the market. The T3511 temper involves a process of solution heat treatment, stress relieving, and controlled stretching to enhance dimensional stability. While it may not be as corrosion-resistant as some other alloys, its strength and fatigue resistance make it perfect for high-stress structural applications where reducing weight is essential.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

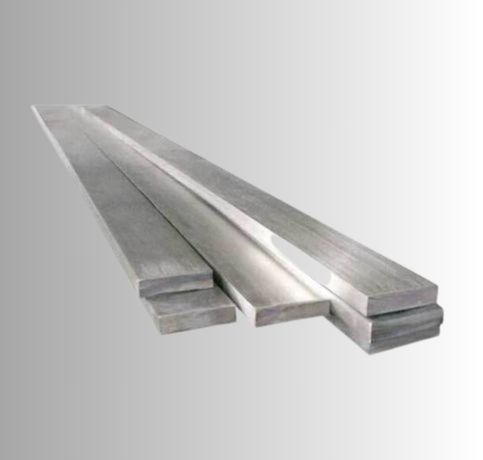

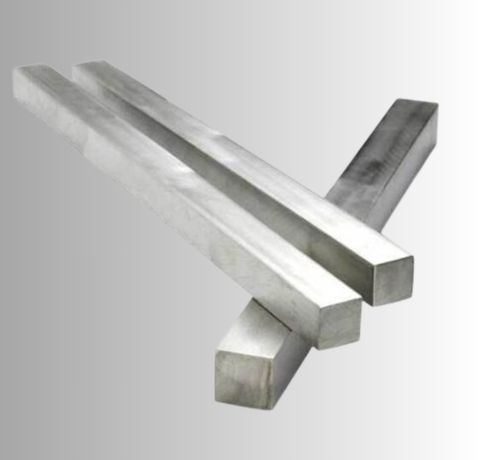

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2024 T3511 | A92024 | 3.1355 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Aluminium 2024 T3511 is generally not recommended for welding due to its susceptibility to cracking and reduced strength after welding. However, specialized techniques like TIG welding and using filler materials can be employed with caution.
Yes, Aluminium 2024 T3511 bars are recyclable. Aluminium is highly recyclable without losing quality, making it an eco-friendly material for sustainable manufacturing and reducing environmental impact.
Aluminium 2024 T3511 is prone to corrosion, particularly in harsh environments with high humidity or exposure to saltwater. It is highly susceptible to pitting and stress corrosion cracking, though protective coatings can help mitigate this.
Aluminium 2024 T3511 bars and rods find extensive use in the aerospace, defense, transportation, and high-performance engineering industries. Their remarkable strength and fatigue resistance make them ideal for components like aircraft fuselage parts, wing structures, and other load-bearing aerospace elements. In defense, they’re utilized in structural frames, vehicle armor systems, and missile components. In the automotive and motorsports sectors, they help cut down vehicle weight while ensuring rigidity and safety. Although they may be less resistant to corrosion, their performance in demanding, stress-bearing environments makes them a top choice for engineers.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
