Tool and Die Steel W1 Bars

Luois Metals stands out as a reliable manufacturer and supplier of Tool and Die Steel W1 Bars, proudly serving clients throughout Houston, USA. With a strong commitment to quality and precision, Luois Metals offers top-notch W1 steel bars that are perfect for demanding industrial applications. These bars are crafted using cutting-edge manufacturing techniques and rigorous quality control measures to guarantee exceptional performance, durability, and consistency. Whether you need them for tool-making, die production, or intricate machining tasks, Luois Metals has tailored solutions to fit a variety of specifications. With their technical know-how and responsive customer support, the company has built a solid reputation for reliability and excellence in the steel industry.

AISI W1 Tool Steel Round Bars Dealer in California, Tool Steel T72301 Bar Manufacturer in Houston, Chrome Moly Steel W1 Round Bars Supplier in Los Angeles, W1 Tool and Alloy Steel Bars Price List in USA, Die Steel W1 Bars Supplier in Texas, W1 Alloy Steel Round Bars Price Per Meter, ASTM A681 W1 Tool Steel Round Bars Size Chart, Tool and Die Steel T72301 Threaded Bar Price List in Texas, Alloy Steel W1 Rods Stockist in Houston, Die Steel Round Bar W1 Supplier in Texas

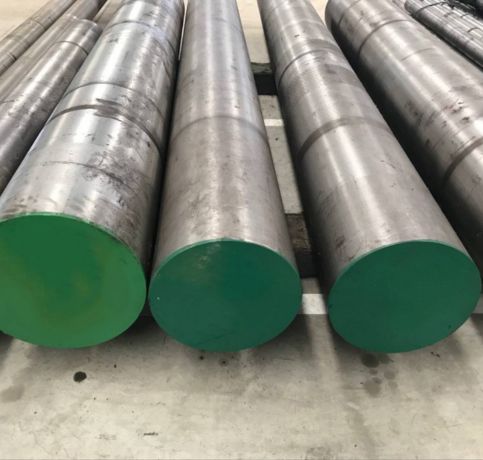

W1 Tool Steel Round Bar

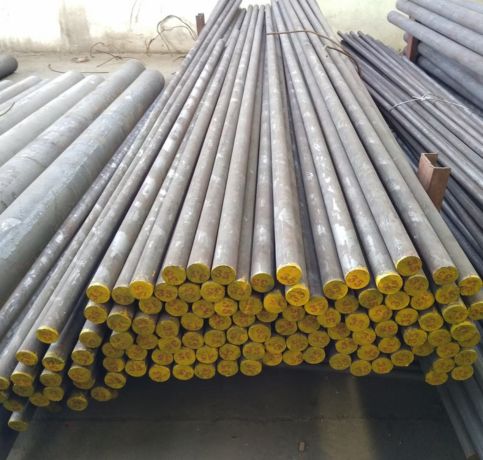

Die Steel W1 Rods

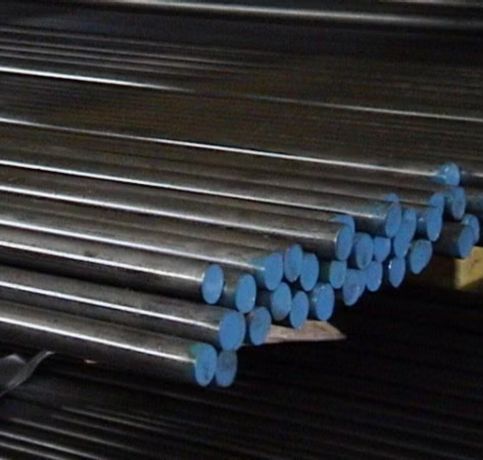

W1 Tool and Die Steel Bar

What is Tool and Die Steel W1 Bars?

Tool and Die Steel W1 Bars are high-carbon, water-hardening steels that contain around 0.90–1.05% carbon, along with manganese (0.20–0.40%) and trace amounts of silicon. This unique composition results in outstanding hardness after heat treatment. When fully hardened, W1 bars can achieve a Rockwell hardness of up to 64 HRC. They offer impressive compressive strength, good wear resistance, and fair toughness. The fine grain structure of the steel allows for precise machining and a consistent response to heat treatment, making it an excellent choice for tools that require a sharp cutting edge and stability under stress.

Tool Steel 1.1545 Round Bars Exporter in Texas, Alloy Steel W1 Round Bars Stockist in Houston, W1 Die Steel Alloy Steel Bars Supplier in Houston, SAE J437 Cold Drawn Bar Distributor in Houston, W1 Hot Rolled Alloy Steel Bar Stockist USA, High Quality W1 Cold Work Die Steel Round Bar Price in California, High-carbon Steel W1 Round Bars And Rods Price List, Tool Steel UNS T72301 Rods Supplier in Texas, Quenched & Tempered W1 Alloy Steel Bar Manufacturer in California

Tool and Die Steel W1 Bars Specifications

Standard : ASTM A681, ASME SA681
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Form : Round
Diameter : 10 mm ~ 900 mm
Size : 0.08 mm to 25.00 mm
Diameter Range : 0.040 mm – 12 mm (0.0016” – 0.4724”)
Application : Lathe Tools, Milling Cutter, Cutter Blades, Boring Tools, Twist drills, Milling Knives, Reamers, Taps, Metalcutting saws, Screw Cutting Tools, File Cutter’s Chissels, Drills, Hobs, Drill Bits, Tread cutting tools etc

Chemical Compositions of Tool and Die Steel W1 Bars

Element	Content (%)
C	0.70-1.50
Mn	0.10-0.40
Si	0.10-0.40
Cr	0.15
Ni	0.2
Mo	0.1
W	0.15
V	0.1
Cu	0.2
P	0.025
S	0.025

Mechanical Properties of Tool and Die Steel W1 Bars

Properties	Metric	Imperial
Tensile strength, ultimate	1680 MPa	244000 psi
Tensile strength, yield	1500 MPa	218000 psi
Poisson’s ratio (25°C)	0.27-0.30	0.27-0.30
Elongation at break	3.50%	3.50%
Bulk modulus	140 GPa	20300 ksi
Shear modulus	80.0 GPa	11600 ksi
Elastic modulus	190-210 GPa	27557-30458 ksi
Charpy impact, unnotched	86.0 J	63.4 ft-lb
Hardness, Brinell (converted from Rockwell C Hardness)	498	498
Hardness, Knoop (converted from Rockwell C Hardness)	558	558
Hardness, Rockwell C	50.0-51.0	50.0-51.0
Hardness, Vickers (converted from Rockwell C Hardness)	531	531
Machinability (based on AISI 1212 steel as 100% machinability)	40	40

You Need Our Support, to Have Any Projects?

Test Certificate

Why Louis Metals?

Packaging

Physical Properties of Tool and Die Steel W1 Bars

Properties	Metric	Imperial
Density	7.83 g/cm³	0.283 lb/in³
Melting point	1435°C	2615°F

Thermal Properties of Tool and Die Steel W1 Bars

Properties		Conditions
Properties		T (ºC)	Treatment
Thermal expansion	10.4 x 10^-6/ºC	20-100	–
Thermal conductivity	48.3 x W/mK	100	–

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Tool and Die Steel W1 Bars Types

ASME SA681 Tool Steel W1 Hot Forged Bars Exporter in Los Angeles, Stockist of W1 Die Steel Bars in Houston, UNS T72301 Round Bars Supplier in USA, ISO 4957 Round Bar Price List in Houston,High-chromium W1 Bars Exporter in Los Angeles , Tool and Die Steel W1 Bars Exporter in USA, Alloy Steel W1 Rods Supplier in Houston, CrMo W1 Cold Drawn Round Bars Manufacturer in Los Angeles , W1 Tool Steel Alloy Steel Round Bars Distributor in USA, Carbon Steel W1 Hot Rolled Round Bars Dealer in California

Frequently Asked Questions (FAQ)

Are Tool and Die Steel W1 Bars Environmentally Friendly?

Tool and Die Steel W1 bars are recyclable, reducing environmental impact. However, their production involves energy-intensive processes. Sustainable practices can enhance their eco-friendliness, such as using recycled materials and cleaner manufacturing methods.

How Do Tool and Die Steel W1 Bars Resist Corrosion?

Tool and Die Steel W1 bars are not highly resistant to corrosion, as they are high-carbon steels. They can rust when exposed to moisture, requiring proper maintenance, such as coating or regular oiling, to prevent corrosion.

Can Tool and Die Steel W1 Bars Be Used For Structural Applications?

Tool and Die Steel W1 bars are not ideal for structural applications due to their high carbon content, which makes them brittle and less ductile. They are better suited for tools, dies, and cutting applications where hardness and wear resistance are crucial. For structural applications, steels with better toughness and strength, like carbon or alloy steels, are preferred.

Tool and Die Steel W1 Bars Uses

W1 tool and die steel bars are utilized mainly in creating cutting tools, dies, and molds because of their high hardness, wear resistance, and ability to maintain sharp edges, even at elevated temperatures. Such bars are extensively used in the production of tools, such as drill rods, reamers, taps, and punches. Furthermore, they find applications in the construction of small precision parts, like bearings and inserts, which have good abrasion resistance. High carbon content of the steel enables easy hardening and tempering, thus ideal for applications demanding precision and durability under stress and extreme working conditions.

Our Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
