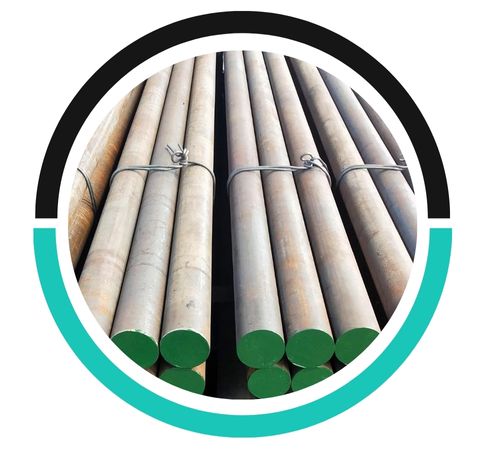

Tool and Die Steel A2 Bars

Louis Metals is a leading tool and die steel A2 bars manufacturer and supplier, exporting high-quality solutions from Houston, USA. A2 steel is an air-hardening tool steel with excellent dimensional stability, wear resistance, and toughness. Our A2 bars are manufactured to tight tolerances with a smooth fine surface finish, making them well-suited for applications that demand high precision. Louis Metals maintains uniform quality through strict metallurgical protocols and thorough inspections. Both hardness and ductility being so vital to long-term performance, these bars are relied upon in mold-making, tool fabrication, and precision machining applications.

AISI A2 Tool Steel Round Bars Dealer in California, Tool Steel T30102 Bar Manufacturer in Houston, Chrome Moly Steel A2 Round Bars Supplier in Los Angeles, A2 Tool and Alloy Steel Bars Price List in USA, Die Steel A2 Bars Supplier in Texas, A2 Alloy Steel Round Bars Price Per Meter, ASTM A681 A2 Tool Steel Round Bars Size Chart, Tool and Die Steel T30102 Threaded Bar Price List in Texas, Alloy Steel A2 Rods Stockist in Houston, Die Steel Round Bar A2 Supplier in Texas

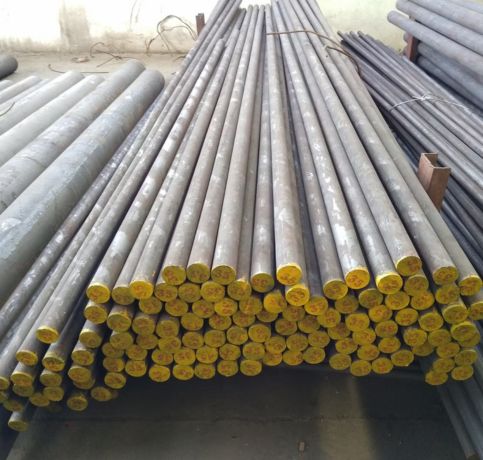

Die Steel A2 Rods

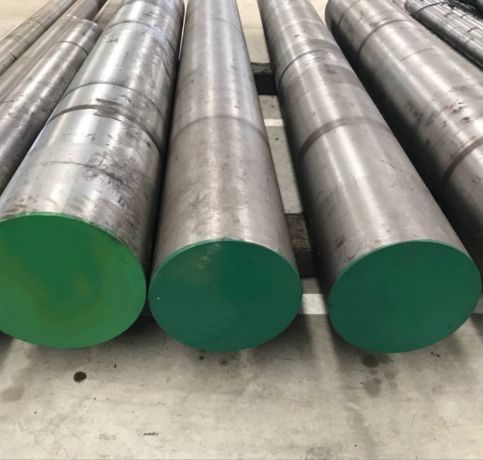

A2 Tool Steel Round Bar

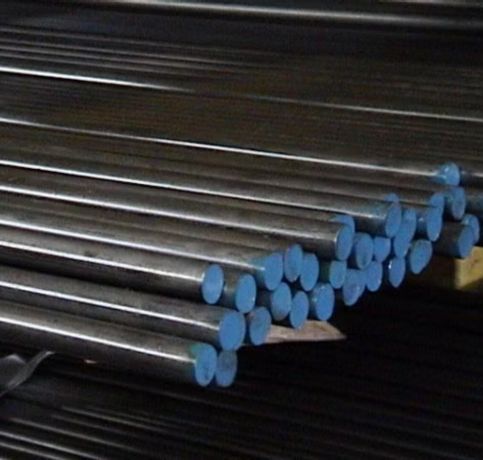

A2 Tool and Die Steel Bar

What is Tool and Die Steel A2 Bars?

Tool and Die Steel A2 Bars consist of a composition having about 5% chromium, 1% molybdenum, and 1% carbon. The alloy has good toughness and fair wear resistance. A2 steel attains a Rockwell hardness of 57–62 HRC through heat treatment. It is also notable for having high dimensional stability when undergoing heat processing, with tensile strength between 800–1000 MPa. Its air-hardening property minimizes distortion risks, thus being a material of choice for close-tolerance use. A2’s wear resistance, hardness, and machinability provide for a versatile use in different tooling applications.

Tool Steel 1.2363 Round Bars Exporter in Texas, Alloy Steel A2 Round Bars Stockist in Houston, A2 Die Steel Alloy Steel Bars Supplier in Houston, X100CrMoV5 Cold Drawn Bar Distributor in Houston, A2 Hot Rolled Alloy Steel Bar Stockist USA, High Quality A2 Cold Work Die Steel Round Bar Price in California, High-carbon Steel A2 Round Bars And Rods Price List, Tool Steel UNS T30102 Rods Supplier in Texas, Quenched & Tempered A2 Alloy Steel Bar Manufacturer in California

Tool and Die Steel A2 Bars Specifications

Standard : ASTM A681, ASME SA681
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Form : Round
Diameter : 10 mm ~ 900 mm
Size : 0.08 mm to 25.00 mm
Diameter Range : 0.040 mm – 12 mm (0.0016” – 0.4724”)
Application : Lathe Tools, Milling Cutter, Cutter Blades, Boring Tools, Twist drills, Milling Knives, Reamers, Taps, Metalcutting saws, Screw Cutting Tools, File Cutter’s Chissels, Drills, Hobs, Drill Bits, Tread cutting tools etc

Chemical Compositions of Tool and Die Steel A2 Bars

ASTM A681	C		Mn		P	S	Si		Cr		V		Mo
A2/T30102	0.95	1.05	0.40	1.00	0.03	0.03	0.10	0.50	4.75	5.50	0.15	0.50	0.90	1.40
DIN ISO 4957	C		Mn		P	S	Si		Cr		V		Mo
1.2363/X100CrMoV5	0.95	1.05	0.40	0.80	0.03	0.03	0.10	0.40	4.80	5.50	0.15	0.35	0.90	1.20
JIS G4404	C		Mn		P	S	Si		Cr		V		Mo
SKD12	0.95	1.05	0.40	0.80	0.03	0.03	0.10	0.40	4.80	5.50	0.15	0.35	0.90	1.20
BS 4659	C		Mn		P	S	Si		Cr		V		Mo
BA2	0.95	1.05	0.30	0.70	0.035	0.035	. . .	0.40	4.75	5.25	0.15	0.40	0.90	1.10

Mechanical Properties of Tool and Die Steel A2 Bars

Properties	Metric	Imperial
Hardness, Rockwell C (as air-hardened (63-65 HRC average), 60-62 HRC at 205°C, 59-61 HRC at 260°C, 58-60 HRC at 315°C, 57-59 HRC at 370°C and 425°C and 480°C, 56-58 HRC at 540°C, 50-52 HRC at 595°C, 42-44 HRC at 650°C)	64	64
Bulk modulus (typical for steels)	140 GPa	20300 ksi
Machinability (based on carbon tool steel)	65%	65%
Shear modulus	78.0 GPa	11300 ksi
Poisson’s ratio	0.27-0.30	0.27-0.30
Elastic modulus	190-210 GPa	27557-30457 ksi

You Need Our Support, to Have Any Projects?

Test Certificate

Why Louis Metals?

Packaging

Equivalent Grades of Tool and Die Steel A2 Bars

Country	USA	German	Japan	British
Standard	ASTM A681	DIN EN ISO 4957	JIS G4404	BS 4659
Grades	A2/T30102	1.2363/X100CrMoV5	SKD12	BA2

Thermal Properties of Tool and Die Steel A2 Bars

Properties		Conditions
Properties		T (°C)	Treatment
Thermal expansion	10.7 x 10^-6/ºC	20-100	–

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Tool and Die Steel A2 Bars Types

ASME SA681 Tool Steel A2 Hot Forged Bars Exporter in Los Angeles, Stockist of A2 Die Steel Bars in Houston, UNS T30102 Round Bars Supplier in USA, JIS SKD12 Round Bar Price List in Houston,High-chromium A2 Bars Exporter in Los Angeles , Tool and Die Steel A2 Bars Exporter in USA, Alloy Steel A2 Rods Supplier in Houston, CrMo A2 Cold Drawn Round Bars Manufacturer in Los Angeles , A2 Tool Steel Alloy Steel Round Bars Distributor in USA, Carbon Steel A2 Hot Rolled Round Bars Dealer in California

Frequently Asked Questions (FAQ)

What Is The Standard Annealing Temperature For Tool and Die Steel A2 Bars?

The standard annealing temperature for A2 tool and die steel bars is typically between 800°C to 850°C (1472°F to 1562°F), followed by slow cooling to relieve internal stresses and soften the material.

How Do Tool and Die Steel A2 Bars Resist Corrosion?

A2 tool and die steel bars resist corrosion through their high chromium content, forming a protective oxide layer that enhances resistance to rust and wear, especially in cold-work applications.

How Should Tool and Die Steel A2 Bars Be Stored?

Tool and die steel A2 bars should be stored in a dry, cool environment, away from moisture and corrosive elements. Ensure proper ventilation and avoid direct contact with the ground to prevent rust.

Tool and Die Steel A2 Bars Uses

A2 Tool and Die Steel Bars are extensively used for applications that demand tools with a mix of strength and accuracy of dimensions. Some common applications include blanking dies, forming dies, tools for stamping, shear blades, punches, and tools for trimming. A2 is used where tooling operations demand a balance between toughness and wear resistance. It‘s particularly beneficial where water or oil quenching would be unpractical because of distortion concerns. Due to its superior stability and resistance to cracking or chipping, A2 bars are also utilized in molds, cutting tools, and other critical parts.
