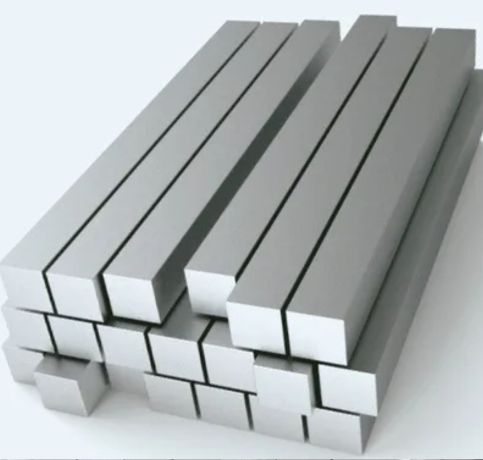

Luois Metals, a top-notch manufacturer and supplier based in Houston, USA, specializes in high-quality Inconel Square Bars that are designed to deliver outstanding strength, corrosion resistance, and durability even in the harshest environments. Crafted with precision and in line with international quality standards, these bars ensure excellent dimensional accuracy, a smooth surface finish, and long-lasting performance. Inconel Square Bars from Luois Metals are perfect for demanding sectors like aerospace, chemical processing, power generation, marine, and oil and gas, where the ability to withstand high temperatures, oxidation, and aggressive chemicals is essential for reliable operation.
These bars are primarily made from nickel and chromium, with added elements like iron and molybdenum, which provide remarkable resistance to oxidation, corrosion, and thermal stress. On the mechanical side, they boast high tensile and yield strength, toughness, and impressive fatigue resistance, even at elevated temperatures. Their square shape makes them easy to machine, fabricate, and integrate into specialized engineering components, ensuring both precision and durability in tough conditions.
| Standard | ASME, ASTM, GB, API, DIN, AISI, SUS, EN, UNS |
|---|---|
| Inconel Square Size | 33 x 30mm to 295 x 1066mm |
| Square Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Inconel Square Bar Finish | centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground & Black, Grinding |
| Inconel Square Bar Tolerance | H9, H8, H11, H10, H13K9, H12, K11, K10, K12 or as per clients’ requirements |
| Alloy Square bar Condition | Hardened & tempered, annealed |
| Alloy Square Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Inconel Square Bars Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Alloy Cold Drawn and Polish Square Bars | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Alloy Cold Drawn and Ground Square Bars | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished Square Bars | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Inconel Peeled and Square Bars | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
Inconel Square Bar is widely used in industries such as aerospace, chemical processing, power generation, and marine. It is ideal for components exposed to high temperatures and corrosive environments, including turbines, heat exchangers, and exhaust systems.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.louismetals.us
Inconel Square Bars find their way into heat exchangers, turbine components, chemical reactors, fasteners, shafts, and marine hardware. They’re also used in aerospace structures, power plant equipment, offshore platforms, and other high-temperature or corrosive applications that require long-term reliability. With their exceptional mechanical strength, thermal stability, and corrosion resistance, these bars are the go-to choice for industries that demand high-performance materials. Luois Metals stands by the quality, durability, and performance of its Inconel Square Bars for critical industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
