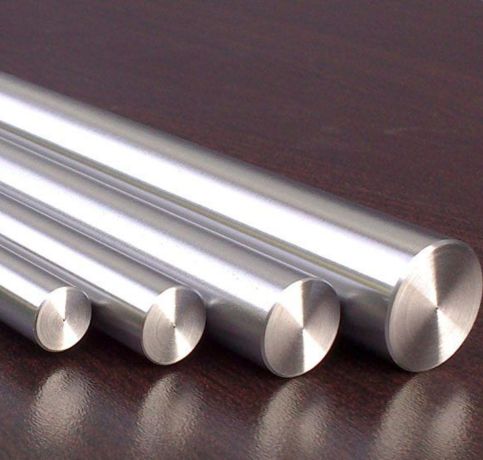

Louis Metals based in Houston, USA is a renowned manufacturer, supplier, and exporter of high-quality Inconel 600 Bars and Rods. With a strong commitment to excellence, we offer a wide range of bars and rods designed to meet diverse industrial requirements. Inconel 600 Bars and Rods are engineered with a precise composition of nickel, chromium, and iron, delivering exceptional resistance to corrosion, oxidation, and high-temperature environments. The high nickel content enhances their strength and toughness, while chromium contributes to their superior resistance to pitting and crevice corrosion. These properties make Inconel 600 Bars and Rods ideal for demanding applications in chemical processing, aerospace, and marine engineering.
Inconel DIN 2.4816 Bars and Rods are composed primarily of Nickel (Ni) 72-76%, with Chromium (Cr) 14-17%, and Iron (Fe) 6-10%. The alloy also contains small amounts of other elements, including Manganese (Mn) 1.0%, Silicon (Si) 0.5%, Carbon (C) 0.15%, and Copper (Cu) 0.5%. These elements are carefully balanced to provide exceptional resistance to oxidation and corrosion, especially in high-temperature environments. The high nickel content imparts excellent strength and toughness, while chromium contributes to oxidation resistance. Inconel 600 also contains trace amounts of other metals like titanium and aluminum, enhancing its overall performance.
Specification : ASTM B 166 / ASME SB 166
Dimensions : ASTM, ASME and API
Size : 5 mm To 500 mm Dia in 100 mm TO 6000 mm Length available with NACE MR 01-75.
Length : 100 mm To 3000 mm Long & Above
Finish : Bright, Polish & Black
Grade : Inconel 600 – UNS N06600
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Our Inconel 600 Round Bars conforms to NACE MR0175/ISO 15156
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
| Inconel 600 | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.015 max | 0.5 max | 0.5 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Temperature | Coefficient of Expansion | Electrical Resistivity | Thermal Conductivity | Specific Heat | |||||
|---|---|---|---|---|---|---|---|---|---|
| °F | °C | 10-6in/in•°F | mm/m•°C | ohm•circ•mil/ft | mL•m | Btu•in/ft2•h•°F | W/m•°C | Btu/lb•°F | J/kg•°C |
| -250 | -150 | 6 | 10.9 | – | – | 86 | 12.5 | 0.073 | 310 |
| -200 | -100 | 6.3 | 11.7 | – | – | 89 | 13.1 | 0.079 | 352 |
| -100 | -50 | 6.7 | 12.3 | – | – | 93 | 13.6 | 0.09 | 394 |
| 70 | 20 | 5.8 | 10.4 | 620 | 1.03 | 103 | 14.9 | 0.106 | 444 |
| 200 | 100 | 7.4 | 13.3 | 625 | 1.04 | 109 | 15.9 | 0.111 | 465 |
| 400 | 200 | 7.7 | 13.8 | 634 | 1.05 | 121 | 17.3 | 0.116 | 486 |
| 600 | 300 | 7.9 | 14.2 | 644 | 1.07 | 133 | 19 | 0.121 | 502 |
| 800 | 400 | 8.1 | 14.5 | 657 | 1.09 | 145 | 20.5 | 0.126 | 519 |
| 1000 | 500 | 8.4 | 14.9 | 680 | 1.12 | 158 | 22.1 | 0.132 | 536 |
| 1200 | 600 | 8.6 | 15.3 | 680 | 1.13 | 172 | 23.9 | 0.14 | 578 |
| 1400 | 700 | 8.9 | 15.8 | 680 | 1.13 | 186 | 25.7 | 0.145 | 595 |
| 1600 | 800 | 9.1 | 16.1 | 686 | 1.13 | 200 | 27.5 | 0.149 | 611 |
| 1800 | 900 | 9.3 | 16.4 | 698 | 1.15 | – | – | – | 628 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF600 | NA 13 | МНЖМц 28-2.5-1.5 | – | NiCr15Fe |
Yes, Inconel 600 bars/rods offer excellent resistance to high temperatures, maintaining strength and oxidation resistance in applications up to 2000°F (1093°C).
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.louismetals.us
Yes, Inconel 600 bars/rods exhibit exceptional resistance to oxidation, chlorides, and a wide range of acids, making them ideal for harsh chemical and marine environments.
Inconel Alloy UNS N06600 Bars and Rods are widely used in industries requiring high strength and excellent corrosion resistance in extreme environments. They are ideal for chemical processing applications, including reactors, heat exchangers, and piping systems. In aerospace, they are used in jet engine components, turbine seals, and exhaust systems due to their high-temperature stability. These bars and rods also perform well in marine engineering for components exposed to saltwater, and in power generation, especially in nuclear reactors and steam generators. Additional uses include food processing equipment, furnace components, and pulp and paper industries, where resistance to chemicals and heat is crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
