Louis Metals, based in Houston, USA, is a trusted manufacturer, supplier, and exporter of high-quality Inconel 617 Bars and Rods. Our extensive range caters to various industrial requirements, offering different shapes, sizes, and specifications. Inconel 617 Bars and Rods are premium products known for their excellent heat and oxidation resistance. Made from superior Inconel 617 material, these bars and rods deliver exceptional strength and durability in extreme environments, including high-temperature and chemical conditions. Their precise composition ensures superior performance, making them ideal for demanding applications in industries such as aerospace, power generation, and chemical processing.
Inconel Alloy DIN 2.4663 Bars and Rods are made from a high-performance alloy composed primarily of nickel, chromium, and cobalt. The typical composition includes approximately 50-55% nickel, 20-23% chromium, and 12-15% cobalt. It also contains smaller amounts of molybdenum (8-10%), iron (balance), and trace elements such as aluminum (1.0-1.5%) and titanium (1.0-1.5%). This unique blend of metals enhances the material’s excellent resistance to oxidation, corrosion, and high-temperature creep. Inconel 617’s high nickel content provides excellent resistance to extreme heat, while chromium offers superior oxidation resistance, making it ideal for high-performance applications in aggressive environments.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

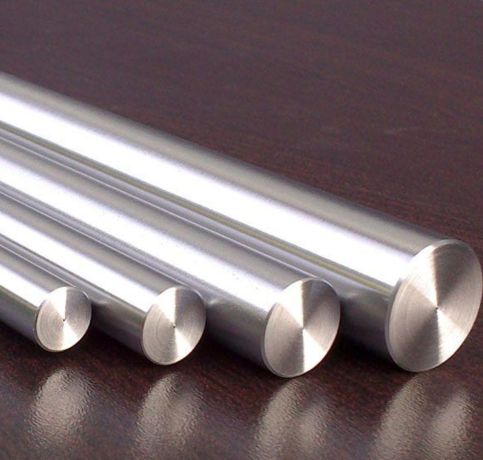

| 617 Inconel Round Bars size | Diameter: 3-~800mm |

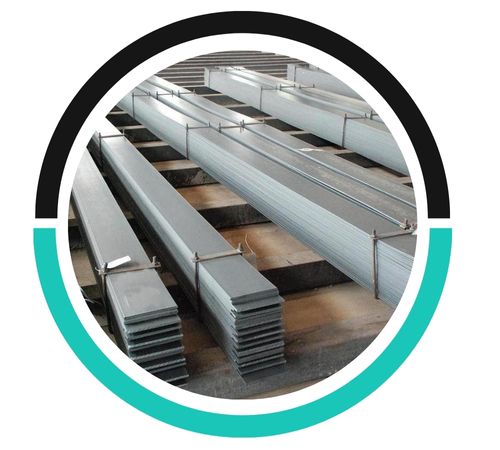

| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

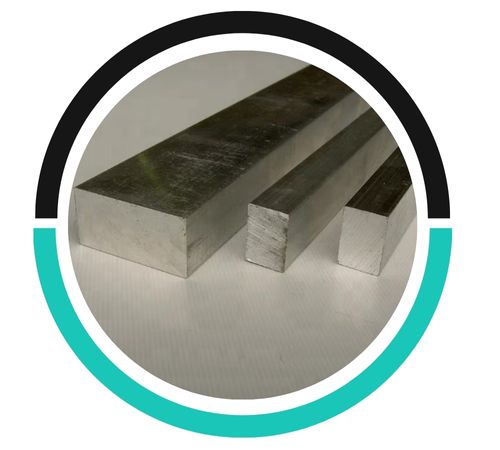

| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |
| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |

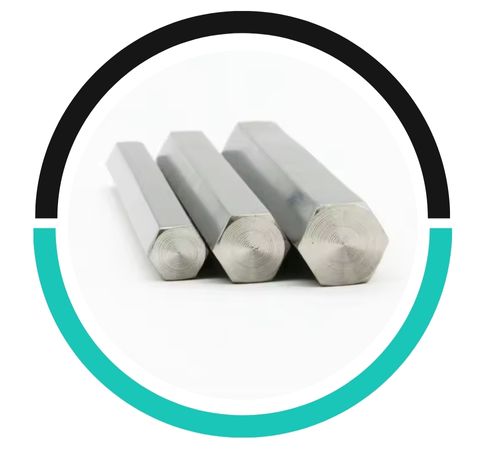

| Inconel 617 Hex Bar size | 2-100mm A/F |
| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

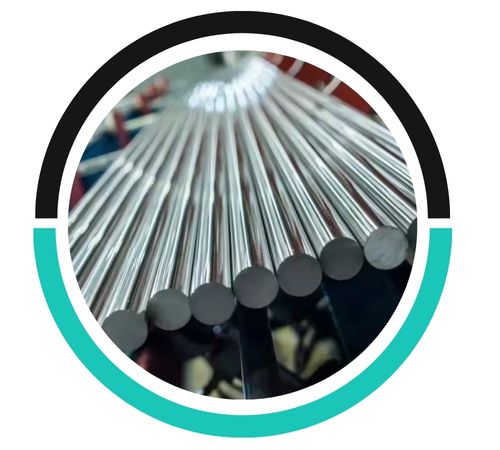

| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |

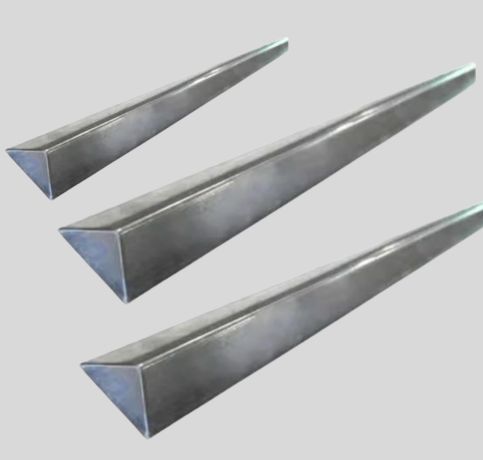

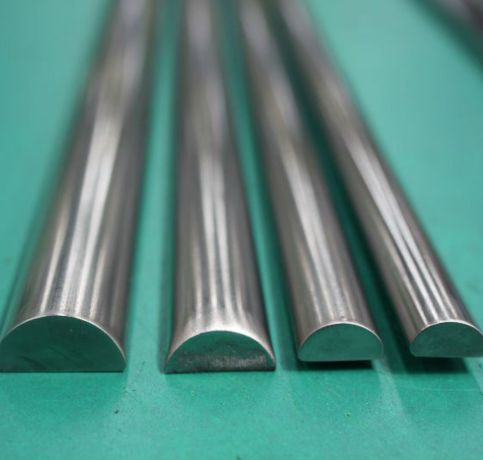

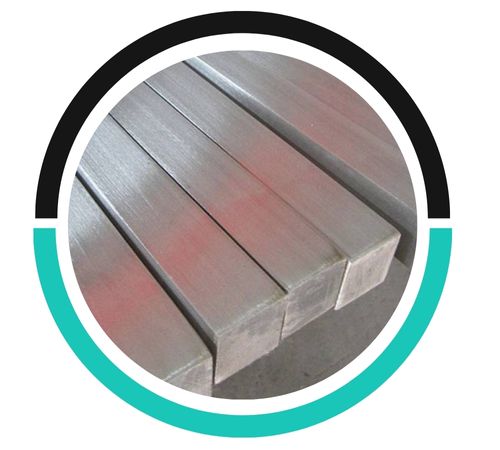

| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Yes, Inconel 617 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, they can be tailored in terms of size, dimensions, and specifications to meet specific industrial requirements.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.louismetals.us
Inconel UNS N06617 Bars and Rods are used across various industries due to their exceptional resistance to high temperatures, oxidation, and corrosion. In the aerospace sector, they are used in gas turbines, jet engines, and rocket engines, where high strength and temperature resistance are critical. In power generation, these bars and rods are essential for components like combustion chambers, gas turbines, and heat exchangers. In chemical processing, they are employed in reactors, furnaces, and heat exchangers exposed to corrosive and high-temperature environments. In marine applications, they are ideal for seawater cooling systems and marine engineering, offering resistance to pitting and crevice corrosion. Additionally, Inconel 617 Bars and Rods are used in industrial furnace components, such as furnace casings and thermowells, due to their ability to withstand extreme heat and stress.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
