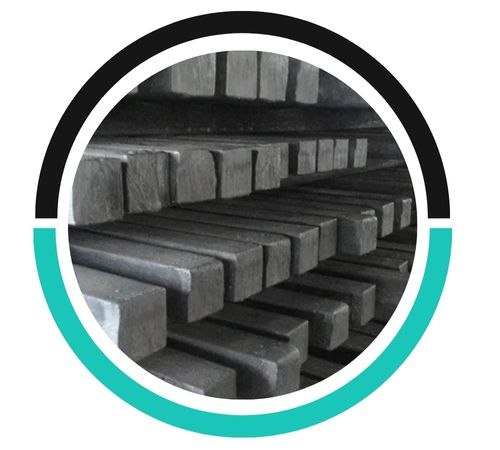

Louis Metals is a reliable manufacturer and supplier of Alloy Steel Square Bars, proudly based in Houston, USA. With a strong focus on quality and precision, they provide high-performance alloy steel products designed to meet the rigorous demands of various industries, including construction, automotive, oil and gas, and heavy machinery. Their cutting-edge manufacturing facilities and strict quality control processes ensure that every square bar adheres to both domestic and international standards. Known for their dependability, prompt delivery, and outstanding customer service, Louis Metals has become a go-to source for alloy steel square bars throughout the United States and beyond.

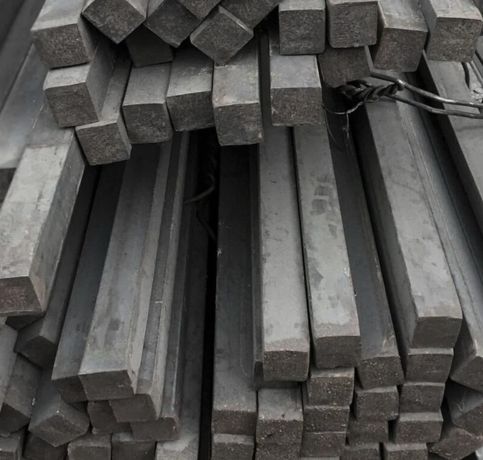

Alloy Steel Square Bars are made from a mix of elements like chromium, molybdenum, manganese, and nickel, which boost their strength, hardness, and resistance to wear and corrosion. Typical mechanical properties include a tensile strength ranging from 850 to 1000 MPa, yield strength between 650 and 850 MPa, and impressive fatigue resistance. These bars also provide excellent toughness and ductility, along with good machinability and weldability. The chemical and mechanical makeup can vary based on the grade and intended application, making them suitable for a wide array of demanding uses across different industrial sectors.

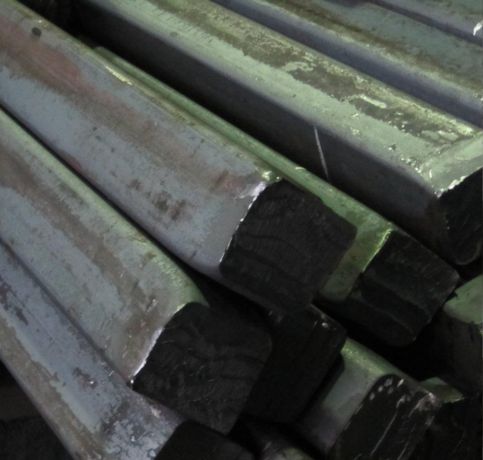

| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range | 5mm to 500mm Dia in 100mm to 6000mm Length |
| Diameter | 10 mm To 200 mm |
| Thickenss | 0.5mm to 500mm Diameter |
| High Speed Steel (HSS), HCHCR & OHNS in Grade | M2, M3, M35, M42, T-1, T-4, T-15, T-42, D2, D3, H11, H13, OHNS-01 & EN52 |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1000 mm Long To 6000 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |

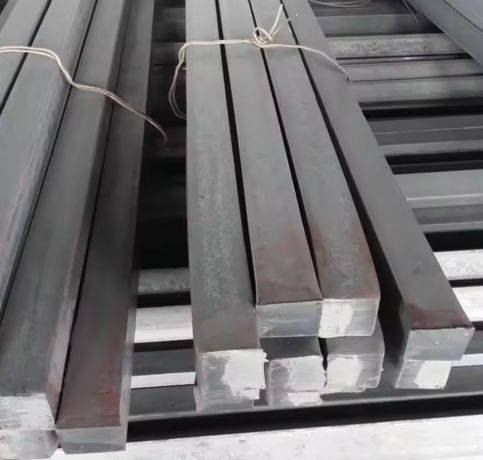

| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |

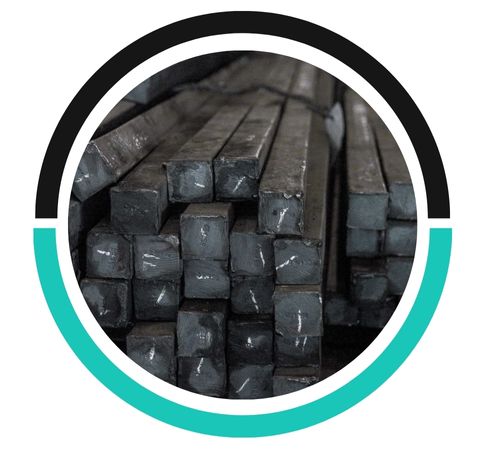

| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |

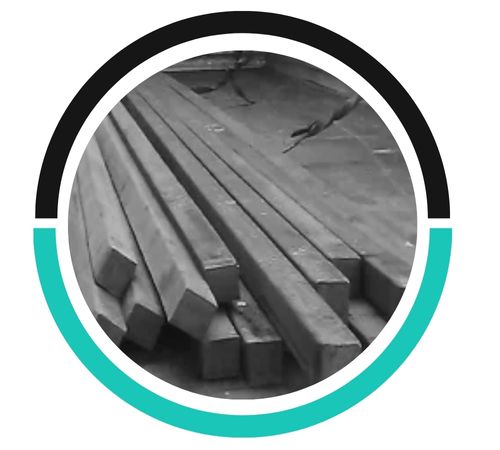

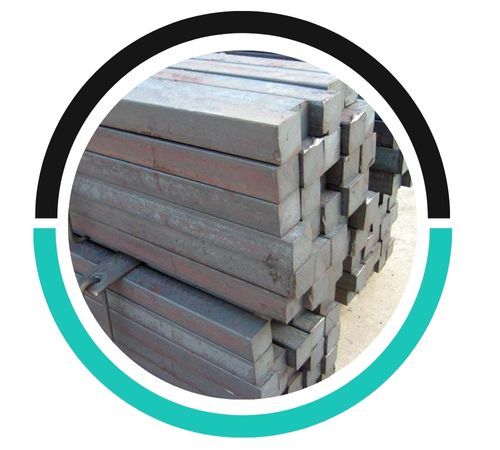

Alloy steel square bars are manufactured through processes like hot rolling, cold drawing, or forging. The steel is heated, shaped into square forms, and then cooled and finished to desired specifications.
Yes, alloy steel square bars are customizable in terms of size, length, and grade. They can be tailored to specific applications based on customer requirements and industry standards.
Thanks to their strength, durability, and ability to withstand extreme conditions, Alloy Steel Square Bars are commonly used in heavy engineering applications. They are perfect for crafting shafts, gears, axles, and other machine components that face high stress. In the construction field, these bars serve as structural reinforcements and frameworks. The oil and gas industry relies on them for drill collars and piping supports, while the automotive and aerospace sectors appreciate their high strength-to-weight ratio. Their versatility and performance make them indispensable in applications that require exceptional mechanical integrity and a long service life.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
