Luois Metals, a top-notch manufacturer and supplier located in Houston, USA, specializes in providing high-quality Rene 41 Bars and Rods, crafted for outstanding performance in extreme temperatures and high-stress situations. Rene 41 is a nickel-based superalloy celebrated for its remarkable strength, resistance to oxidation, and ability to withstand creep at elevated temperatures. Thanks to cutting-edge manufacturing techniques and rigorous quality control, Luois Metals guarantees precise dimensions, smooth finishes, and exceptional mechanical reliability. These Rene 41 Bars and Rods are perfect for aerospace, power generation, chemical processing, and high-performance engineering applications where strength and durability are essential.
The composition of Rene 41 Bars and Rods primarily includes nickel, chromium, cobalt, and molybdenum, with added titanium and aluminum to enhance precipitation hardening. This alloy boasts impressive mechanical properties, such as very high tensile and yield strength, superior creep resistance, and remarkable stability at temperatures reaching up to 1800°F (982°C). It also excels in oxidation and corrosion resistance, even in harsh operating conditions. When heat-treated, Rene 41 Bars and Rods further enhance their mechanical performance, maintaining structural integrity under thermal stress, making them one of the most dependable materials for demanding environments.
| Standards : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Thickness : | Range from .008″ to .0125″ |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form : | Bar, Rod |
| Tungsten Grades | HA 190 / HA 1925 / HA 195 / HE 390 / HE 3925 / HE 395 / HE 397 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
Yes, RENE 41 bar can be welded using suitable techniques like gas tungsten arc welding (TIG) or gas metal arc welding (MIG). Preheating and post-weld heat treatment are recommended for optimal results.

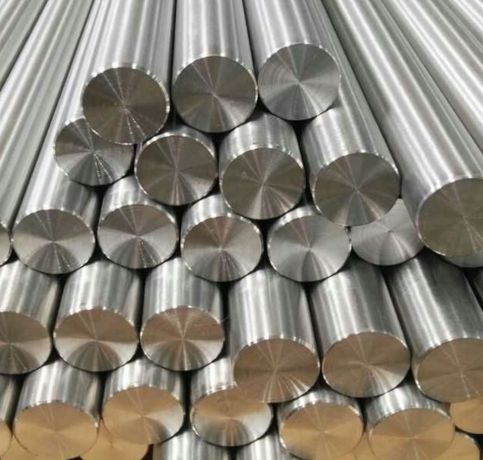

RENE 41 bars are available in sizes ranging from 6mm to 250mm diameter, with finishes including hot-rolled, cold-drawn, rough-turned, centerless ground, and polished options.
Yes, RENE 41 rods are susceptible to galvanic corrosion when coupled with dissimilar metals in an electrolyte, especially if the other metal is more anodic. Proper isolation is recommended.
Rene 41 Bars and Rods find extensive use in aerospace components like turbine blades, jet engine parts, afterburner components, and fasteners, thanks to their ability to endure extreme heat and stress. They’re also employed in power generation systems, chemical plants, and high-performance industrial equipment where resistance to oxidation and creep is vital. Moreover, these bars and rods are invaluable in defense and nuclear applications, providing a long service life in critical operations. Luois Metals ensures that their Rene 41 Bars and Rods comply with global standards, delivering reliable, durable, and high-performance solutions for industries operating under the toughest conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
