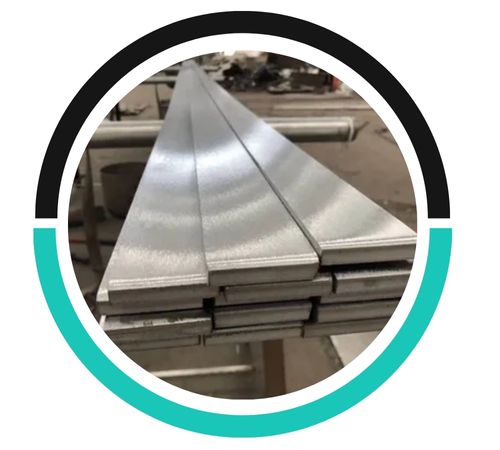

Luois Metals, a trusted manufacturer and supplier located in Houston, USA, specializes in high-quality Permalloy Bars and Rods. These products are crafted for applications that demand exceptional magnetic properties and durability. Permalloy, a nickel-iron magnetic alloy, is renowned for its outstanding magnetic permeability, low coercivity, and minimal energy loss in alternating magnetic fields. With a focus on precision and rigorous quality control, these bars and rods are perfect for sensitive electronic, electrical, and industrial uses. Luois Metals guarantees that its Permalloy Bars and Rods adhere to international standards, ensuring reliable performance in cutting-edge engineering and technology-driven sectors.
The composition of Permalloy Bars and Rods typically consists of about 80% nickel and 20% iron, with slight variations based on specific grades. This unique blend provides the alloy with extremely high magnetic permeability, low magnetic hysteresis loss, and excellent stability under different magnetic conditions. On the mechanical side, Permalloy boasts good strength, ductility, and machinability, making it easy to fabricate into precise components. The alloy’s remarkable combination of mechanical and magnetic properties makes it a vital material for industries where energy efficiency and accuracy in magnetic performance are essential.
| Standards : | — |
| Thickness : | Range from .008″ to .0125″ |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form : | Bar |
| Tungsten Grades | HA 190 / HA 1925 / HA 195 / HE 390 / HE 3925 / HE 395 / HE 397 |
| C | P | S | Mn | Si | Ni | Cr | Co | Mo | Cu | Fe | |
| 1J46 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.15-0.30 | 45-46.5 | – | – | – | ≤0.2 | Balance |
| 1J50 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 49-50.5 | – | – | – | ≤0.2 | Balance |
| 1J79 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.30-0.50 | 78.5-81.5 | – | – | 3.8-4.1 | ≤0.2 | Balance |
| 1J85 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 79-81 | – | – | 4.8-5.2 | ≤0.2 | Balance |
| Grade | Resisitivity (μΩ•m) | Desinty (g/cm3) | CuriePoint℃ | HighSaturatedmagneto-strictioncoefficient λθ/10-6 | Brinellhardness HBS | σbTensile Strength MPa | σsYieldStrength MPa | Elongation (%)δ | ||||
| unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | |||||
| 1J46 | 0.45 | 8.2 | 400 | 25 | 170 | 130 | 735 | 735 | 3 | |||
| 1J50 | 0.45 | 8.2 | 500 | 25 | 170 | 130 | 785 | 450 | 685 | 150 | 3 | 37 |
| 1J79 | 0.55 | 8.6 | 450 | 2 | 210 | 120 | 1030 | 560 | 980 | 150 | 3 | 50 |
| 1J85 | 0.56 | 8.75 | 400 | 0.5 | – | – | – | – | – | – | – | – |
Permalloy bars are generally not highly susceptible to galvanic corrosion, as they have good resistance to corrosion. However, when in contact with dissimilar metals, galvanic corrosion may still occur under certain conditions.
Yes, Permalloy bars can be welded, but due to their high nickel content, specialized welding techniques, such as TIG or laser welding, and proper precautions are necessary to maintain magnetic properties.

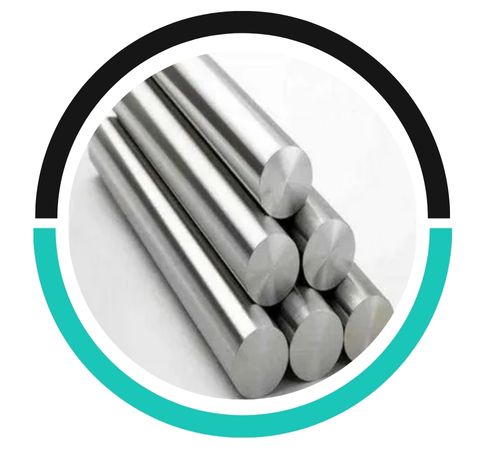

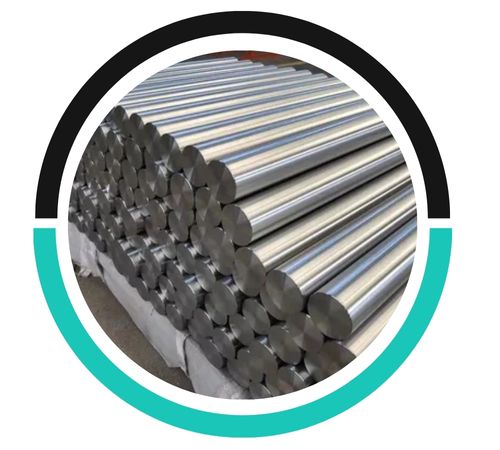

Permalloy rods are available in various sizes, typically ranging from 1/16" to 4" in diameter. Common finishes include bright, polished, or cold-drawn finishes, depending on the application requirements.
Permalloy Bars and Rods find extensive use in transformer cores, magnetic shielding, inductors, sensors, and various precision magnetic devices. They are also utilized in telecommunications, aerospace, and defense sectors, where dependable magnetic properties are crucial for optimal performance. Furthermore, Permalloy is employed in scientific instruments, audio-visual equipment, and advanced electronic systems to reduce magnetic interference and boost efficiency. Luois Metals ensures that its Permalloy Bars and Rods provide long-lasting reliability, high performance, and precision, making them the go-to choice for industries that require advanced magnetic solutions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
