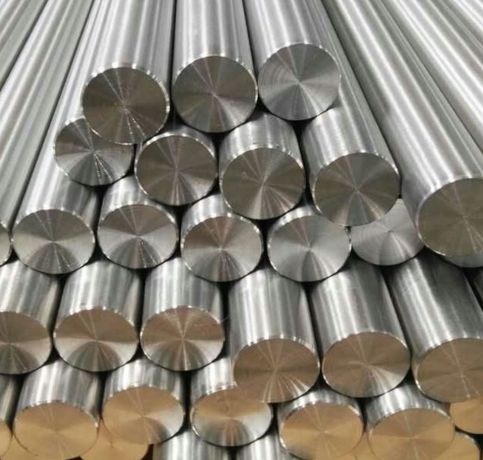

Luois Metals, located in Houston, USA, specializes in manufacturing and supplying top-notch Alloy C263 Bars and Rods, crafted for outstanding performance in high-temperature and high-stress settings. Known as Nimonic C263, this nickel-cobalt-chromium-molybdenum alloy strikes a perfect balance between oxidation resistance, thermal stability, and ease of fabrication, especially in applications reaching up to 982°C (1800°F). Luois Metals offers Alloy C263 bars and rods in various diameters and conditions, adhering to standards like AMS 5886 and ASTM B637. These bars are perfect for gas turbines, aerospace components, and industrial heat applications.
Alloy C263 Bars and Rods are primarily made up of nickel (the balance), 20% cobalt, 20% chromium, 6% molybdenum, along with trace amounts of titanium and aluminum that enhance precipitation strengthening. This alloy showcases impressive tensile strength (>900 MPa), yield strength (>600 MPa), and remarkable resistance to creep and stress rupture at high temperatures. Alloy C263 maintains its dimensional stability and oxidation resistance even at nearly 1000°C. It’s also weldable and easy to fabricate, making it an excellent choice for high-temperature applications where thermal fatigue and mechanical stress are significant concerns.
| Standards : | AMS 5872 |
| Size Range : | 0.015″ Thk up to 2″ Thk |
| Thickness : | Range from .008″ to .0125″ |
| Length : | 2m, 2.44m, 3m, or as required |
| Width : | 10-2500mm |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Nimonic 263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Grade | Material Sheet | Temperature °C | Yield Strength 0.2 % (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness HV |
| Nimonic 263 | Nimonic 263 Round Bar Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Nimonic 263 Round Bar Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | – | |
| Nimonic 263 Round Bar Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic 263 | 2.4650 | N07263 |
Alloy C263 Bars and Rods find extensive use in aerospace, turbomachinery, and industrial heating systems, where thermal stability, fatigue resistance, and oxidation protection are vital. They are commonly used in combustor components, turbine rings, transition ducts, jet engine parts, and hot gas path hardware. In the power generation and chemical sectors, Alloy C263 is utilized in furnace components, heat exchangers, and pressure vessels that endure high temperatures. Thanks to its superb weldability and mechanical performance, this alloy is a preferred choice for parts that need to operate reliably under high-temperature and cyclic load conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Louis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Houston, USA
