Louis Metals are well-known metals manufacturing and supplying businesses in Houston, USA, with a specialization for excellent quality products made of metal. Recognized for producing good-quality materials, they help their clients obtain the best materials available, which include Nitronic 60 bars and rods designed for notable corrosion resistance and durability in many environments. Nitronic 60 is an extremely high-strength alloy that shows exceptional resistance to oxidation and wear. It has the ability to withstand marine, aerospace, and industrial applications, which is why it’s highly in demand. Louis Metals maintains quality in every product produced to ensure cost-effective and reliable solutions for their clients across the industry.
Nitronic 60 bar and rod are a corrosion-resistant high strength of alloy. Nitronic 60 is mostly an iron (Fe) base containing some crucial elements like 20-23% chromium (Cr), 8-13% nickel (Ni), 13-17% manganese (Mn), along with small compositions of silicon, 1.00%, sulfur 0.01%, phosphorus 0.045%, carbon 0.08%, and nitrogen, 0.10-0.20%. This alloy provides excellent resistance to corrosion, pitting, and oxidation, and improved mechanical properties like high tensile strength up to 110,000 psi or 758 MPa, yield strength of 80,000 psi or 552 MPa, and good hardness. Nitronic 60 maintains strength at high temperatures, offering it the ability to function well in hostile environments like marine and chemical applications.
| Grade | Nitronic Alloy 60 (UNS No. S21800) Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |
| Nitronic 60 Square bar size | 4 to 100mm |
| Nitronic Alloy 60 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

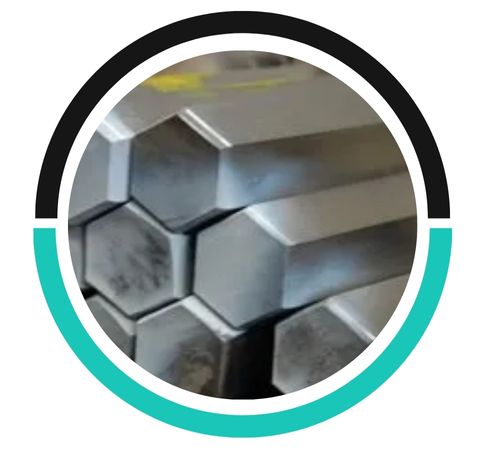

| Nitronic UNS S21800 Hex Bar size | 2-100mm A/F |
| Nitronic 60 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nitronic Alloy 60 Rectangles Size | 33 x 30mm to 295 x 1066mm |

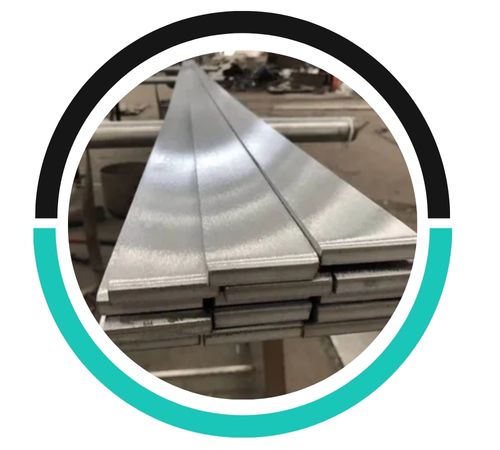

| Nitronic UNS S21800 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 60 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

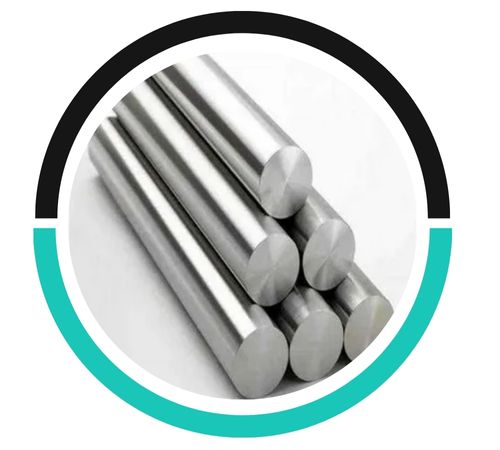

| Nitronic UNS S21800 Round bar size | Diameter: 3-~800mm |
| Nitronic 60 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic 60 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 60 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S21800 Technique | Nitronic 60 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 60 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 60 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 60 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 60 | 0.10 | 7.0 – 9.0 | 0.030 | 3.5 – 4.5 | 0.08 – 0.18 | 8.0 – 9.0 | 16.0 – 18.0 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Hardness MAX, Brinell | 241 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 60 Round Bars | S21800 | – |
Common finishes for Nitronic 60 Bar include mill finish, pickled and passivated, polished, brushed, and cold drawn. These finishes provide varying levels of smoothness, corrosion resistance, and aesthetic appeal.
The most common diameters for Nitronic XM 19 rod range from 0.125 inches (1/8") to 12 inches, with popular sizes including 1/4", 1/2", 1", 2", and 3".
Nitronic XM 19 rods typically come in standard sizes ranging from 1/8" to 3" in diameter, with lengths from 12" to 144". Custom sizes may also be available.
Nitronic 60 bars and rods are renown for their excellent corrosion resistivity, high strength, and good resistance to extreme conditions. The alloys find huge applications in industries such as aerospace, marine, and chemical processing. It is used due to resistance against pitting, crevice corrosion, and stress corrosion cracking in severe environments, including acids and saltwater. A few applications of these products include marine components, exhaust systems, heat exchangers, and shafts. The alloy retains strength at high temperatures, thus making it suitable for high-stress applications in the power generation industry and pulp and paper manufacturing.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
