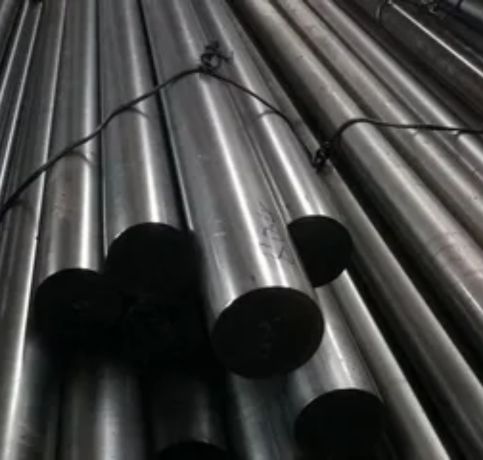

Luois Metals, located in Houston, USA, stands out as a top manufacturer and supplier of premium 1035 Round Bars, delivering dependable carbon steel solutions for a variety of industrial, construction, and automotive needs. SAE/AISI 1035 is a medium carbon steel celebrated for its impressive strength, toughness, and machinability. Luois Metals offers 1035 round bars in different diameters and conditions, including hot-rolled, cold-drawn, and normalized, all adhering to standards like ASTM A29. These bars are perfect for applications that require moderate strength and excellent wear resistance, such as shafts, bolts, gears, and automotive parts.
When it comes to composition and mechanical properties, 1035 Round Bars generally contain about 0.32–0.38% carbon and 0.60–0.90% manganese, with minimal phosphorus and sulfur. This blend results in moderate tensile strength (570–700 MPa) and yield strength around 370 MPa in the hot-rolled state, which can be enhanced through heat treatment. 1035 is known for its good machinability and formability, and it can be hardened via heat treatment or surface hardened through flame or induction methods. This alloy is ideal for applications that need moderate hardness, impact resistance, and wear performance while remaining easy to process.
|
Element |
Content |
|---|---|
|
Carbon, C |
0.310 – 0.380 % |
|
Iron, Fe |
98.63 – 99.09 % |
|
Manganese, Mn |
0.60 – 0.90 % |
|
Phosphorous, P |
0.040 % |
|
Sulfur, S |
0.050 % |
|
Properties |
Metric |
Imperial |
|---|---|---|
|
Tensile strength, ultimate |
585 MPa |
84800 psi |
|
Tensile strength, yield |
370 MPa |
53700 psi |
|
Modulus of elasticity |
190-210 GPa |
29700-30458 ksi |
|
Bulk modulus (typical for steel) |
140 GPa |
20300 ksi |
|
Shear modulus (typical for steel) |
80 GPa |
11600 ksi |
|
Poissons ratio |
0.27-0.30 |
0.27-0.30 |
|
Elongation at break (in 50 mm) |
30% |
30% |
|
Reduction of area |
53% |
53% |
|
Hardness, Brinell |
183 |
183 |
|
Hardness, Knoop (converted from Brinell hardness) |
204 |
204 |
|
Hardness, Rockwell B (converted from Brinell hardness) |
89 |
89 |
|
Hardness, Vickers (converted from Brinell hardness) |
192 |
192 |
|
Machinability (based on AISI 1212 steel. as 100 machinability) |
65 |
65 |
| EN Name | EN Number | DIN | JIS | UNI | BS |
|---|---|---|---|---|---|
| C35 | 1.0501 | C35, CM35 | S35C | C35 | 970 070M36 |
In terms of uses and applications, 1035 Round Bars are extensively utilized in the automotive, construction, and general engineering fields for parts that demand moderate strength and durability. Typical applications include axles, crankshafts, studs, gears, hydraulic shafts, and various machine components. Its versatility also makes it a great fit for agricultural equipment, forged tools, and mechanical linkages. When heat treated, 1035 steel provides enhanced wear resistance, making it suitable for medium-stress, repetitive-load applications. It’s often chosen as a cost-effective alternative to alloy steels for components that don’t require high-performance metallurgy but still need reliable strength and toughness.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
