Luois Metals, a trusted manufacturer and supplier located in Houston, USA, specializes in providing top-notch Nilo Alloy Bars and Rods. These products are specifically designed for industries that require thermal stability and controlled expansion. Nilo alloys, which are primarily made of nickel and iron, are celebrated for their low coefficients of thermal expansion, outstanding dimensional stability, and robust mechanical performance, even when faced with fluctuating temperatures. At Luois Metals, every Nilo Alloy Bar and Rod is crafted with meticulous attention to detail, following international standards to guarantee an exceptional surface finish, durability, and consistency. Industries such as aerospace, electronics, cryogenics, and precision engineering rely on these high-quality bars and rods.
The composition of Nilo Alloy Bars and Rods mainly includes nickel (between 29% and 50%), with iron making up the rest, along with carefully controlled amounts of cobalt, chromium, or other elements based on the specific grade. This distinctive blend results in remarkable strength, corrosion resistance, and dimensional stability across a broad temperature spectrum. Mechanically, they showcase impressive tensile strength, ductility, and toughness, all while maintaining stability through repeated thermal cycling. Their controlled expansion characteristics make them perfect for applications that demand precision and long-lasting reliability.
| Grade | Nilo Alloy Round Bar |
|---|---|

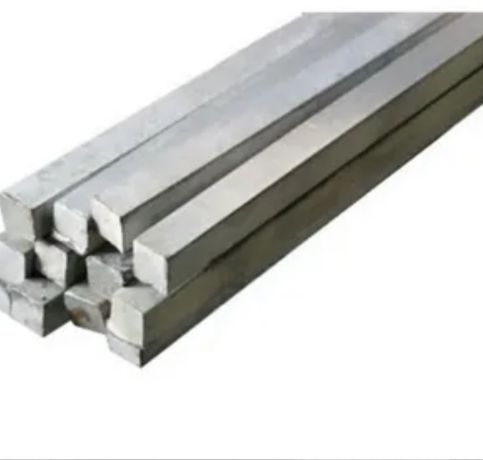

| Nilo Alloy Square bar size | 4 to 100mm |
| Nilo Alloy Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

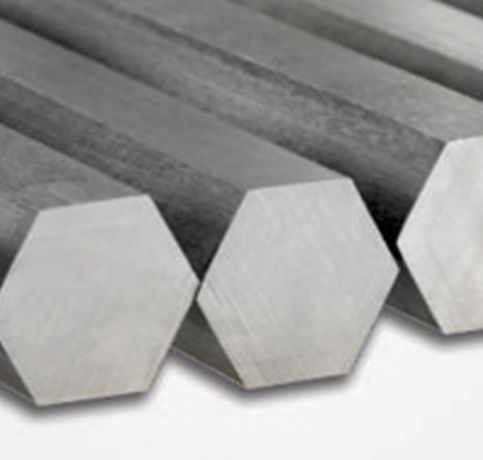

| Alloy Nilo Hex Bar size | 2-100mm A/F |
| Nilo Alloy Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nilo Alloy Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Alloy Nilo Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nilo Alloy Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nilo Alloy Section | 3.0 to 12.0mm thickness |

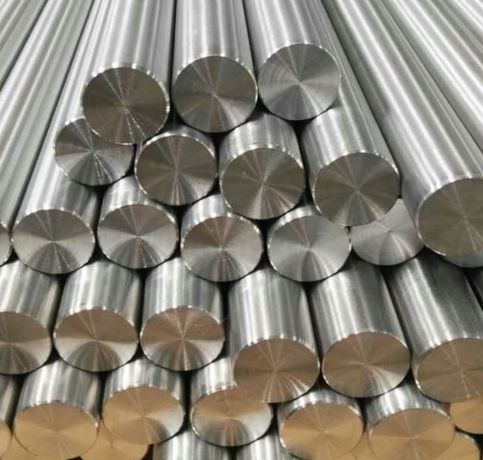

| Alloy Nilo Round bar size | Diameter: 3-~800mm |
| Nilo Alloy Billet Size | 1/2″ to 495mm Diameter |
| Nilo Alloy Round Bar Standard Dimensions | Diameter / Height: |
| Nilo Alloy Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nilo Alloy Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Alloy Nilo Technique | Nilo Alloy Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nilo Alloy Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

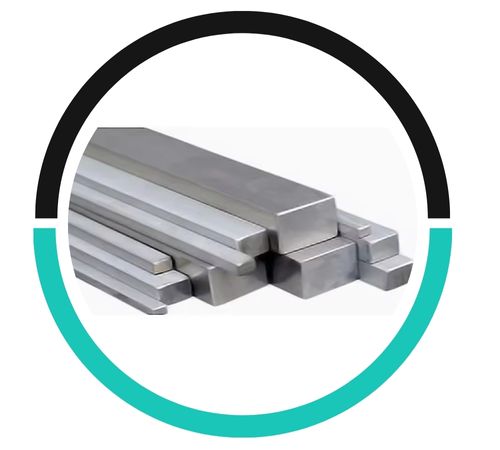

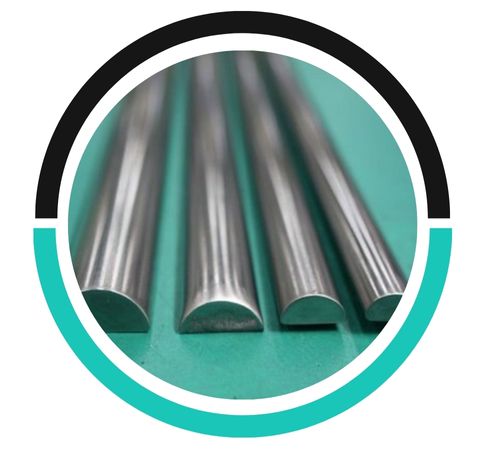

| Form | Nilo Alloy Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nilo Alloy Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | Mn | C | P | S | Si | Ni | Cr | Fe |
| Nilo Alloy 48 | 0.80 max | 0.05 max | 0.025 max | 0.025 max | 0.030 max | 48 | 0.250 max | Bal |
| Nilo Alloy K | 0.50 max | 0.04 max | 17.0 | 0.10 max | 0.20 | 29.0 | 0.20 max | 53.0 |
Properties | Metric | Imperial |
|---|---|---|
Modulus of elasticity | 130 GPa | 18900 ksi |
Tensile strength | 520MPa | 75.4 ksi |
Yield strength | 340 MPa | 49.3 ksi |
Nilo alloy bars and rods excel in high-temperature environments due to their excellent thermal stability, low thermal expansion, and resistance to thermal shock, making them ideal for high-precision applications.
Yes, Nilo Alloy rods can be customized in size and length to meet specific requirements. Manufacturers typically offer tailored solutions based on customer needs for various applications.
To maintain Nilo Alloy bars, clean regularly with a mild detergent, avoid harsh chemicals, store in a dry environment, and inspect for wear or corrosion. Lubricate if necessary.
Nilo Alloy Bars and Rods are widely used in aerospace engineering, glass-to-metal seals, electronic components, cryogenic systems, and measuring instruments where temperature sensitivity is crucial. They also find applications in the nuclear and power generation sectors, optical devices, and thermostat systems that require precise dimensions. Furthermore, their thermal and mechanical properties make them ideal for scientific equipment and sensitive assemblies. Luois Metals is committed to ensuring that its Nilo Alloy Bars and Rods deliver exceptional quality, reliability, and performance, making them the go-to choice for advanced technological applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
