Luois Metals, a well-respected manufacturer and supplier based in Houston, USA, specializes in providing high-quality Monel Forgings that are crafted for exceptional strength, durability, and impressive resistance to corrosion. Using cutting-edge forging techniques and adhering to strict quality standards, these components are built to endure tough and demanding conditions. Monel Forgings are known for their remarkable dimensional accuracy, toughness, and long-lasting performance, making them ideal for industries such as marine, aerospace, chemical, and oil and gas. With their unique blend of mechanical strength and corrosion resistance, Luois Metals ensures that its Monel Forgings meet global standards for reliability and excellence.
These Monel Forgings primarily consist of nickel and copper, along with added elements like iron and manganese that boost their strength and toughness. This specific composition offers outstanding resistance to seawater, brine, acids, and alkaline environments while maintaining solid mechanical stability. They showcase high tensile and yield strength, excellent hardness, ductility, and thermal conductivity. The forged structure enhances grain flow and fatigue resistance, ensuring they remain durable under high pressure and fluctuating temperatures, making them perfect for critical industrial applications.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel 400, Monel K500
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |

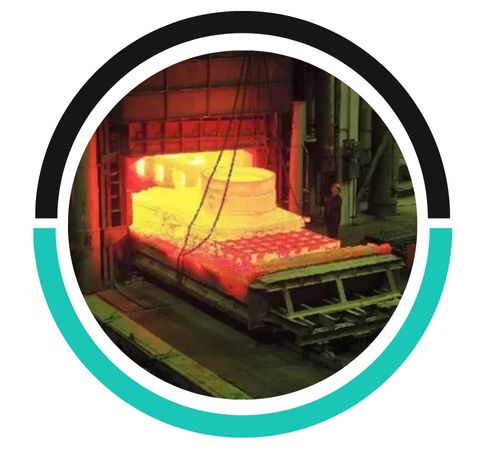

The forging process for Monel typically takes several hours, depending on the size and complexity of the component. It involves heating, shaping, and cooling, with each stage carefully controlled to ensure quality.

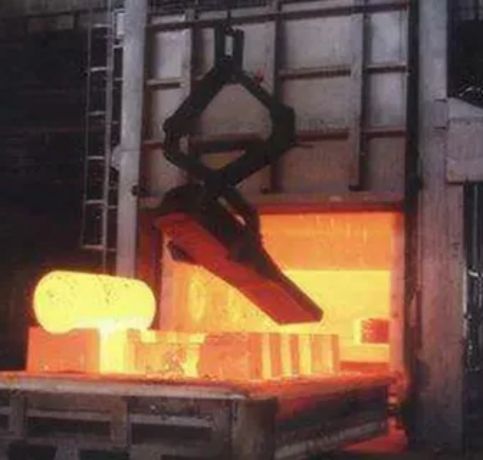

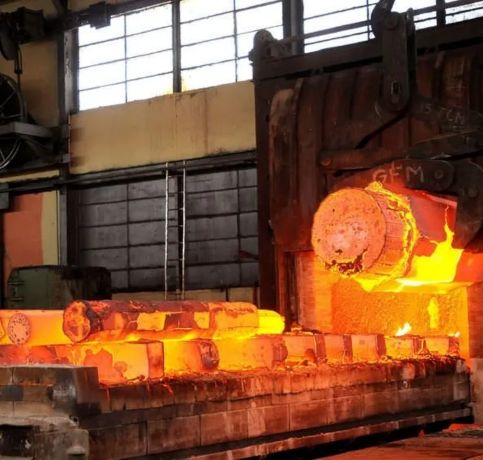

The most suitable forging techniques for Monel alloys include open-die and closed-die forging. These methods ensure precise shaping and maintain the material's strength and corrosion resistance during the process.
Monel Forgings find extensive use in pump shafts, marine propeller shafts, fasteners, valve components, chemical processing equipment, and heat exchangers. They’re also utilized in desalination plants, shipbuilding, aerospace assemblies, and offshore engineering, where corrosion resistance and mechanical reliability are essential. Their capability to perform in both high-temperature and corrosive environments makes them vital for long-term, heavy-duty applications. Luois Metals is committed to delivering superior quality, strength, and precision in its Monel Forgings, providing industries with reliable solutions for their most challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
