Luois Metals, a top-notch manufacturer and supplier based in Houston, USA, specializes in high-quality Monel 400 Bars and Rods. These products are designed to deliver exceptional strength, durability, and resistance to corrosion. Renowned for their impressive performance in tough environments, these bars and rods are crafted with precision to meet international standards, ensuring a smooth surface finish, accurate dimensions, and a long lifespan. Monel 400 Bars and Rods from Luois Metals are perfect for critical applications across various industries, including marine, chemical processing, oil and gas, aerospace, and power generation, where mechanical reliability and corrosion resistance are vital for operational success.
The composition of Monel 400 Bars and Rods primarily includes nickel and copper, with small amounts of iron and manganese added to boost mechanical strength and toughness. This unique blend offers remarkable resistance to seawater, brine, acids, and alkaline solutions while maintaining excellent tensile strength, ductility, and hardness. They perform reliably even under high temperatures and pressures, and their metallurgical stability ensures they last in corrosive and demanding industrial settings.
| Standard | ASTM B164, ASME SB164 |

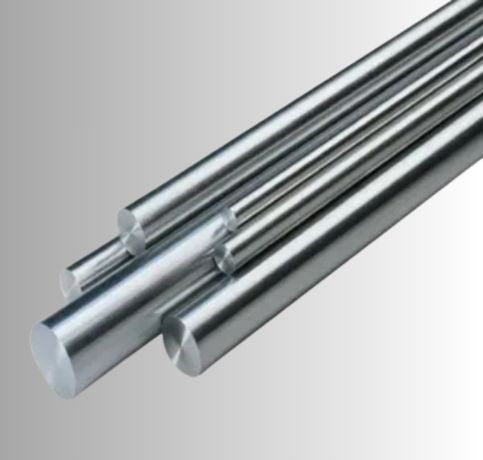

| Round Bar Size | 3mm~ 800mm |

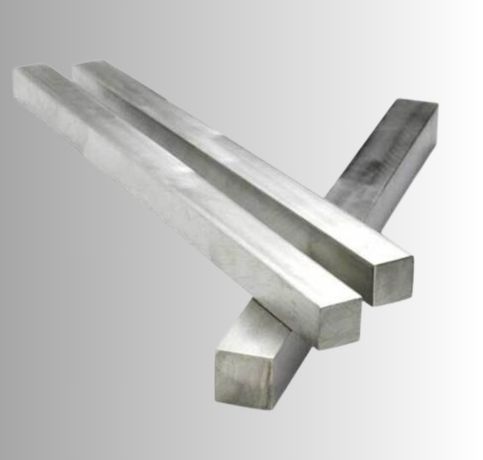

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

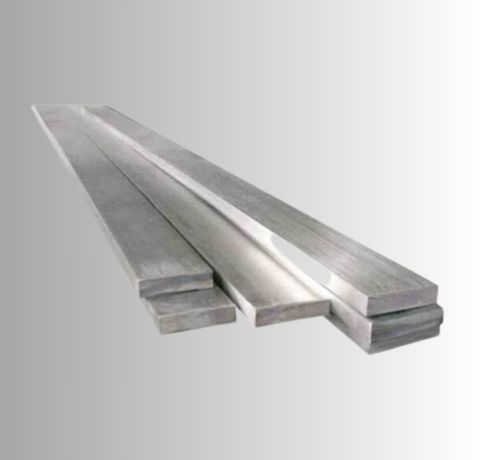

| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN |
| Monel 400 | 2.4360 | N04400 | МНЖМц 28-2,5-1,5 | NU-30M | NW 4400 | NA 13 | NiCu30Fe |
Yes, Monel Alloy 400 Bars are highly corrosion-resistant, especially in seawater and acidic environments. Their excellent resistance to pitting, crevice corrosion, and stress corrosion cracking makes them ideal for harsh conditions.
Yes, Monel 400 rods can be customized in size and length according to specific requirements. They are available in various diameters and lengths to suit different industrial applications.
Monel Alloy 400 Bars and Rods perform well in high-temperature environments, maintaining strength and resistance to oxidation. They can withstand temperatures up to 1,000°F (538°C) without significant degradation.
These Monel 400 Bars and Rods are commonly used in making pump shafts, fasteners, valve components, heat exchangers, marine hardware, and equipment for chemical processing. They’re also utilized in shipbuilding, offshore engineering, desalination plants, oil refineries, and aerospace assemblies, where corrosion resistance and mechanical performance are crucial. Thanks to their excellent machinability and toughness, they are well-suited for heavy-duty and custom-engineered components. Luois Metals stands by the quality, durability, and performance of its Monel 400 Bars and Rods, making them the go-to choice for industries that need high-performance, corrosion-resistant materials.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
