Luois Metals stands out as a reliable manufacturer and supplier of Incoloy 925 Bars and Rods right in Houston, USA. They specialize in delivering top-notch nickel-iron-chromium alloys, enhanced with molybdenum, copper, and titanium, ensuring exceptional strength and resistance to corrosion. Incoloy 925 is a precipitation-hardened alloy that beautifully marries the toughness and corrosion resistance typical of Incoloy alloys with the impressive strength gained through heat treatment. At Luois Metals, they uphold rigorous quality standards and precision in manufacturing, making these bars and rods perfect for critical industrial applications. You’ll find them widely utilized in sectors like oil and gas, marine, chemical processing, and power generation, where reliability is non-negotiable.
The composition of Incoloy 925 Bars and Rods includes nickel, iron, and chromium, with notable amounts of molybdenum, copper, and titanium. This unique blend offers remarkable resistance to sulfide stress cracking, pitting, and crevice corrosion, especially in chloride-rich environments. The alloy showcases excellent tensile and yield strength, high fatigue resistance, and outstanding toughness, even under extreme pressures. Titanium plays a key role in precipitation hardening, boosting structural stability, while molybdenum and copper enhance resistance to reducing agents and strong acids. These impressive mechanical properties make Incoloy 925 a fantastic choice for high-stress applications.
| Standards | ASTM B805, ASME SB 805 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

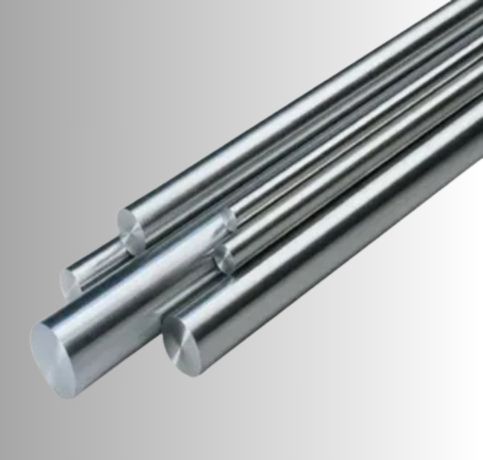

| 925 Incoloy Round Bars size | Diameter: 3-~800mm |
| Incoloy 925 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Incoloy 925 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Incoloy 925 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

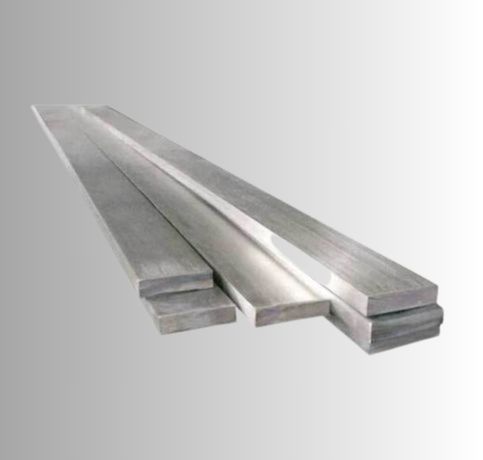

| Alloy 925 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Incoloy 925 Billet Size | 1/2 to 495mm Diameter |
| Incoloy 925 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |
| Incoloy 925 Hex Bar size | 2-100mm A/F |
| Incoloy 925 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |
| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| Grade | Ni | Cr | Fe | Si | Mo | Cu | Mn | C | S | Al |
| Incoloy 925 | 42 – 46 | 19.55 – 22.5 | 22 min | 0.5 max | 2.5 – 3.5 | 1.5 – 3.0 | 1.0 max | 0.03 max | 0.03 max | 0.1 – 0.5 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1343°C | 650 | 300 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Incoloy 925 | – | N09925 |
Yes, Incoloy 925 rods are highly corrosion-resistant, particularly in aggressive environments such as acidic and chloride-containing media. Their composition includes nickel, iron, and chromium, enhancing their resistance to corrosion, pitting, and stress corrosion cracking.
Yes, Incoloy 925 bars can be customized in size and length to meet specific requirements. They are available in various dimensions and can be tailored for different industrial applications.
Incoloy 925 bars perform exceptionally well in high-temperature environments, maintaining strength and stability. Their high nickel and chromium content provides excellent resistance to oxidation and carburization at elevated temperatures.
Incoloy 925 Bars and Rods find their place in industries where strength and corrosion resistance are paramount. In the oil and gas sector, they’re used in downhole equipment, valves, tubulars, and hangers that need to endure sour gas and seawater exposure. In marine applications, you’ll see them in shafts, fasteners, and structural components that face saltwater corrosion. In chemical processing, they’re essential for piping, heat exchangers, and reactors that handle aggressive chemicals. Power generation and desalination plants also depend on Incoloy 925 for components that must withstand high pressure, corrosive environments, and a long service life.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
